Jeoneo CAS Al-Cu Bimetal Compression Cable Lugs
Jeoneo CAS Al-Cu Bimetal Compression Cable Lugs
Friction-welded aluminium-copper bimetal compression cable lugs (Type CAS) for connecting 16 to 1000 mm² aluminium cables to copper terminals; S suffix = square type.
Key features
- Friction-welded Al (99.5%) barrel and Cu (99.9%) palm

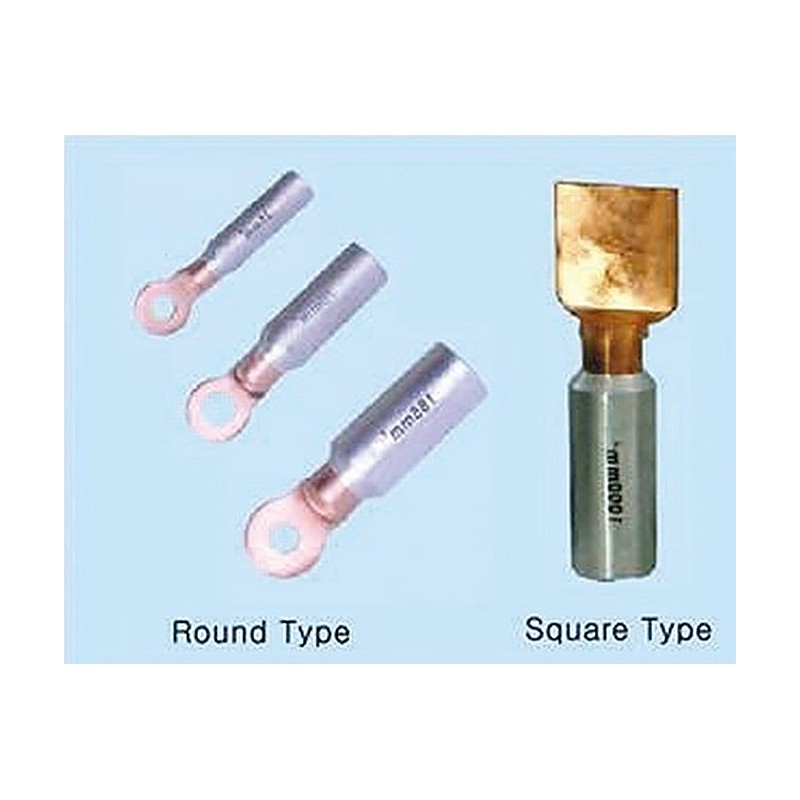

- Round type; square type CAS 630S-1000S
- Made to order on customer request
Specifications
| Material | Al ≥99.5%, Cu ≥99.9% |
|---|---|
| Joining | Friction welded |
| Stud size | M13 |
| CAS 16 | Palm: Round | Wire range: 6 AWG / 16 mm² | Dimensions (mm): W 24, D 16, d 5.5, L 90, L1 42, T 4 | |
| CAS 25 | Palm: Round | Wire range: 4 AWG / 25 mm² | Dimensions (mm): W 24, D 16, d 6.5, L 90, L1 42, T 4 | |
| CAS 35 | Palm: Round | Wire range: 2 AWG / 35 mm² | Dimensions (mm): W 24, D 16, d 8, L 90, L1 42, T 4 | |
| CAS 50 | Palm: Round | Wire range: 1 AWG / 50 mm² | Dimensions (mm): W 24, D 20, d 9, L 92, L1 43, T 5 | |
| CAS 70 | Palm: Round | Wire range: 2/0 AWG / 70 mm² | Dimensions (mm): W 24, D 20, d 11, L 92, L1 43, T 5 | |
| CAS 95 | Palm: Round | Wire range: 3/0 AWG / 95 mm² | Dimensions (mm): W 24, D 20, d 12.5, L 92, L1 43, T 5 | |
| CAS 120 | Palm: Round | Wire range: 250 Kcmil / 120 mm² | Dimensions (mm): W 30, D 25, d 13.5, L 117, L1 60, T 6 | |
| CAS 150 | Palm: Round | Wire range: 300 Kcmil / 150 mm² | Dimensions (mm): W 30, D 25, d 15.5, L 117, L1 60, T 6 | |
| CAS 185 | Palm: Round | Wire range: 350 Kcmil / 185 mm² | Dimensions (mm): W 35, D 32, d 17, L 124, L1 60, T 6.5 | |
| CAS 240 | Palm: Round | Wire range: 500 Kcmil / 240 mm² | Dimensions (mm): W 35, D 32, d 19.5, L 124, L1 60, T 6.5 | |
| CAS 300 | Palm: Round | Wire range: 600 Kcmil / 300 mm² | Dimensions (mm): W 36, D 34, d 22.5, L 130, L1 62, T 7 | |
| CAS 400 | Palm: Round | Wire range: 800 Kcmil / 400 mm² | Dimensions (mm): W 36, D 40, d 26, L 152, L1 80, T 8 | |
| CAS 500 | Palm: Round | Wire range: 1000 Kcmil / 500 mm² | Dimensions (mm): W 36, D 40, d 29, L 152, L1 80, T 8 | |
| CAS 630 | Palm: Round | Wire range: 1250 Kcmil / 630 mm² | Dimensions (mm): W 50, D 54, d 34, L 165, L1 70, T 10 | |
| CAS 800 | Palm: Round | Wire range: 1600 Kcmil / 800 mm² | Dimensions (mm): W 50, D 54, d 39, L 230, L1 115, T 10 | |
| CAS 1000 | Palm: Round | Wire range: 2000 Kcmil / 1000 mm² | Dimensions (mm): W 50, D 65, d 44, L 230, L1 115, T 10 | |
| CAS 630S | Palm: Square | Wire range: 1250 Kcmil / 630 mm² | Dimensions (mm): W 50, D 54, d 34, L 165, L1 70, T 10 | |
| CAS 800S | Palm: Square | Wire range: 1600 Kcmil / 800 mm² | Dimensions (mm): W 50, D 54, d 39, L 230, L1 115, T 10 | |
| CAS 1000S | Palm: Square | Wire range: 2000 Kcmil / 1000 mm² | Dimensions (mm): W 50, D 65, d 44, L 230, L1 115, T 10 |
Cable LugsJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo CAS Al-Cu Bimetal Compression Cable Lugs
Available part numbers (19)
CAS 16, CAS 25, CAS 35, CAS 50, CAS 70, CAS 95, CAS 120, CAS 150, CAS 185, CAS 240 + 9 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| CAS 16 | Palm: Round | Wire range: 6 AWG / 16 mm² | Dimensions (mm): W 24, D 16, d 5.5, L 90, L1 42, T 4 | ||
| CAS 25 | Palm: Round | Wire range: 4 AWG / 25 mm² | Dimensions (mm): W 24, D 16, d 6.5, L 90, L1 42, T 4 | ||
| CAS 35 | Palm: Round | Wire range: 2 AWG / 35 mm² | Dimensions (mm): W 24, D 16, d 8, L 90, L1 42, T 4 | ||
| CAS 50 | Palm: Round | Wire range: 1 AWG / 50 mm² | Dimensions (mm): W 24, D 20, d 9, L 92, L1 43, T 5 | ||
| CAS 70 | Palm: Round | Wire range: 2/0 AWG / 70 mm² | Dimensions (mm): W 24, D 20, d 11, L 92, L1 43, T 5 | ||
| CAS 95 | Palm: Round | Wire range: 3/0 AWG / 95 mm² | Dimensions (mm): W 24, D 20, d 12.5, L 92, L1 43, T 5 | ||
| CAS 120 | Palm: Round | Wire range: 250 Kcmil / 120 mm² | Dimensions (mm): W 30, D 25, d 13.5, L 117, L1 60, T 6 | ||
| CAS 150 | Palm: Round | Wire range: 300 Kcmil / 150 mm² | Dimensions (mm): W 30, D 25, d 15.5, L 117, L1 60, T 6 | ||
| CAS 185 | Palm: Round | Wire range: 350 Kcmil / 185 mm² | Dimensions (mm): W 35, D 32, d 17, L 124, L1 60, T 6.5 | ||
| CAS 240 | Palm: Round | Wire range: 500 Kcmil / 240 mm² | Dimensions (mm): W 35, D 32, d 19.5, L 124, L1 60, T 6.5 | ||
| CAS 300 | Palm: Round | Wire range: 600 Kcmil / 300 mm² | Dimensions (mm): W 36, D 34, d 22.5, L 130, L1 62, T 7 | ||
| CAS 400 | Palm: Round | Wire range: 800 Kcmil / 400 mm² | Dimensions (mm): W 36, D 40, d 26, L 152, L1 80, T 8 | ||
| CAS 500 | Palm: Round | Wire range: 1000 Kcmil / 500 mm² | Dimensions (mm): W 36, D 40, d 29, L 152, L1 80, T 8 | ||
| CAS 630 | Palm: Round | Wire range: 1250 Kcmil / 630 mm² | Dimensions (mm): W 50, D 54, d 34, L 165, L1 70, T 10 | ||
| CAS 800 | Palm: Round | Wire range: 1600 Kcmil / 800 mm² | Dimensions (mm): W 50, D 54, d 39, L 230, L1 115, T 10 | ||
| CAS 1000 | Palm: Round | Wire range: 2000 Kcmil / 1000 mm² | Dimensions (mm): W 50, D 65, d 44, L 230, L1 115, T 10 | ||
| CAS 630S | Palm: Square | Wire range: 1250 Kcmil / 630 mm² | Dimensions (mm): W 50, D 54, d 34, L 165, L1 70, T 10 | ||
| CAS 800S | Palm: Square | Wire range: 1600 Kcmil / 800 mm² | Dimensions (mm): W 50, D 54, d 39, L 230, L1 115, T 10 | ||
| CAS 1000S | Palm: Square | Wire range: 2000 Kcmil / 1000 mm² | Dimensions (mm): W 50, D 65, d 44, L 230, L1 115, T 10 |
