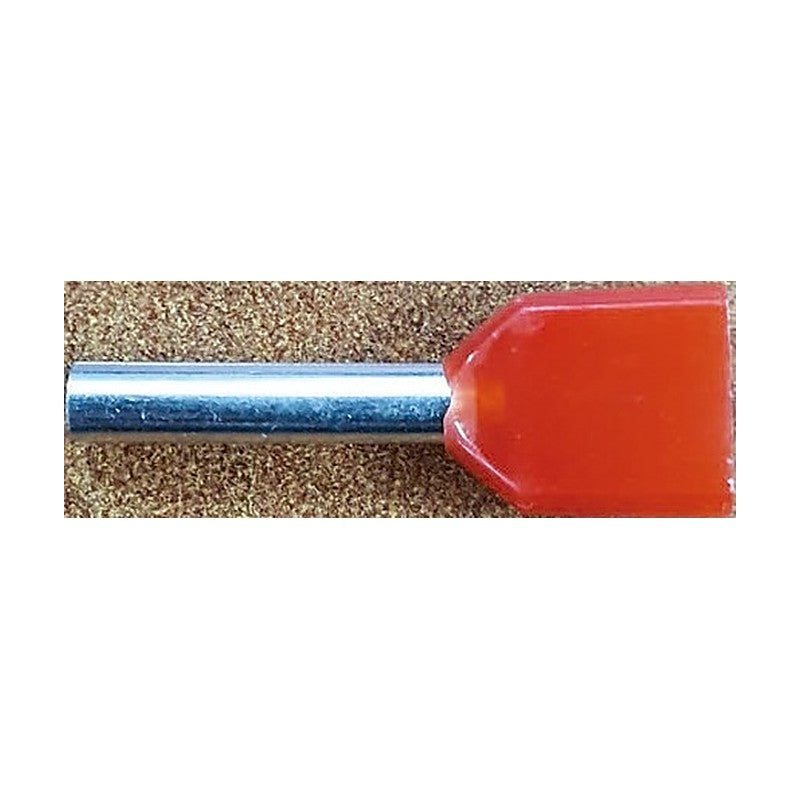

Jeoneo CT Insulated Twin Wire Ferrules

Jeoneo CT Insulated Twin Wire Ferrules

Nylon-insulated twin-entry wire ferrules for terminating two conductors of 0.5 to 6 mm² in one terminal point.

Key features

  • Insulation housing conforms to German color code requirements
  • Temperature range -55 to +105 °C
  • CT215010 does not have UL certification

Specifications

Material Electrolytic copper
Surface Tin plated
Insulation Nylon
Temperature range -55 to +105 °C
Pack qty 1,000
Jeoneo CT Insulated Twin Wire Ferrules
CT205008 Wire range: 2×#20 AWG / 2×0.50 mm² | Color: ORANGE | Dimensions (mm): d1 1.8, d2 2.5/4.7, L 15.0, P 8.0, S1 0.15, S2 0.25
CT207508 Wire range: 2×#18 AWG / 2×0.75 mm² | Color: WHITE | Dimensions (mm): d1 2.1, d2 2.8/5.0, L 15.0, P 8.0, S1 0.15, S2 0.25
CT207510 Wire range: 2×#18 AWG / 2×0.75 mm² | Color: WHITE | Dimensions (mm): d1 2.1, d2 2.8/5.0, L 17.0, P 10.0, S1 0.15, S2 0.25
CT210008 Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 15.0, P 8.0, S1 0.15, S2 0.25
CT210010 Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 17.0, P 10.0, S1 0.15, S2 0.30
CT210012 Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 19.0, P 12.0, S1 0.15, S2 0.30
CT215008 Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 16.0, P 8.0, S1 0.15, S2 0.30
CT215010 Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 18.0, P 10.0, S1 0.15, S2 0.30
CT215012 Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 20.2, P 12.0, S1 0.15, S2 0.30
CT225010 Wire range: 2×#14 AWG / 2×2.50 mm² | Color: BLUE | Dimensions (mm): d1 3.2, d2 4.2/7.8, L 19.5, P 10.0, S1 0.20, S2 0.30
CT225013 Wire range: 2×#14 AWG / 2×2.50 mm² | Color: BLUE | Dimensions (mm): d1 3.2, d2 4.2/7.8, L 21.5, P 13.0, S1 0.20, S2 0.30
CT240012 Wire range: 2×#12 AWG / 2×4.00 mm² | Color: GRAY | Dimensions (mm): d1 4.2, d2 4.98/8.8, L 23.0, P 12.0, S1 0.20, S2 0.40
CT260014 Wire range: 2×#10 AWG / 2×6.00 mm² | Color: BLACK | Dimensions (mm): d1 5.3, d2 6.9/10.0, L 26.0, P 14.0, S1 0.20, S2 0.40
Wire FerrulesJeoneo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo CT Insulated Twin Wire Ferrules

Brand Jeoneo·Wire Ferrules

Available part numbers (13)

CT205008, CT207508, CT207510, CT210008, CT210010, CT210012, CT215008, CT215010, CT215012, CT225010 + 3 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo CT Insulated Twin Wire Ferrules
0 selected
RFQ List (0)
Product codeSpec
CT205008Wire range: 2×#20 AWG / 2×0.50 mm² | Color: ORANGE | Dimensions (mm): d1 1.8, d2 2.5/4.7, L 15.0, P 8.0, S1 0.15, S2 0.25
CT207508Wire range: 2×#18 AWG / 2×0.75 mm² | Color: WHITE | Dimensions (mm): d1 2.1, d2 2.8/5.0, L 15.0, P 8.0, S1 0.15, S2 0.25
CT207510Wire range: 2×#18 AWG / 2×0.75 mm² | Color: WHITE | Dimensions (mm): d1 2.1, d2 2.8/5.0, L 17.0, P 10.0, S1 0.15, S2 0.25
CT210008Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 15.0, P 8.0, S1 0.15, S2 0.25
CT210010Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 17.0, P 10.0, S1 0.15, S2 0.30
CT210012Wire range (mm²): 2×1.00 | Color: YELLOW | Dimensions (mm): d1 2.35, d2 3.4/5.4, L 19.0, P 12.0, S1 0.15, S2 0.30
CT215008Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 16.0, P 8.0, S1 0.15, S2 0.30
CT215010Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 18.0, P 10.0, S1 0.15, S2 0.30
CT215012Wire range: 2×#16 AWG / 2×1.50 mm² | Color: RED | Dimensions (mm): d1 2.6, d2 3.6/6.6, L 20.2, P 12.0, S1 0.15, S2 0.30
CT225010Wire range: 2×#14 AWG / 2×2.50 mm² | Color: BLUE | Dimensions (mm): d1 3.2, d2 4.2/7.8, L 19.5, P 10.0, S1 0.20, S2 0.30
CT225013Wire range: 2×#14 AWG / 2×2.50 mm² | Color: BLUE | Dimensions (mm): d1 3.2, d2 4.2/7.8, L 21.5, P 13.0, S1 0.20, S2 0.30
CT240012Wire range: 2×#12 AWG / 2×4.00 mm² | Color: GRAY | Dimensions (mm): d1 4.2, d2 4.98/8.8, L 23.0, P 12.0, S1 0.20, S2 0.40
CT260014Wire range: 2×#10 AWG / 2×6.00 mm² | Color: BLACK | Dimensions (mm): d1 5.3, d2 6.9/10.0, L 26.0, P 14.0, S1 0.20, S2 0.40
