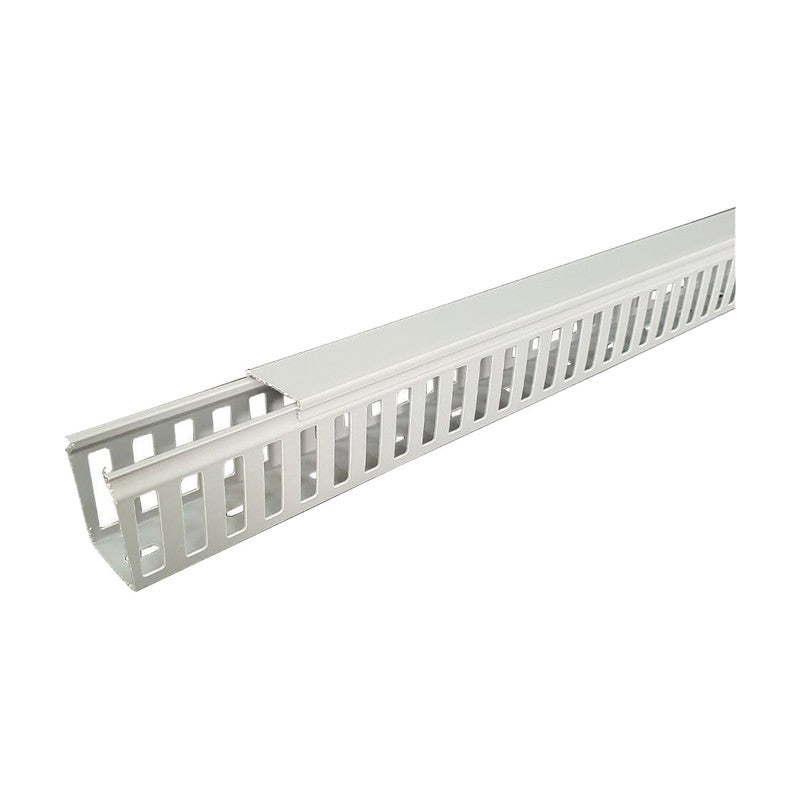

Jeoneo DG Close-Slot Wiring Ducts, PVC

Jeoneo DG Close-Slot Wiring Ducts, PVC

PVC close-slot wiring ducts in white or gray, widths 20 to 150 mm, 2000 mm long.

Key features

  • PVC, rated 50 °C, UL94 V-0
  • White or gray

Specifications

Material PVC
Temperature rating 50 °C
Flammability UL94 V-0
Color White, gray
Length 2000 mm
Jeoneo DG Close-Slot Wiring Ducts, PVC
DG 20×35 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 15, W 20, H 35, Length 2000
DG 25×40 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 25, H 40, Length 2000
DG 30×40 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 30, H 40, Length 2000
DG 40×40 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 40, H 40, Length 2000
DG 25×60 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 25, H 60, Length 2000
DG 30×60 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 30, H 60, Length 2000
DG 40×60 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 40, H 60, Length 2000
DG 50×60 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 50, H 60, Length 2000
DG 30×80 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 30, H 80, Length 2000
DG 40×80 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 40, H 80, Length 2000
DG 50×80 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 50, H 80, Length 2000
DG 40×100 Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 76, W 40, H 100, Length 2000
DG 60×80 Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 40, W 60, H 80, Length 2000
DG 60×40 Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 60, H 40, Length 2000
DG 60×60 Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 60, H 60, Length 2000
DG 60×100 Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 76, W 60, H 100, Length 2000
DG 80×60 Hole pattern: Fig 2 | Pack qty (box): 12 | Dimensions (mm): A 10, B 20, C 6, E 57, W 80, H 60, Length 2000
DG 100×60 Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 10, B 20, C 6, E 40, W 100, H 60, Length 2000
DG 80×80 Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 57, W 80, H 80, Length 2000
DG 100×80 Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 57, W 100, H 80, Length 2000
DG 80×100 Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 76, W 80, H 100, Length 2000
DG 100×100 Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 76, W 100, H 100, Length 2000
DG 100×150 Hole pattern: Fig 3 | Pack qty (box): 8 | Dimensions (mm): A 13, B 25, C 13, E 122, W 100, H 150, Length 2000
DG 150×100 Hole pattern: Fig 3 | Pack qty (box): 8 | Dimensions (mm): A 13, B 25, C 8, E 76, W 150, H 100, Length 2000
Wiring DuctsJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo DG Close-Slot Wiring Ducts, PVC

Brand Jeoneo·Wiring Ducts

Available part numbers (24)

DG 20×35, DG 25×40, DG 30×40, DG 40×40, DG 25×60, DG 30×60, DG 40×60, DG 50×60, DG 30×80, DG 40×80 + 14 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo DG Close-Slot Wiring Ducts, PVC
0 selected
RFQ List (0)
Product codeSpec
DG 20×35Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 15, W 20, H 35, Length 2000
DG 25×40Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 25, H 40, Length 2000
DG 30×40Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 30, H 40, Length 2000
DG 40×40Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 20, W 40, H 40, Length 2000
DG 25×60Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 25, H 60, Length 2000
DG 30×60Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 30, H 60, Length 2000
DG 40×60Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 40, H 60, Length 2000
DG 50×60Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 50, H 60, Length 2000
DG 30×80Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 30, H 80, Length 2000
DG 40×80Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 40, H 80, Length 2000
DG 50×80Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 57, W 50, H 80, Length 2000
DG 40×100Hole pattern: Fig 1 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 76, W 40, H 100, Length 2000
DG 60×80Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 40, W 60, H 80, Length 2000
DG 60×40Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 60, H 40, Length 2000
DG 60×60Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 6, E 40, W 60, H 60, Length 2000
DG 60×100Hole pattern: Fig 2 | Pack qty (box): 20 | Dimensions (mm): A 10, B 20, C 8, E 76, W 60, H 100, Length 2000
DG 80×60Hole pattern: Fig 2 | Pack qty (box): 12 | Dimensions (mm): A 10, B 20, C 6, E 57, W 80, H 60, Length 2000
DG 100×60Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 10, B 20, C 6, E 40, W 100, H 60, Length 2000
DG 80×80Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 57, W 80, H 80, Length 2000
DG 100×80Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 57, W 100, H 80, Length 2000
DG 80×100Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 76, W 80, H 100, Length 2000
DG 100×100Hole pattern: Fig 3 | Pack qty (box): 12 | Dimensions (mm): A 13, B 25, C 8, E 76, W 100, H 100, Length 2000
DG 100×150Hole pattern: Fig 3 | Pack qty (box): 8 | Dimensions (mm): A 13, B 25, C 13, E 122, W 100, H 150, Length 2000
DG 150×100Hole pattern: Fig 3 | Pack qty (box): 8 | Dimensions (mm): A 13, B 25, C 8, E 76, W 150, H 100, Length 2000
