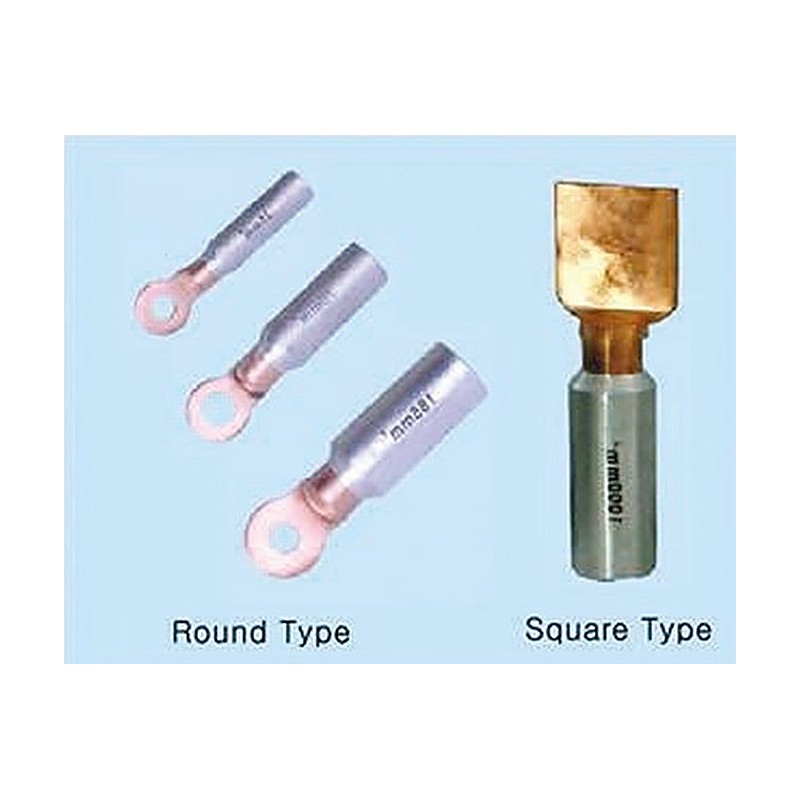

Jeoneo DTL Al-Cu Bimetal Cable Lugs, One Hole
Jeoneo DTL Al-Cu Bimetal Cable Lugs, One Hole
Friction-welded aluminium-copper bimetal one-hole cable lugs (Type DTL) for 16 to 630 mm² aluminium cables.
Key features
- Friction-welded Al (99.5%) barrel and Cu (99.9%) palm
- Made to order on customer request
Specifications
| Material | Al ≥99.5%, Cu ≥99.9% |
|---|---|
| Joining | Friction welded |
| Holes | 1 |
| DTL 16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Dimensions (mm): W 16, D 11, d 6.4, L 70, L1 32, T 3 | |
| DTL 25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Dimensions (mm): W 18, D 12, d 7.4, L 75, L1 34, T 3.2 | |
| DTL 35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Dimensions (mm): W 20.5, D 14, d 8.7, L 85, L1 40, T 3.8 | |
| DTL 50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Dimensions (mm): W 23, D 16, d 9.7, L 90, L1 42, T 4.0 | |
| DTL 70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Dimensions (mm): W 26, D 18, d 12.2, L 102, L1 47, T 4.6 | |
| DTL 95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Dimensions (mm): W 28, D 21, d 13.7, L 112, L1 50, T 5 | |
| DTL 120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Dimensions (mm): W 30, D 23, d 15.2, L 120, L1 53, T 5.2 | |
| DTL 150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Dimensions (mm): W 33, D 25, d 16.5, L 126, L1 55, T 6 | |
| DTL 185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Dimensions (mm): W 37, D 28, d 18.5, L 135, L1 58, T 6.5 | |
| DTL 240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Dimensions (mm): W 40, D 30, d 21, L 141, L1 60, T 7 | |
| DTL 300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M17 | Dimensions (mm): W 50, D 35, d 23.5, L 180, L1 72, T 8 | |
| DTL 400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Dimensions (mm): W 50, D 38, d 26.5, L 185, L1 76, T 8.5 | |
| DTL 500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Dimensions (mm): W 55, D 45, d 29.5, L 200, L1 80, T 9 | |
| DTL 630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Dimensions (mm): W 60, D 50, d 34, L 215, L1 80, T 10 |
Cable LugsJeoneo
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo DTL Al-Cu Bimetal Cable Lugs, One Hole
Available part numbers (14)
DTL 16, DTL 25, DTL 35, DTL 50, DTL 70, DTL 95, DTL 120, DTL 150, DTL 185, DTL 240 + 4 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| DTL 16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Dimensions (mm): W 16, D 11, d 6.4, L 70, L1 32, T 3 | ||
| DTL 25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Dimensions (mm): W 18, D 12, d 7.4, L 75, L1 34, T 3.2 | ||
| DTL 35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Dimensions (mm): W 20.5, D 14, d 8.7, L 85, L1 40, T 3.8 | ||
| DTL 50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Dimensions (mm): W 23, D 16, d 9.7, L 90, L1 42, T 4.0 | ||
| DTL 70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Dimensions (mm): W 26, D 18, d 12.2, L 102, L1 47, T 4.6 | ||
| DTL 95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Dimensions (mm): W 28, D 21, d 13.7, L 112, L1 50, T 5 | ||
| DTL 120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Dimensions (mm): W 30, D 23, d 15.2, L 120, L1 53, T 5.2 | ||
| DTL 150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Dimensions (mm): W 33, D 25, d 16.5, L 126, L1 55, T 6 | ||
| DTL 185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Dimensions (mm): W 37, D 28, d 18.5, L 135, L1 58, T 6.5 | ||
| DTL 240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Dimensions (mm): W 40, D 30, d 21, L 141, L1 60, T 7 | ||
| DTL 300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M17 | Dimensions (mm): W 50, D 35, d 23.5, L 180, L1 72, T 8 | ||
| DTL 400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Dimensions (mm): W 50, D 38, d 26.5, L 185, L1 76, T 8.5 | ||
| DTL 500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Dimensions (mm): W 55, D 45, d 29.5, L 200, L1 80, T 9 | ||
| DTL 630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Dimensions (mm): W 60, D 50, d 34, L 215, L1 80, T 10 |
