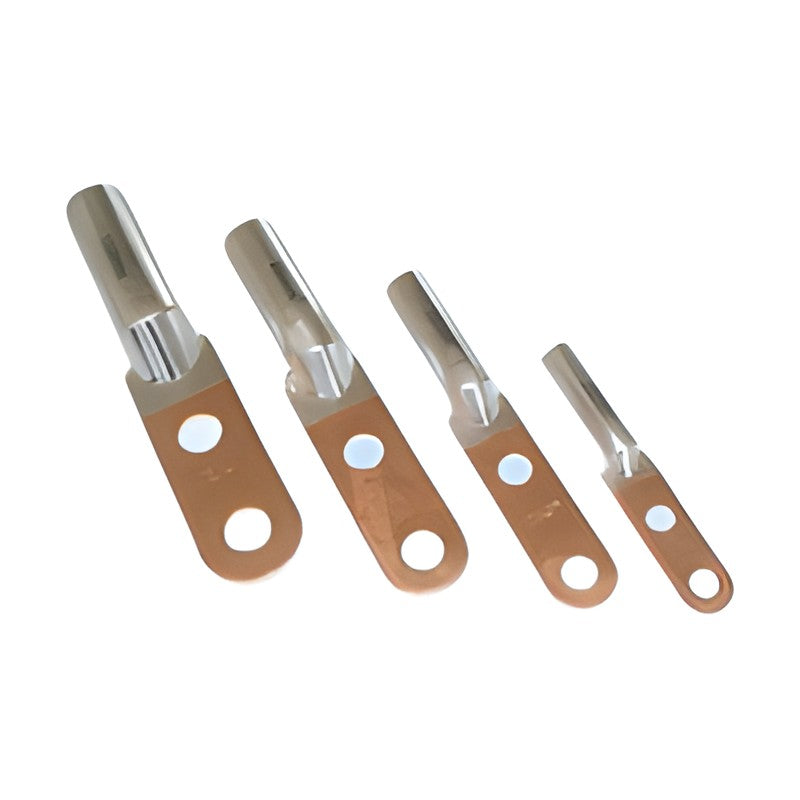

Jeoneo DTLD Al-Cu Bimetal Cable Lugs, Two Hole
Jeoneo DTLD Al-Cu Bimetal Cable Lugs, Two Hole
Friction-welded aluminium-copper bimetal two-hole cable lugs (Type 2H DTLD) for 16 to 630 mm² aluminium cables.
Key features
- Friction-welded Al (99.5%) barrel and Cu (99.9%) palm
- Made to order on customer request
Specifications
| Material | Al ≥99.5%, Cu ≥99.9% |
|---|---|
| Joining | Friction welded |
| Holes | 2 |
| DTLD 16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Dimensions (mm): W 16, D 11, d 6.4, L1 95 33, L2 25, T 4 | |
| DTLD 25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Dimensions (mm): W 18, D 12, d 7.4, L1 100 35, L2 25, T 4 | |
| DTLD 35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Dimensions (mm): W 20.5, D 14, d 8.7, L1 125 38, L2 40, T 4 | |
| DTLD 50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Dimensions (mm): W 23, D 16, d 9.7, L1 130 40, L2 40, T 5 | |
| DTLD 70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Dimensions (mm): W 26, D 18, d 11.7, L1 142 45, L2 40, T 5 | |
| DTLD 95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Dimensions (mm): W 28, D 21, d 13.7, L1 150 51, L2 40, T 5 | |
| DTLD 120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Dimensions (mm): W 30, D 23, d 15.2, L1 160 56, L2 40, T 6 | |
| DTLD 150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Dimensions (mm): W 34, D 25, d 16.7, L1 165 57, L2 40, T 6 | |
| DTLD 185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Dimensions (mm): W 37, D 28, d 18.7, L1 176 58, L2 40, T 6.5 | |
| DTLD 240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Dimensions (mm): W 40, D 30, d 21, L1 188 60, L2 40, T 6.5 | |
| DTLD 300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M17 | Dimensions (mm): W 50, D 35, d 23.5, L1 220 73, L2 40, T 7 | |
| DTLD 400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Dimensions (mm): W 55, D 38, d 26, L1 225 78, L2 45, T 7.5 | |
| DTLD 500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Dimensions (mm): W 55, D 45, d 29, L1 230 80, L2 45, T 9.5 | |
| DTLD 630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Dimensions (mm): W 60, D 50, d 34, L1 235 80, L2 45, T 9.5 |
Cable LugsJeoneo
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo DTLD Al-Cu Bimetal Cable Lugs, Two Hole
Available part numbers (14)
DTLD 16, DTLD 25, DTLD 35, DTLD 50, DTLD 70, DTLD 95, DTLD 120, DTLD 150, DTLD 185, DTLD 240 + 4 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| DTLD 16 | Wire range: 6 AWG / 16 mm² | Stud size: M8.5 | Dimensions (mm): W 16, D 11, d 6.4, L1 95 33, L2 25, T 4 | ||
| DTLD 25 | Wire range: 4 AWG / 25 mm² | Stud size: M8.5 | Dimensions (mm): W 18, D 12, d 7.4, L1 100 35, L2 25, T 4 | ||
| DTLD 35 | Wire range: 2 AWG / 35 mm² | Stud size: M10.5 | Dimensions (mm): W 20.5, D 14, d 8.7, L1 125 38, L2 40, T 4 | ||
| DTLD 50 | Wire range: 1 AWG / 50 mm² | Stud size: M10.5 | Dimensions (mm): W 23, D 16, d 9.7, L1 130 40, L2 40, T 5 | ||
| DTLD 70 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12.5 | Dimensions (mm): W 26, D 18, d 11.7, L1 142 45, L2 40, T 5 | ||
| DTLD 95 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12.5 | Dimensions (mm): W 28, D 21, d 13.7, L1 150 51, L2 40, T 5 | ||
| DTLD 120 | Wire range: 250 Kcmil / 120 mm² | Stud size: M14.5 | Dimensions (mm): W 30, D 23, d 15.2, L1 160 56, L2 40, T 6 | ||
| DTLD 150 | Wire range: 300 Kcmil / 150 mm² | Stud size: M14.5 | Dimensions (mm): W 34, D 25, d 16.7, L1 165 57, L2 40, T 6 | ||
| DTLD 185 | Wire range: 350 Kcmil / 185 mm² | Stud size: M17 | Dimensions (mm): W 37, D 28, d 18.7, L1 176 58, L2 40, T 6.5 | ||
| DTLD 240 | Wire range: 500 Kcmil / 240 mm² | Stud size: M17 | Dimensions (mm): W 40, D 30, d 21, L1 188 60, L2 40, T 6.5 | ||
| DTLD 300 | Wire range: 600 Kcmil / 300 mm² | Stud size: M17 | Dimensions (mm): W 50, D 35, d 23.5, L1 220 73, L2 40, T 7 | ||
| DTLD 400 | Wire range: 800 Kcmil / 400 mm² | Stud size: M21 | Dimensions (mm): W 55, D 38, d 26, L1 225 78, L2 45, T 7.5 | ||
| DTLD 500 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M21 | Dimensions (mm): W 55, D 45, d 29, L1 230 80, L2 45, T 9.5 | ||
| DTLD 630 | Wire range: 1250 Kcmil / 630 mm² | Stud size: M21 | Dimensions (mm): W 60, D 50, d 34, L1 235 80, L2 45, T 9.5 |
