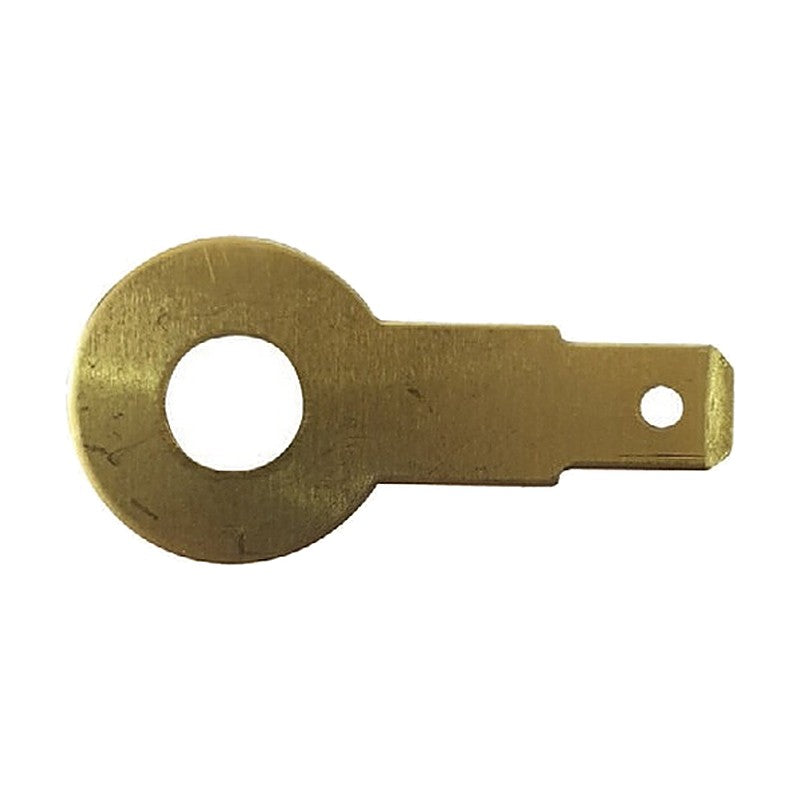

Jeoneo GND Ground Terminals for PCB Soldering

Jeoneo GND Ground Terminals for PCB Soldering

Brass ground terminals for soldering to a printed circuit board and grounding to a stud of 6, 8 or 10 mm.

Key features

  • For grounding by soldering to a PCB

Specifications

Material Brass
Surface Natural finish
Pack qty 1,000
Jeoneo GND Ground Terminals for PCB Soldering
GND-6 Dimensions (mm): d1 6.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
GND-8 Dimensions (mm): d1 8.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
GND-10 Dimensions (mm): d1 10.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
Ring TerminalsJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo GND Ground Terminals for PCB Soldering

Brand Jeoneo·Ring Terminals

Available part numbers (3)

GND-6, GND-8, GND-10

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo GND Ground Terminals for PCB Soldering
0 selected
RFQ List (0)
Product codeSpec
GND-6Dimensions (mm): d1 6.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
GND-8Dimensions (mm): d1 8.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
GND-10Dimensions (mm): d1 10.4, D 16.0, A 9.0, B 7.0, C 1.0, L 32.5, E 8.0, E1 6.2, E2 4.0, d2 2.0, t 0.8
