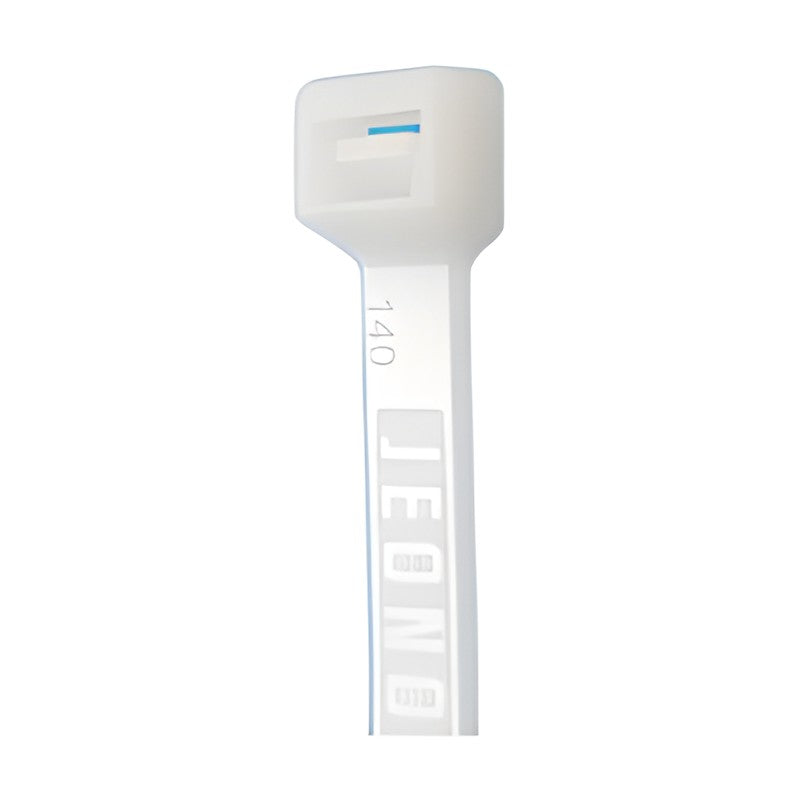

Jeoneo J Nylon 6.6 Cable Ties, Natural and Colors

Jeoneo J Nylon 6.6 Cable Ties, Natural and Colors

Nylon 6.6 cable ties (Type J) from subminiature 2.5 mm to extra-heavy 12.7 mm width, lengths 100 to 1000 mm, for indoor use.

Key features

  • Flammability UL94 V-2
  • Halogen free (natural color only)
  • Operating temperature 85 °C
  • Natural or all colors

Specifications

Material Nylon 6.6
Flammability UL94 V-2
Operating temperature 85 °C
Use Indoor
Jeoneo J Nylon 6.6 Cable Ties, Natural and Colors
J-100 Series: Subminiature 2.5 | Length (mm): 103 | Width (mm): 2.5 | Thickness (mm): 0.9 | Max. bundle dia. (mm): 22 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-162 Series: Subminiature 2.5 | Length (mm): 162 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 40 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-202 Series: Subminiature 2.5 | Length (mm): 200 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-140 Series: Intermediate 3.6 | Length (mm): 148 | Width (mm): 3.6 | Thickness (mm): 1.1 | Max. bundle dia. (mm): 35 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-203 Series: Intermediate 3.6 | Length (mm): 200 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-303 Series: Intermediate 3.6 | Length (mm): 300 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 77 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-200 Series: Standard 4.8 | Length (mm): 201 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 48 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-250 Series: Standard 4.8 | Length (mm): 252 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 64 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-300 Series: Standard 4.8 | Length (mm): 300 | Width (mm): 4.8 | Thickness (mm): 1.4 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-373 Series: Standard 4.8 | Length (mm): 368 | Width (mm): 4.8 | Thickness (mm): 1.5 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-307 Series: Duty heavy 7.6 | Length (mm): 300 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
J-370 Series: Duty heavy 7.6 | Length (mm): 370 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
J-450 Series: Heavy 9.0 | Length (mm): 450 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 127 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-530 Series: Heavy 9.0 | Length (mm): 530 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 152 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-780 Series: Heavy 9.0 | Length (mm): 780 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 229 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-1000 Series: Heavy 9.0 | Length (mm): 1000 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 305 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-300EH Series: Extra heavy 12.7 | Length (mm): 300 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 70 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
J-400EH Series: Extra heavy 12.7 | Length (mm): 400 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
J-540EH Series: Extra heavy 12.7 | Length (mm): 540 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 150 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
Cable TiesJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo J Nylon 6.6 Cable Ties, Natural and Colors

Brand Jeoneo·Cable Ties

Available part numbers (19)

J-100, J-162, J-202, J-140, J-203, J-303, J-200, J-250, J-300, J-373 + 9 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo J Nylon 6.6 Cable Ties, Natural and Colors
0 selected
RFQ List (0)
Product codeSpec
J-100Series: Subminiature 2.5 | Length (mm): 103 | Width (mm): 2.5 | Thickness (mm): 0.9 | Max. bundle dia. (mm): 22 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-162Series: Subminiature 2.5 | Length (mm): 162 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 40 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-202Series: Subminiature 2.5 | Length (mm): 200 | Width (mm): 2.5 | Thickness (mm): 1.0 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 18 lb (8.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-140Series: Intermediate 3.6 | Length (mm): 148 | Width (mm): 3.6 | Thickness (mm): 1.1 | Max. bundle dia. (mm): 35 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-203Series: Intermediate 3.6 | Length (mm): 200 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 51 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-303Series: Intermediate 3.6 | Length (mm): 300 | Width (mm): 3.6 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 77 | Min. loop tensile strength: 40 lb (18.1 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-200Series: Standard 4.8 | Length (mm): 201 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 48 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 1000
J-250Series: Standard 4.8 | Length (mm): 252 | Width (mm): 4.8 | Thickness (mm): 1.3 | Max. bundle dia. (mm): 64 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-300Series: Standard 4.8 | Length (mm): 300 | Width (mm): 4.8 | Thickness (mm): 1.4 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-373Series: Standard 4.8 | Length (mm): 368 | Width (mm): 4.8 | Thickness (mm): 1.5 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 50 lb (22.6 kg) | Installation tool: JOT-702, JOT-328 | Pack qty: 500
J-307Series: Duty heavy 7.6 | Length (mm): 300 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 76 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
J-370Series: Duty heavy 7.6 | Length (mm): 370 | Width (mm): 7.6 | Thickness (mm): 1.6 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 120 lb (54.4 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 300
J-450Series: Heavy 9.0 | Length (mm): 450 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 127 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-530Series: Heavy 9.0 | Length (mm): 530 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 152 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-780Series: Heavy 9.0 | Length (mm): 780 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 229 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-1000Series: Heavy 9.0 | Length (mm): 1000 | Width (mm): 9.0 | Thickness (mm): 1.9 | Max. bundle dia. (mm): 305 | Min. loop tensile strength: 175 lb (79.3 kg) | Installation tool: JOT-519, JOT-600L | Pack qty: 100
J-300EHSeries: Extra heavy 12.7 | Length (mm): 300 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 70 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
J-400EHSeries: Extra heavy 12.7 | Length (mm): 400 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 102 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
J-540EHSeries: Extra heavy 12.7 | Length (mm): 540 | Width (mm): 12.7 | Thickness (mm): 2.1 | Max. bundle dia. (mm): 150 | Min. loop tensile strength: 250 lb (113 kg) | Installation tool: JOT-600L | Pack qty: 100
