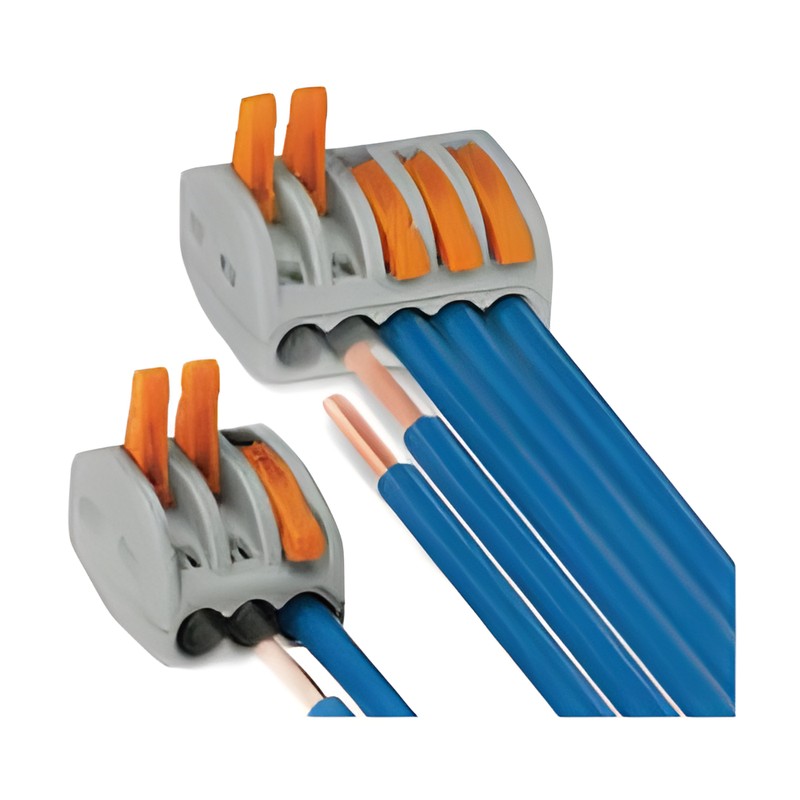

Jeoneo JCMK-41 One-Touch Lever Wire Connectors

One-touch lever wire connectors for solid and stranded conductors 0.08 to 4.0 mm², reusable, with integrated test port.

Key features

Accepts solid and stranded conductors from 0.08 to 4.0 mm² (AWG 28-12)
Connector is completely re-usable
Integrated test pole for checking connection integrity
For lighting fixtures, door controls, intercoms, pumps and loudspeaker cables

Specifications

Housing	Polyamide 66, UL94 V-2
Terminal	Brass, nickel plated; stainless spring steel
Working temperature	T105 °C, 221 °F (UL)
Strip length	9-10 mm
Flexible wire	0.08-2.5 mm² (AWG 28-14)
Rigid wire	0.08-4 mm² (AWG 28-12)
Rating	32 A, 400 V
Color	Gray body, orange lever
Pack qty	100

JCMK-412		Poles: 2
JCMK-413		Poles: 3
JCMK-415		Poles: 5

Wire ConnectorsJeoneo

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JCMK-41 One-Touch Lever Wire Connectors

Brand Jeoneo·Wire Connectors

Available part numbers (3)

JCMK-412, JCMK-413, JCMK-415
