Jeoneo JES Braided Expandable Sleeving, Polyester

Jeoneo JES Braided Expandable Sleeving, Polyester

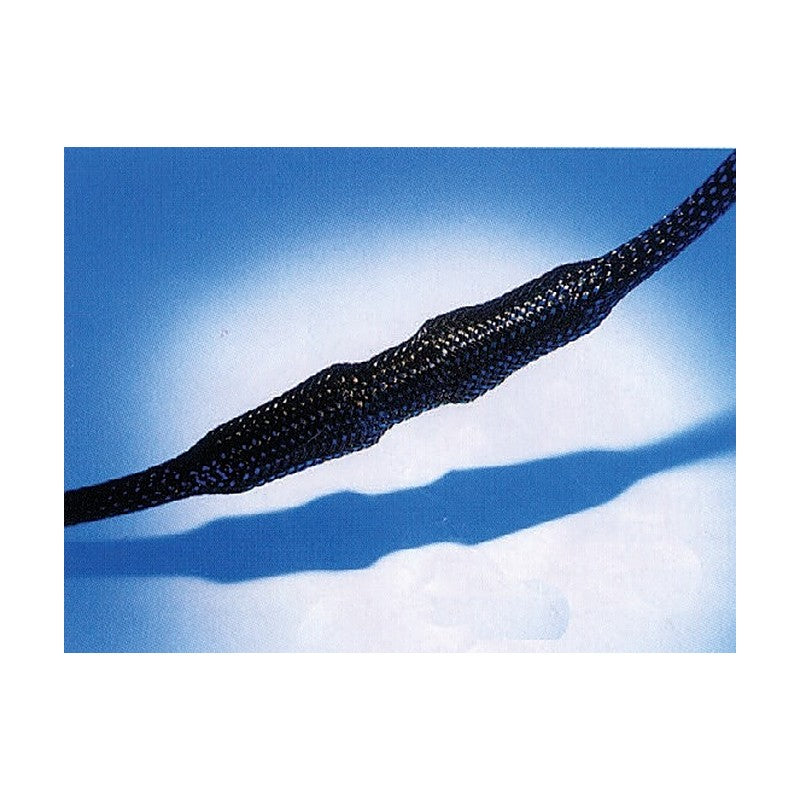

Black braided polyester expandable sleeving that provides continuous abrasion protection for wires, cables and tubing.

Key features

  • Lightweight, durable protection
  • Highly flexible open weave does not trap heat or humidity
  • Rated for use up to 125 °C (257 °F)
  • Fits irregular shapes
  • Cut and seal with JKD hot-blade cutters

Specifications

Material Polyester
Color Black
Max. temperature 125 °C
Jeoneo JES Braided Expandable Sleeving, Polyester
JES 6 Nominal I.D.: 1/4 in (6.4 mm) | Diameter range (mm): 3.2-9.5 | Spool length: 800 m
JES 10 Nominal I.D.: 3/8 in (9.5 mm) | Diameter range (mm): 4.7-14.3 | Spool length: 300 m
JES 12 Nominal I.D.: 1/2 in (12.7 mm) | Diameter range (mm): 6.4-19.1 | Spool length: 200 m
JES 20 Nominal I.D.: 3/4 in (19.1 mm) | Diameter range (mm): 12.7-31.8 | Spool length: 150 m
JES 25 Nominal I.D.: 1 in (25 mm) | Diameter range (mm): 18-35 | Spool length: 100 m
JES 30 Nominal I.D.: 1 1/4 in (31.8 mm) | Diameter range (mm): 19.1-38.1 | Spool length: 100 m
JES 40 Nominal I.D.: 1 1/2 in (38.1 mm) | Diameter range (mm): 25.4-57.2 | Spool length: 100 m
Cable ProtectionJeoneo
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JES Braided Expandable Sleeving, Polyester

Brand Jeoneo·Cable Protection

Available part numbers (7)

JES 6, JES 10, JES 12, JES 20, JES 25, JES 30, JES 40

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JES Braided Expandable Sleeving, Polyester
0 selected
RFQ List (0)
Product codeSpec
JES 6Nominal I.D.: 1/4 in (6.4 mm) | Diameter range (mm): 3.2-9.5 | Spool length: 800 m
JES 10Nominal I.D.: 3/8 in (9.5 mm) | Diameter range (mm): 4.7-14.3 | Spool length: 300 m
JES 12Nominal I.D.: 1/2 in (12.7 mm) | Diameter range (mm): 6.4-19.1 | Spool length: 200 m
JES 20Nominal I.D.: 3/4 in (19.1 mm) | Diameter range (mm): 12.7-31.8 | Spool length: 150 m
JES 25Nominal I.D.: 1 in (25 mm) | Diameter range (mm): 18-35 | Spool length: 100 m
JES 30Nominal I.D.: 1 1/4 in (31.8 mm) | Diameter range (mm): 19.1-38.1 | Spool length: 100 m
JES 40Nominal I.D.: 1 1/2 in (38.1 mm) | Diameter range (mm): 25.4-57.2 | Spool length: 100 m
