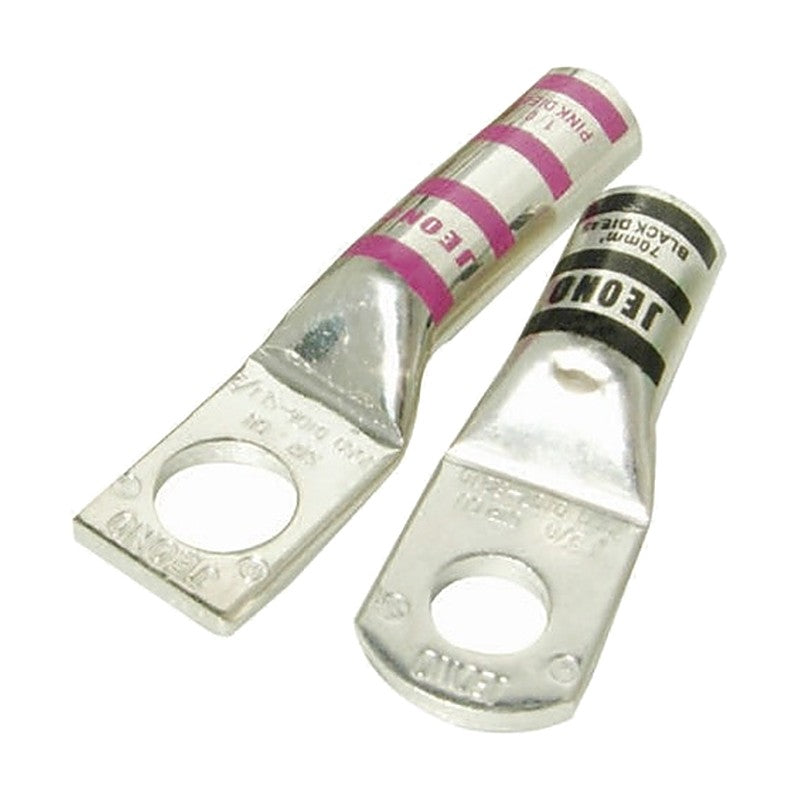

• Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 10-50 mm²
1 1

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 10-50 mm²

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 10-50 mm²

One-hole copper lugs (Type FCO) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, round tongue, 10-50 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 1
Tongue form Round
JFCO 0102-RS05 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JFCO 0102-RL05 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JFCO 0102-RS06 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JFCO 0102-RL06 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JFCO 0102-RS08 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JFCO 0102-RL08 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JFCO 0102-RS10 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JFCO 0102-RL10 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JFCO 0102-RS12 Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 18, d 5.4, D 7.4, E 15, L 43
JFCO 0102-RL12 Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 18, d 5.4, D 7.4, E 21, L 49
JFCO 0103-RS05 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL05 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS06 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL06 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS08 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL08 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS10 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 17, L 44
JFCO 0103-RL10 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 23, L 50
JFCO 0103-RS12 Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 18, d 6.7, D 9.0, E 17, L 44
JFCO 0103-RL12 Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, E 23, L 50
JFCO 0104-RS05 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL05 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS06 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL06 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS08 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL08 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS10 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL10 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS12 Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 18, d 8.1, D 10.6, E 19.5, L 50
JFCO 0104-RL12 Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, E 26, L 56
JFCO 0105-RS05 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL05 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS06 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL06 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS08 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL08 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS10 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL10 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS12 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL12 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS16 Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 23, d 9.5, D 12, E 20, L 56
JFCO 0105-RL16 Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, E 35, L 71
JFCO 0106-RS05 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL05 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS06 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL06 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS08 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL08 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS10 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL10 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS12 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL12 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS16 Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 24, d 10.2, D 13.2, E 20, L 58
JFCO 0106-RL16 Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 24, d 10.2, D 13.2, E 35, L 73
Cable LugsJeoneo
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 10-50 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (54)

JFCO 0102-RS05, JFCO 0102-RL05, JFCO 0102-RS06, JFCO 0102-RL06, JFCO 0102-RS08, JFCO 0102-RL08, JFCO 0102-RS10, JFCO 0102-RL10, JFCO 0102-RS12, JFCO 0102-RL12 + 44 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCO 0102-RS05Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JFCO 0102-RL05Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JFCO 0102-RS06Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 15, L 33
JFCO 0102-RL06Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 12, d 5.4, D 7.4, E 21, L 39
JFCO 0102-RS08Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JFCO 0102-RL08Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M8 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JFCO 0102-RS10Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 15, L 39
JFCO 0102-RL10Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M10 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 15.5, d 5.4, D 7.4, E 21, L 45
JFCO 0102-RS12Barrel form: Standard | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 300 | Dimensions (mm): W 18, d 5.4, D 7.4, E 15, L 43
JFCO 0102-RL12Barrel form: Long | Wire range: 8 AWG / 10 mm² | Stud size: M12 | Color code / die: Blue 24, JHCD-6 | Pack qty: 200 | Dimensions (mm): W 18, d 5.4, D 7.4, E 21, L 49
JFCO 0103-RS05Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL05Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS06Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL06Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS08Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 13, d 6.7, D 9.0, E 17, L 40
JFCO 0103-RL08Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M8 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 13, d 6.7, D 9.0, E 23, L 46
JFCO 0103-RS10Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 17, L 44
JFCO 0103-RL10Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 15.5, d 6.7, D 9.0, E 23, L 50
JFCO 0103-RS12Barrel form: Standard | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 200 | Dimensions (mm): W 18, d 6.7, D 9.0, E 17, L 44
JFCO 0103-RL12Barrel form: Long | Wire range: 6 AWG / 16 mm² | Stud size: M12 | Color code / die: Gray 29, JHCD-4 | Pack qty: 150 | Dimensions (mm): W 18, d 6.7, D 9.0, E 23, L 50
JFCO 0104-RS05Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL05Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS06Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL06Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS08Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL08Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS10Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 16, d 8.1, D 10.6, E 19.5, L 45.5
JFCO 0104-RL10Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 16, d 8.1, D 10.6, E 26, L 52
JFCO 0104-RS12Barrel form: Standard | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 150 | Dimensions (mm): W 18, d 8.1, D 10.6, E 19.5, L 50
JFCO 0104-RL12Barrel form: Long | Wire range: 4 AWG / 25 mm² | Stud size: M12 | Color code / die: Brown 33, JHCD-2 | Pack qty: 100 | Dimensions (mm): W 18, d 8.1, D 10.6, E 26, L 56
JFCO 0105-RS05Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL05Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M5 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS06Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL06Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS08Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL08Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS10Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL10Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37, JHCD-1 | Pack qty: 70 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS12Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 18, d 9.5, D 12, E 20, L 50
JFCO 0105-RL12Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M12 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 18, d 9.5, D 12, E 35, L 65
JFCO 0105-RS16Barrel form: Standard | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 100 | Dimensions (mm): W 23, d 9.5, D 12, E 20, L 56
JFCO 0105-RL16Barrel form: Long | Wire range: 2 AWG / 35 mm² | Stud size: M16 | Color code / die: Green 37, JHCD-1 | Pack qty: 50 | Dimensions (mm): W 23, d 9.5, D 12, E 35, L 71
JFCO 0106-RS05Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL05Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M5 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS06Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL06Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS08Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL08Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS10Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL10Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS12Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 19, d 10.2, D 13.2, E 20, L 52
JFCO 0106-RL12Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, E 35, L 67
JFCO 0106-RS16Barrel form: Standard | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 100 | Dimensions (mm): W 24, d 10.2, D 13.2, E 20, L 58
JFCO 0106-RL16Barrel form: Long | Wire range: 1 AWG / 50 mm² | Stud size: M16 | Color code / die: Pink 42, JHCD-1/0 | Pack qty: 50 | Dimensions (mm): W 24, d 10.2, D 13.2, E 35, L 73
