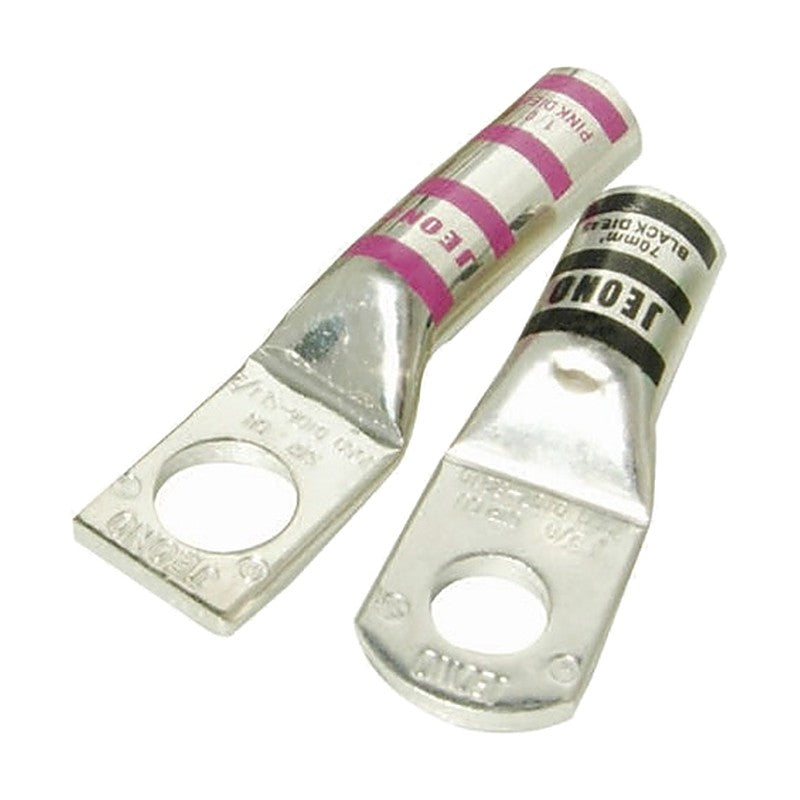

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 200-500 mm²

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 200-500 mm²

One-hole copper lugs (Type FCO) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, round tongue, 200-500 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 1
Tongue form Round
JFCO 0114-RS10 Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL10 Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS12 Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL12 Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS16 Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL16 Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS20 Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL20 Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS24 Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 104
JFCO 0114-RL24 Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 121
JFCO 0115-RS10 Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL10 Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS12 Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL12 Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS16 Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL16 Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS20 Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL20 Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS24 Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 107
JFCO 0115-RL24 Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 130
JFCO 0116-RS12 Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL12 Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS16 Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL16 Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS20 Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL20 Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS24 Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 111
JFCO 0116-RL24 Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 136
JFCO 0117-RS12 Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL12 Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS16 Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL16 Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS20 Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL20 Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS24 Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL24 Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0118-RS12 Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL12 Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS16 Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL16 Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS20 Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL20 Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS24 Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL24 Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
Cable LugsJeoneo
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCO Flex Conductor Lugs, One Hole, Round Tongue, 200-500 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (44)

JFCO 0114-RS10, JFCO 0114-RL10, JFCO 0114-RS12, JFCO 0114-RL12, JFCO 0114-RS16, JFCO 0114-RL16, JFCO 0114-RS20, JFCO 0114-RL20, JFCO 0114-RS24, JFCO 0114-RL24 + 34 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCO 0114-RS10Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL10Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS12Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL12Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS16Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL16Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M16 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS20Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 92
JFCO 0114-RL20Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M20 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 109
JFCO 0114-RS24Barrel form: Standard | Wire range: 400 Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 15 | Dimensions (mm): W 40, d 22, D 27.4, E 40, L 104
JFCO 0114-RL24Barrel form: Long | Wire range: 400 Kcmil / 200 mm² | Stud size: M24 | Color code / die: Brown 87, JHCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, E 57, L 121
JFCO 0115-RS10Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL10Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS12Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL12Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS16Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL16Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M16 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS20Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 101
JFCO 0115-RL20Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M20 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 124
JFCO 0115-RS24Barrel form: Standard | Wire range: 500 Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 10 | Dimensions (mm): W 45, d 24, D 30.5, E 45, L 107
JFCO 0115-RL24Barrel form: Long | Wire range: 500 Kcmil / 240 mm² | Stud size: M24 | Color code / die: Green 94, JHCD-600 | Pack qty: 5 | Dimensions (mm): W 45, d 24, D 30.5, E 68, L 130
JFCO 0116-RS12Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL12Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS16Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL16Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS20Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 110
JFCO 0116-RL20Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M20 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 135
JFCO 0116-RS24Barrel form: Standard | Wire range: 600 Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 6 | Dimensions (mm): W 49, d 27, D 35, E 48, L 111
JFCO 0116-RL24Barrel form: Long | Wire range: 600 Kcmil / 300 mm² | Stud size: M24 | Color code / die: Black 106, JHCD-, 940-750 | Pack qty: 4 | Dimensions (mm): W 49, d 27, D 35, E 73, L 136
JFCO 0117-RS12Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL12Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS16Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL16Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS20Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL20Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M20 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0117-RS24Barrel form: Standard | Wire range: 750 Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 4 | Dimensions (mm): W 57.5, d 31, D 40, E 50, L 130
JFCO 0117-RL24Barrel form: Long | Wire range: 750 Kcmil / 400 mm² | Stud size: M24 | Color code / die: White 125, JHCD-, 940-1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, E 76, L 156
JFCO 0118-RS12Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL12Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS16Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL16Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M16 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS20Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL20Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M20 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
JFCO 0118-RS24Barrel form: Standard | Wire range: 1000 Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 3 | Dimensions (mm): W 64, d 34, D 45, E 54, L 140
JFCO 0118-RL24Barrel form: Long | Wire range: 1000 Kcmil / 500 mm² | Stud size: M24 | Color code / die: Pink 142, JHCD-, 1000-1250 | Pack qty: 2 | Dimensions (mm): W 64, d 34, D 45, E 79, L 165
