• Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 60-185 mm²
1 1

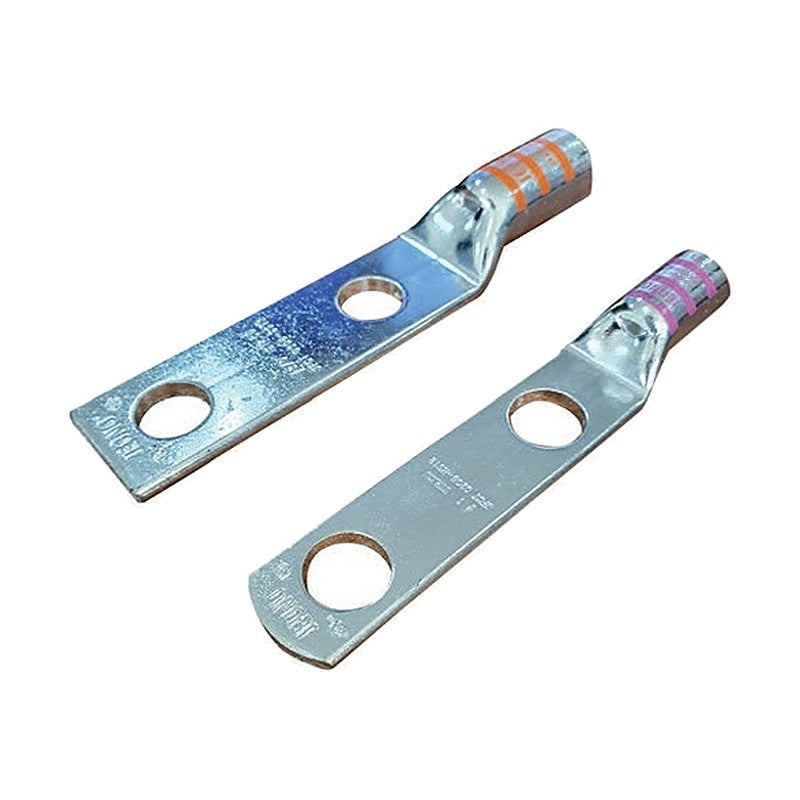

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 60-185 mm²

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 60-185 mm²

Two-hole copper lugs (Type FCT) with inspection hole for flexible (class 5) conductors, standard (S) or long (L) barrel, square tongue, 60-185 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 5 flexible conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 5
Holes 2
Tongue form Square
JFCT 0207-SS08 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL08 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS10 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL10 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS12 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL12 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS16 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 22, L 111
JFCT 0207-SL16 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 45, L 130
JFCT 0208-SS08 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL08 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS10 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL10 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS12 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL12 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS16 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 112
JFCT 0208-SL16 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 136
JFCT 0210-SS08 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL08 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS10 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL10 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS12 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL12 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS16 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 120
JFCT 0210-SL16 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 140
JFCT 0211-SS08 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL08 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS10 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL10 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS12 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL12 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS16 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL16 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0212-SS10 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL10 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS12 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL12 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS16 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL16 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS20 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL20 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0213-SS10 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL10 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS12 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL12 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS16 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL16 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS20 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL20 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
Cable LugsJeoneo
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFCT Flex Conductor Lugs, Two Hole, Square Tongue, 60-185 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (48)

JFCT 0207-SS08, JFCT 0207-SL08, JFCT 0207-SS10, JFCT 0207-SL10, JFCT 0207-SS12, JFCT 0207-SL12, JFCT 0207-SS16, JFCT 0207-SL16, JFCT 0208-SS08, JFCT 0208-SL08 + 38 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JFCT 0207-SS08Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL08Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS10Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL10Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS12Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 22, L 105
JFCT 0207-SL12Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 22, d 11.3, D 14.6, A 44.5, E 45, L 128
JFCT 0207-SS16Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 22, L 111
JFCT 0207-SL16Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Black 45, JHCD-2/0 | Pack qty: 40 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 45, L 130
JFCT 0208-SS08Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL08Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS10Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL10Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS12Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JFCT 0208-SL12Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JFCT 0208-SS16Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 112
JFCT 0208-SL16Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Orange 48, JHCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 136
JFCT 0210-SS08Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL08Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS10Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL10Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS12Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JFCT 0210-SL12Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JFCT 0210-SS16Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 120
JFCT 0210-SL16Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Purple 54, JHCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 140
JFCT 0211-SS08Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL08Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS10Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL10Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS12Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL12Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0211-SS16Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JFCT 0211-SL16Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62, JHCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JFCT 0212-SS10Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL10Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS12Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL12Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS16Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL16Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0212-SS20Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JFCT 0212-SL20Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Color code / die: Red 71, JHCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JFCT 0213-SS10Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL10Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS12Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL12Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS16Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL16Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
JFCT 0213-SS20Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JFCT 0213-SL20Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Blue 76, JHCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 59, L 157
