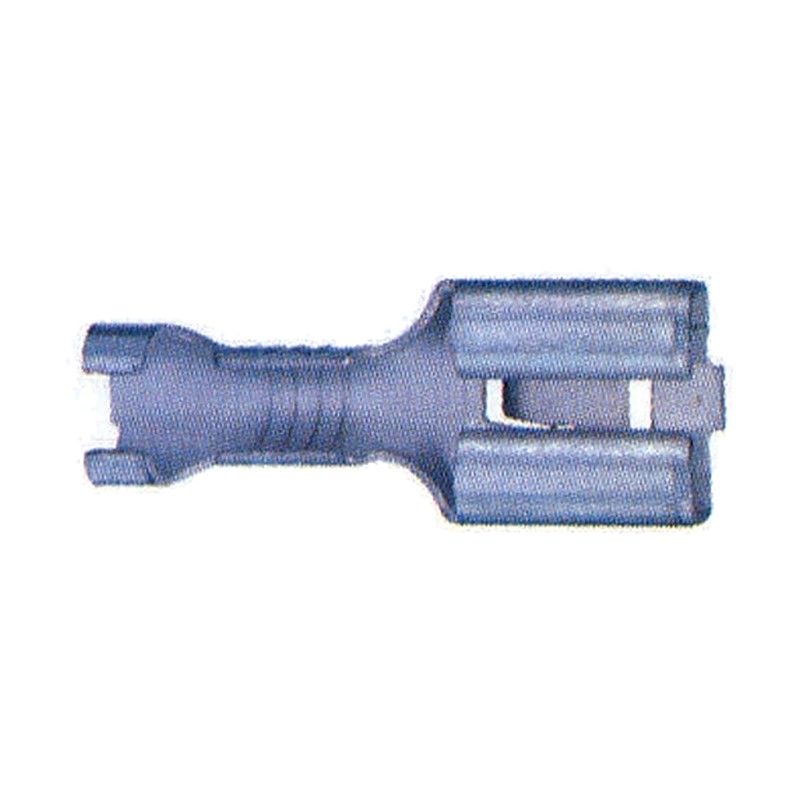

Jeoneo JFT/JMT Non-Insulated Open Barrel Terminals, Brass

Jeoneo JFT/JMT Non-Insulated Open Barrel Terminals, Brass

Non-insulated brass open-barrel terminals (male JMT and female JFT) for 1.3/2.0 mm pin housings, bullet, 110, 187, 46-2 and 250 tab series.

Key features

  • Brass with natural finish or tin plating depending on type
  • Open barrel for machine or hand crimping
  • JFT 2505 and JMT 2505 are special-order items

Specifications

Material Brass
Jeoneo JFT/JMT Non-Insulated Open Barrel Terminals, Brass
JMT 2025 Type: A | Wire range: 20~14 AWG / 0.5~2.5 mm² | Pack qty (reel): 3,000 | Dimensions (mm): L 20.3, E 12.6, W 2.0
JFT 2025 Type: B | Wire range: 20~14 AWG / 0.5~2.5 mm² | Pack qty (reel): 3,000 | Dimensions (mm): L 20.3, E 12.6
JMT 1315 Type: A | Wire range: 20~16 AWG / 0.5~1.5 mm² | Pack qty (reel): 4,000 | Dimensions (mm): L 15.3, E 9.0, W 1.3
JFT 1315 Type: B | Wire range: 20~16 AWG / 0.5~1.5 mm² | Pack qty (reel): 4,000 | Dimensions (mm): L 15.3, E 9.0
JMT 5 Wire range: 20~14 AWG / 0.5~2.5 mm² | Material thickness (mm): 0.5 | Mating diameter (mm): 3.96 | Type: A | Pack qty: 1,000 | Dimensions (mm): W 4.0, F 8.4, L 17.8
JFT 5 Wire range: 20~14 AWG / 0.5~2.5 mm² | Material thickness (mm): 0.4 | Mating diameter (mm): 3.96 | Type: B | Pack qty: 1,000 | Dimensions (mm): W 4.0, F 6.7, L 18.5
JFT 110 Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: B | Material thickness (mm): 0.25 | Pack qty: 2,000 | Dimensions (mm): L 15.3, E 6.3, W 3.8
JMT 110 Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: A | Material thickness (mm): 0.5 | Pack qty: 2,000 | Dimensions (mm): L 20.4, E 12.0, W 2.8
JFT 11012 Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: B-1 | Material thickness (mm): 0.25 | Pack qty: 2,000 | Dimensions (mm): L 15.3, E 6.3, W 3.8
JFT 187 Wire range: 20~16 AWG / 0.5~1.5 mm² | Tab thickness (mm): 0.5 | Material thickness (mm): 0.35 | Pack qty: 1,000 | Dimensions (mm): L 15.4, E 6.3, W 5.8
JFT 4621 Wire range: 18~14 AWG / 0.75~2.5 mm² | Tab thickness (mm): 0.8 | Material thickness (mm): 0.45 | Pack qty: 1,000 | Dimensions (mm): L 19.5, E 7.8, W 7.6
JFT 2502 Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.35 | Type: A | Pack qty: 1,000 | Dimensions (mm): L 19.5, E 7.8, W 7.4
JMT 2502 Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.4 | Type: B | Pack qty: 1,000 | Dimensions (mm): L 24.5, E 14.0, W 6.0
JFT 2505 Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.35 | Type: C | Pack qty: 5,000 | Dimensions (mm): L 19.5, E 7.8, W 7.4
JMT 2505 Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.4 | Type: D | Pack qty: 4,000 | Dimensions (mm): L 24.5, E 14.1, W 6.0
Quick Disconnect TerminalsJeoneo
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFT/JMT Non-Insulated Open Barrel Terminals, Brass

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (15)

JMT 2025, JFT 2025, JMT 1315, JFT 1315, JMT 5, JFT 5, JFT 110, JMT 110, JFT 11012, JFT 187 + 5 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JFT/JMT Non-Insulated Open Barrel Terminals, Brass
0 selected
RFQ List (0)
Product codeSpec
JMT 2025Type: A | Wire range: 20~14 AWG / 0.5~2.5 mm² | Pack qty (reel): 3,000 | Dimensions (mm): L 20.3, E 12.6, W 2.0
JFT 2025Type: B | Wire range: 20~14 AWG / 0.5~2.5 mm² | Pack qty (reel): 3,000 | Dimensions (mm): L 20.3, E 12.6
JMT 1315Type: A | Wire range: 20~16 AWG / 0.5~1.5 mm² | Pack qty (reel): 4,000 | Dimensions (mm): L 15.3, E 9.0, W 1.3
JFT 1315Type: B | Wire range: 20~16 AWG / 0.5~1.5 mm² | Pack qty (reel): 4,000 | Dimensions (mm): L 15.3, E 9.0
JMT 5Wire range: 20~14 AWG / 0.5~2.5 mm² | Material thickness (mm): 0.5 | Mating diameter (mm): 3.96 | Type: A | Pack qty: 1,000 | Dimensions (mm): W 4.0, F 8.4, L 17.8
JFT 5Wire range: 20~14 AWG / 0.5~2.5 mm² | Material thickness (mm): 0.4 | Mating diameter (mm): 3.96 | Type: B | Pack qty: 1,000 | Dimensions (mm): W 4.0, F 6.7, L 18.5
JFT 110Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: B | Material thickness (mm): 0.25 | Pack qty: 2,000 | Dimensions (mm): L 15.3, E 6.3, W 3.8
JMT 110Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: A | Material thickness (mm): 0.5 | Pack qty: 2,000 | Dimensions (mm): L 20.4, E 12.0, W 2.8
JFT 11012Wire range: 20~14 AWG / 0.5~2.5 mm² | Type: B-1 | Material thickness (mm): 0.25 | Pack qty: 2,000 | Dimensions (mm): L 15.3, E 6.3, W 3.8
JFT 187Wire range: 20~16 AWG / 0.5~1.5 mm² | Tab thickness (mm): 0.5 | Material thickness (mm): 0.35 | Pack qty: 1,000 | Dimensions (mm): L 15.4, E 6.3, W 5.8
JFT 4621Wire range: 18~14 AWG / 0.75~2.5 mm² | Tab thickness (mm): 0.8 | Material thickness (mm): 0.45 | Pack qty: 1,000 | Dimensions (mm): L 19.5, E 7.8, W 7.6
JFT 2502Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.35 | Type: A | Pack qty: 1,000 | Dimensions (mm): L 19.5, E 7.8, W 7.4
JMT 2502Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.4 | Type: B | Pack qty: 1,000 | Dimensions (mm): L 24.5, E 14.0, W 6.0
JFT 2505Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.35 | Type: C | Pack qty: 5,000 | Dimensions (mm): L 19.5, E 7.8, W 7.4
JMT 2505Wire range: 18~14 AWG / 0.75~2.5 mm² | Material thickness (mm): 0.4 | Type: D | Pack qty: 4,000 | Dimensions (mm): L 24.5, E 14.1, W 6.0
