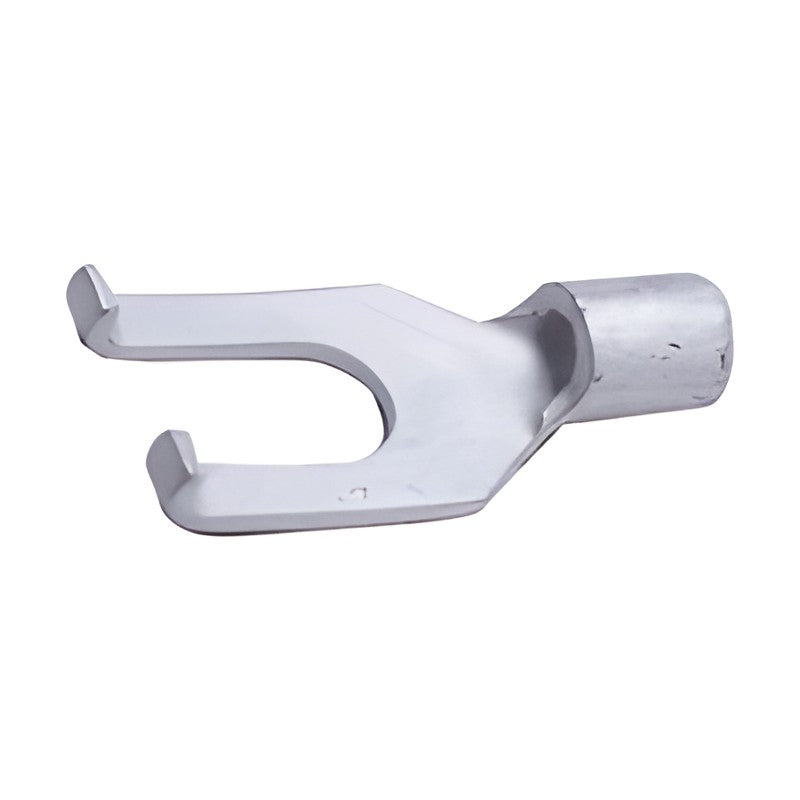

Jeoneo JFT Non-Insulated Flanged Spade Terminals

Jeoneo JFT Non-Insulated Flanged Spade Terminals

Non-insulated tin-plated copper flanged spade (locking fork) terminals with brazed seam for 0.5 to 6 mm² wire.

Key features

  • Flanged (hooked) fork tips help retain the terminal under a loosened screw
  • Oxygen-free copper, tin plated, brazed seam

Specifications

Material Oxygen-free copper
Surface Tin plated
Barrel Brazed seam
Pack qty 1,000
Jeoneo JFT Non-Insulated Flanged Spade Terminals
JFT 153SY Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 5.0, L 13.1, d 1.7, t 0.7
JFT 153Y Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 5.0, L 13.1, d 1.7, t 0.7
JFT 154Y Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 5.0, L 13.3, d 1.7, t 0.7
JFT 154LY Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 1.7, t 0.7
JFT 155Y Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 1.7, t 0.7
JFT 253SY Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 5.0, L 15.0, d 2.3, t 0.8
JFT 253Y Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 5.0, L 15.0, d 2.3, t 0.8
JFT 254Y Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 5.0, L 13.2, d 2.3, t 0.8
JFT 254LY Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 2.3, t 0.8
JFT 255Y Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 2.3, t 0.8
JFT 464Y Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 7.0, L 18.0, d 3.4, t 1.0
JFT 465Y Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 7.0, L 19.0, d 3.4, t 1.0
Fork TerminalsJeoneo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JFT Non-Insulated Flanged Spade Terminals

Brand Jeoneo·Fork Terminals

Available part numbers (12)

JFT 153SY, JFT 153Y, JFT 154Y, JFT 154LY, JFT 155Y, JFT 253SY, JFT 253Y, JFT 254Y, JFT 254LY, JFT 255Y + 2 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JFT Non-Insulated Flanged Spade Terminals
0 selected
RFQ List (0)
Product codeSpec
JFT 153SYWire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 5.0, L 13.1, d 1.7, t 0.7
JFT 153YWire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 5.0, L 13.1, d 1.7, t 0.7
JFT 154YWire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 5.0, L 13.3, d 1.7, t 0.7
JFT 154LYWire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 1.7, t 0.7
JFT 155YWire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 1.7, t 0.7
JFT 253SYWire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 5.0, L 15.0, d 2.3, t 0.8
JFT 253YWire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 5.0, L 15.0, d 2.3, t 0.8
JFT 254YWire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 5.0, L 13.2, d 2.3, t 0.8
JFT 254LYWire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 2.3, t 0.8
JFT 255YWire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 5.0, L 17.0, d 2.3, t 0.8
JFT 464YWire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 7.0, L 18.0, d 3.4, t 1.0
JFT 465YWire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 7.0, L 19.0, d 3.4, t 1.0
