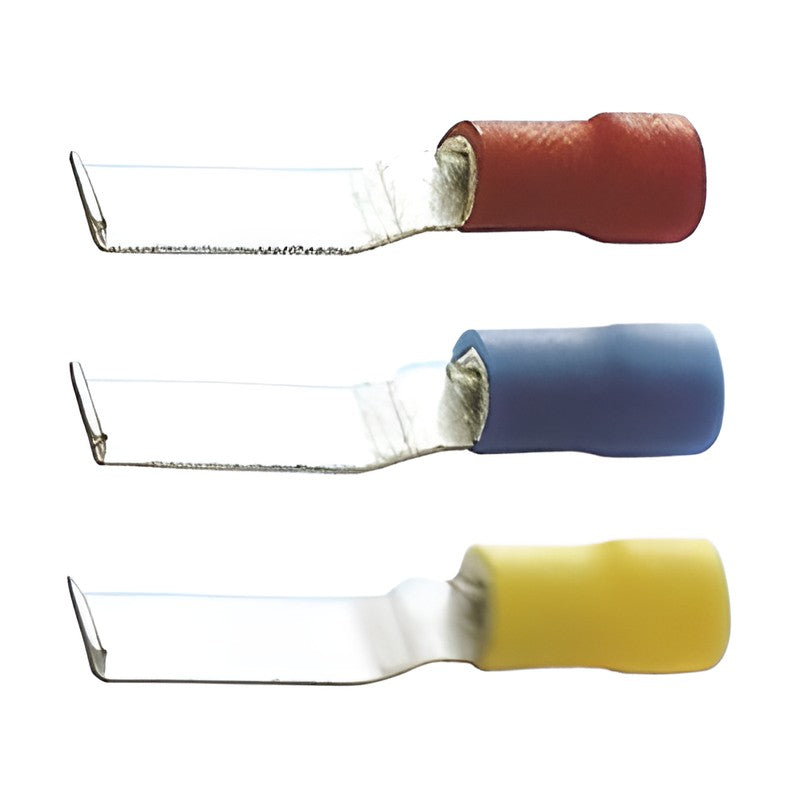

Jeoneo JHBN Nylon-Insulated Hook Blade Terminals

Jeoneo JHBN Nylon-Insulated Hook Blade Terminals

Nylon-insulated copper hook blade terminals for high-temperature applications up to 125 °C; W suffix = brazed seam.

Key features

  • Nylon insulation, UL94 V-2

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation Nylon
Temperature rating Up to 125 °C
Flammability UL94 V-2
Color RED, BLUE, YELLOW
Pack qty 1,000
Jeoneo JHBN Nylon-Insulated Hook Blade Terminals
JHBN 1530 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 1546 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 2530 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 2546 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 630 Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 646 Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 1530W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 1546W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 2530W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 2546W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 630W Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 646W Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
Blade TerminalsJeoneo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JHBN Nylon-Insulated Hook Blade Terminals

Brand Jeoneo·Blade Terminals

Available part numbers (12)

JHBN 1530, JHBN 1546, JHBN 2530, JHBN 2546, JHBN 630, JHBN 646, JHBN 1530W, JHBN 1546W, JHBN 2530W, JHBN 2546W + 2 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JHBN Nylon-Insulated Hook Blade Terminals
0 selected
RFQ List (0)
Product codeSpec
JHBN 1530Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 1546Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 2530Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 2546Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 630Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 646Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 1530WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 1546WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.1, t 0.7
JHBN 2530WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 3.0, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 2546WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 4.6, H 2.1, E 11.0, L 26.5, D 6.6, t 0.8
JHBN 630WBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 3.0, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
JHBN 646WBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Dimensions (mm): B 4.6, H 2.4, E 14.5, L 30.0, D 8.3, t 1.0
