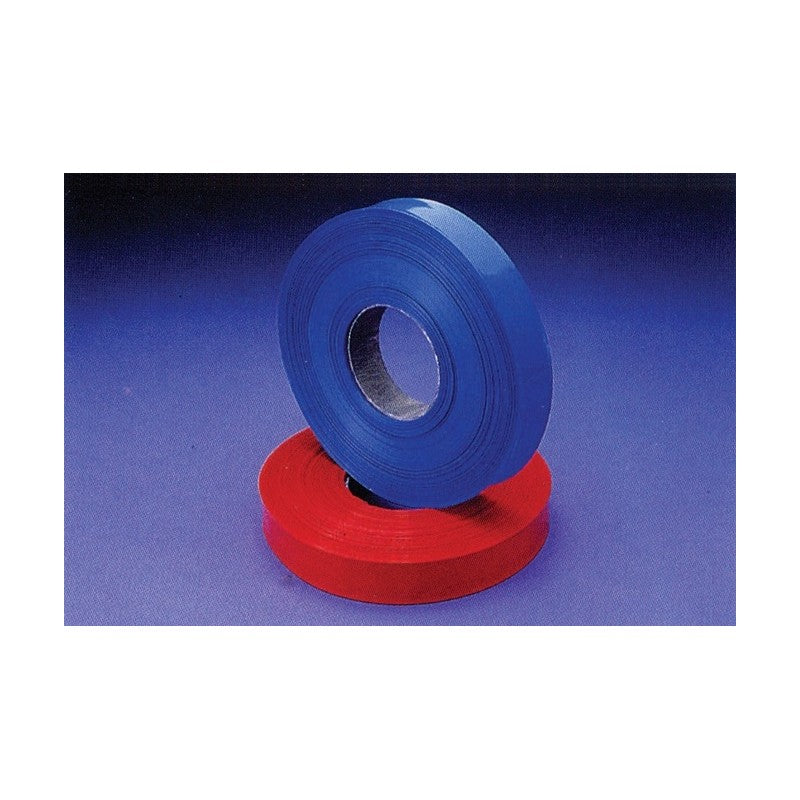

Jeoneo JHS Heat-Shrinking Busbar Sleeves, Rigid PVC
Jeoneo JHS Heat-Shrinking Busbar Sleeves, Rigid PVC
Rigid shrinkable PVC busbar sleeves for color distinction and insulation of busbars in control panels, shrunk with a blower or hot water.
Key features
- Colors: red, white, blue, black, yellow, brown, gray
- Maximum service temperature 80 °C
- Brown and gray: 200 m per roll (JHS-12 to JHS-40)
Specifications
| Material | Rigid shrinkable PVC |
|---|---|
| Max. service temperature | 80 °C |
| Colors | Red, white, blue, black, yellow, brown, gray |
| JHS-12.5 | Lay-flat width A (mm): 12.5 | Converted dia. B (mm): 7.6 | Shrinkable range (mm): 12~5.8 | Package: 150M per roll | |
| JHS-16 | Lay-flat width A (mm): 16 | Converted dia. B (mm): 11 | Shrinkable range (mm): 16~6.6 | Package: 100M per roll | |
| JHS-20 | Lay-flat width A (mm): 20 | Converted dia. B (mm): 13 | Shrinkable range (mm): 20~11 | Package: 100M per roll | |
| JHS-25 | Lay-flat width A (mm): 25 | Converted dia. B (mm): 16 | Shrinkable range (mm): 25~14 | Package: 100M per roll | |
| JHS-30 | Lay-flat width A (mm): 30 | Converted dia. B (mm): 19 | Shrinkable range (mm): 30~16 | Package: 100M per roll | |
| JHS-40 | Lay-flat width A (mm): 40 | Converted dia. B (mm): 25 | Shrinkable range (mm): 40~22 | Package: 100M per roll | |
| JHS-55 | Lay-flat width A (mm): 55 | Converted dia. B (mm): 35 | Shrinkable range (mm): 55~30 | Package: 50M per roll | |
| JHS-65 | Lay-flat width A (mm): 65 | Converted dia. B (mm): 41 | Shrinkable range (mm): 65~35 | Package: 50M per roll | |
| JHS-72 | Lay-flat width A (mm): 72 | Converted dia. B (mm): 45 | Shrinkable range (mm): 72~38 | Package: 50M per roll | |
| JHS-82 | Lay-flat width A (mm): 82 | Converted dia. B (mm): 51 | Shrinkable range (mm): 82~43 | Package: 50M per roll | |
| JHS-92 | Lay-flat width A (mm): 92 | Converted dia. B (mm): 57 | Shrinkable range (mm): 92~47 | Package: 50M per roll | |
| JHS-106 | Lay-flat width A (mm): 106 | Converted dia. B (mm): 66 | Shrinkable range (mm): 106~57 | Package: 50M per roll | |
| JHS-125 | Lay-flat width A (mm): 125 | Converted dia. B (mm): 79 | Shrinkable range (mm): 125~67 | Package: 50M per roll | |
| JHS-150 | Lay-flat width A (mm): 150 | Converted dia. B (mm): 95 | Shrinkable range (mm): 150~90 | Package: 50M per roll | |
| JHS-175 | Lay-flat width A (mm): 175 | Converted dia. B (mm): 111 | Shrinkable range (mm): 175~96 | Package: 50M per roll |
Heat Shrink TubingJeoneo
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JHS Heat-Shrinking Busbar Sleeves, Rigid PVC
Available part numbers (15)
JHS-12.5, JHS-16, JHS-20, JHS-25, JHS-30, JHS-40, JHS-55, JHS-65, JHS-72, JHS-82 + 5 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Heat Shrink Tubing
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JHS-12.5 | Lay-flat width A (mm): 12.5 | Converted dia. B (mm): 7.6 | Shrinkable range (mm): 12~5.8 | Package: 150M per roll | ||
| JHS-16 | Lay-flat width A (mm): 16 | Converted dia. B (mm): 11 | Shrinkable range (mm): 16~6.6 | Package: 100M per roll | ||
| JHS-20 | Lay-flat width A (mm): 20 | Converted dia. B (mm): 13 | Shrinkable range (mm): 20~11 | Package: 100M per roll | ||
| JHS-25 | Lay-flat width A (mm): 25 | Converted dia. B (mm): 16 | Shrinkable range (mm): 25~14 | Package: 100M per roll | ||
| JHS-30 | Lay-flat width A (mm): 30 | Converted dia. B (mm): 19 | Shrinkable range (mm): 30~16 | Package: 100M per roll | ||
| JHS-40 | Lay-flat width A (mm): 40 | Converted dia. B (mm): 25 | Shrinkable range (mm): 40~22 | Package: 100M per roll | ||
| JHS-55 | Lay-flat width A (mm): 55 | Converted dia. B (mm): 35 | Shrinkable range (mm): 55~30 | Package: 50M per roll | ||
| JHS-65 | Lay-flat width A (mm): 65 | Converted dia. B (mm): 41 | Shrinkable range (mm): 65~35 | Package: 50M per roll | ||
| JHS-72 | Lay-flat width A (mm): 72 | Converted dia. B (mm): 45 | Shrinkable range (mm): 72~38 | Package: 50M per roll | ||
| JHS-82 | Lay-flat width A (mm): 82 | Converted dia. B (mm): 51 | Shrinkable range (mm): 82~43 | Package: 50M per roll | ||
| JHS-92 | Lay-flat width A (mm): 92 | Converted dia. B (mm): 57 | Shrinkable range (mm): 92~47 | Package: 50M per roll | ||
| JHS-106 | Lay-flat width A (mm): 106 | Converted dia. B (mm): 66 | Shrinkable range (mm): 106~57 | Package: 50M per roll | ||
| JHS-125 | Lay-flat width A (mm): 125 | Converted dia. B (mm): 79 | Shrinkable range (mm): 125~67 | Package: 50M per roll | ||
| JHS-150 | Lay-flat width A (mm): 150 | Converted dia. B (mm): 95 | Shrinkable range (mm): 150~90 | Package: 50M per roll | ||
| JHS-175 | Lay-flat width A (mm): 175 | Converted dia. B (mm): 111 | Shrinkable range (mm): 175~96 | Package: 50M per roll |
Need a different model, or a part not listed here? Send us your parts list →
