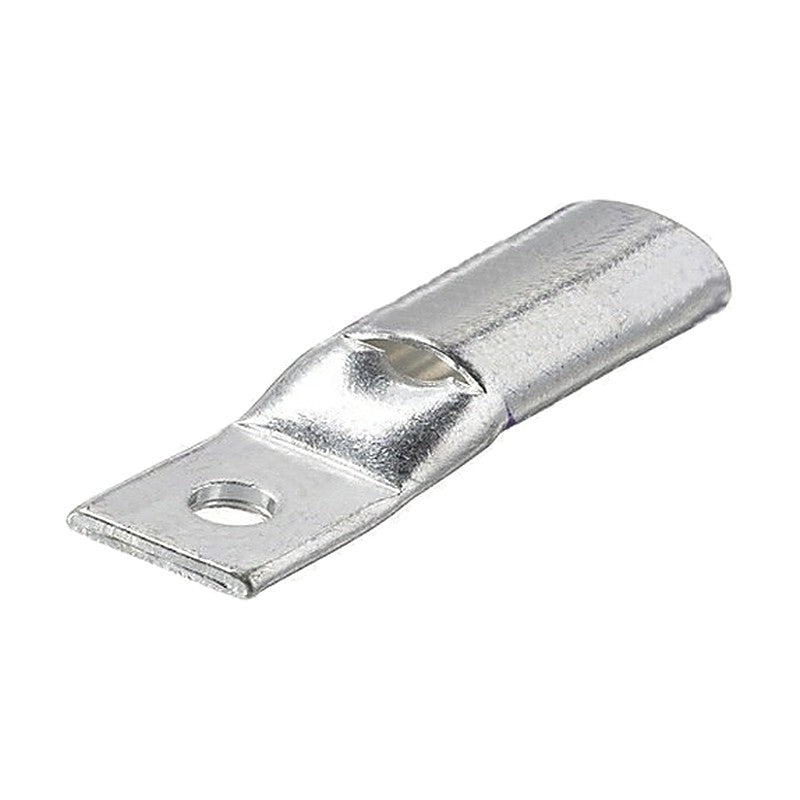

Jeoneo JNCO Narrow-Tongue Tubular Cable Lugs, One Hole

Jeoneo JNCO Narrow-Tongue Tubular Cable Lugs, One Hole

One-hole narrow-tongue tubular copper cable lugs (Type JNCO) with inspection hole for 6 to 500 mm² code and flex conductors.

Key features

  • Narrow tongue for compact terminals
  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 and class 5 conductors

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2 and class 5
Holes 1
Jeoneo JNCO Narrow-Tongue Tubular Cable Lugs, One Hole
JNCO 0160-03 Code wire: 12~10 AWG / 6 mm² | Flex wire: 12~10 AWG / 6 mm² | Stud size: M3 | Pack qty: 500 | Dimensions (mm): W 6, d 4, D 6.0, A 12, B 4, E 8, L 24
JNCO 0101-04 Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M4 | Color code / die: Red 21/JOCD-8 | Pack qty: 500 | Dimensions (mm): W 7.4, d 4.7, D 6.7, A 12, B 4, E 11, L 28
JNCO 0102-04 Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M4 | Color code / die: Blue 24/JOCD-6 | Pack qty: 300 | Dimensions (mm): W 7.4, d 5.4, D 7.4, A 13, B 4, E 11, L 28
JNCO 0103-05 Code wire: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29/, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 10.2, d 6.7, D 9.0, A 15, B 6, E 12, L 33
JNCO 0103-06 Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29/, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 10.2, d 6.7, D 9.0, A 15, B 6, E 12, L 33
JNCO 0104-06 Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33/, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 12.4, d 8.1, D 10.6, A 16, B 6, E 20, L 42
JNCO 0104-08 Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33/, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 14, d 8.1, D 10.6, A 16, B 7, E 20, L 42
JNCO 0105-06 Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 12.4, d 9.5, D 12, A 18, B 7, E 22, L 47
JNCO 0105-08 Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 15, d 9.5, D 12, A 18, B 8, E 22, L 47
JNCO 0105-10 Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 15, d 9.5, D 12, A 22, B 9, E 22, L 51
JNCO 0106-08 Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 13.2, d 10.2, D 13.2, A 18, B 7, E 24, L 49
JNCO 0106-10 Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 17, d 10.2, D 13.2, A 18, B 8, E 24, L 49
JNCO 0106-12 Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 17, d 10.2, D 13.2, A 22, B 9, E 24, L 53
JNCO 0107-08 Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 14.5, d 11.3, D 14.6, A 22, B 7, E 25, L 54
JNCO 0107-10 Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 17, d 11.3, D 14.6, A 22, B 8, E 25, L 54
JNCO 0107-12 Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 17, d 11.3, D 14.6, A 26, B 9, E 25, L 58
JNCO 0108-08 Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0108-10 Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0108-10P Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 16.2, d 13.5, D 17, A 22, B 10, E 29, L 59.4
JNCO 0108-12 Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0109-08 Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0109-10 Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0109-10P Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 22, B 10, E 30.2, L 62.2
JNCO 0109-12 Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0110-08 Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0110-10 Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0110-10P Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 22, B 10, E 31.7, L 64.7
JNCO 0110-12 Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0111-08 Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-10 Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-10P Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 22, d 17, D 21, A 25, B 10, E 36.5, L 74.6
JNCO 0111-12 Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-16 Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0112-08 Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M8 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0112-10 Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0112-10P Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 22.3, d 19, D 23.5, A 25, B 10, E 36.5, L 75.5
JNCO 0112-12 Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0113-08 Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M8 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0113-10 Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0113-10P Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 22.3, d 21, D 26, A 25, B 10, E 38.1, L 81.7
JNCO 0113-12 Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0114-08 Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M8 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0114-10 Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0114-10P Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 26.9, d 22, D 27.4, A 25, B 11, 11, E 44.4, L 87.4
JNCO 0114-12 Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0115-08 Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M8 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0115-10 Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0115-10P Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 28, B 10, E 46, L 94
JNCO 0115-12 Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0116-10 Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M10 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-12 Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-14 Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M14 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-16 Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0117-10 Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M10 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-12 Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-14 Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M14 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-16 Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
Cable LugsJeoneo
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JNCO Narrow-Tongue Tubular Cable Lugs, One Hole

Brand Jeoneo·Cable Lugs

Available part numbers (57)

JNCO 0160-03, JNCO 0101-04, JNCO 0102-04, JNCO 0103-05, JNCO 0103-06, JNCO 0104-06, JNCO 0104-08, JNCO 0105-06, JNCO 0105-08, JNCO 0105-10 + 47 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JNCO Narrow-Tongue Tubular Cable Lugs, One Hole
0 selected
RFQ List (0)
Product codeSpec
JNCO 0160-03Code wire: 12~10 AWG / 6 mm² | Flex wire: 12~10 AWG / 6 mm² | Stud size: M3 | Pack qty: 500 | Dimensions (mm): W 6, d 4, D 6.0, A 12, B 4, E 8, L 24
JNCO 0101-04Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M4 | Color code / die: Red 21/JOCD-8 | Pack qty: 500 | Dimensions (mm): W 7.4, d 4.7, D 6.7, A 12, B 4, E 11, L 28
JNCO 0102-04Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M4 | Color code / die: Blue 24/JOCD-6 | Pack qty: 300 | Dimensions (mm): W 7.4, d 5.4, D 7.4, A 13, B 4, E 11, L 28
JNCO 0103-05Code wire: 4 AWG / 25 mm² | Stud size: M5 | Color code / die: Gray 29/, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 10.2, d 6.7, D 9.0, A 15, B 6, E 12, L 33
JNCO 0103-06Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29/, JOCD-4 | Pack qty: 200 | Dimensions (mm): W 10.2, d 6.7, D 9.0, A 15, B 6, E 12, L 33
JNCO 0104-06Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33/, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 12.4, d 8.1, D 10.6, A 16, B 6, E 20, L 42
JNCO 0104-08Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33/, JOCD-2 | Pack qty: 150 | Dimensions (mm): W 14, d 8.1, D 10.6, A 16, B 7, E 20, L 42
JNCO 0105-06Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 12.4, d 9.5, D 12, A 18, B 7, E 22, L 47
JNCO 0105-08Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 15, d 9.5, D 12, A 18, B 8, E 22, L 47
JNCO 0105-10Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37/, JOCD-1 | Pack qty: 100 | Dimensions (mm): W 15, d 9.5, D 12, A 22, B 9, E 22, L 51
JNCO 0106-08Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 13.2, d 10.2, D 13.2, A 18, B 7, E 24, L 49
JNCO 0106-10Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 17, d 10.2, D 13.2, A 18, B 8, E 24, L 49
JNCO 0106-12Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Pink 42/, JOCD-1/0 | Pack qty: 100 | Dimensions (mm): W 17, d 10.2, D 13.2, A 22, B 9, E 24, L 53
JNCO 0107-08Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 14.5, d 11.3, D 14.6, A 22, B 7, E 25, L 54
JNCO 0107-10Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 17, d 11.3, D 14.6, A 22, B 8, E 25, L 54
JNCO 0107-12Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Black 45/, JOCD-2/0 | Pack qty: 80 | Dimensions (mm): W 17, d 11.3, D 14.6, A 26, B 9, E 25, L 58
JNCO 0108-08Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0108-10Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0108-10PCode wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 16.2, d 13.5, D 17, A 22, B 10, E 29, L 59.4
JNCO 0108-12Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48/, JOCD-3/0 | Pack qty: 50 | Dimensions (mm): W 18, d 13.5, D 17, A 30, B 9, E 25, L 64
JNCO 0109-08Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0109-10Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0109-10PCode wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 22, B 10, E 30.2, L 62.2
JNCO 0109-12Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 50/, JOCD-4/0 | Pack qty: 40 | Dimensions (mm): W 18, d 14, D 18, A 30, B 9, E 25, L 64
JNCO 0110-08Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0110-10Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0110-10PCode wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 22, B 10, E 31.7, L 64.7
JNCO 0110-12Code wire: 250 Kcmil / 120 mm² | Flex wire: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Purple 54/, JOCD-250 | Pack qty: 40 | Dimensions (mm): W 19.5, d 15.2, D 19, A 31, B 15, E 27, L 73
JNCO 0111-08Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M8 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-10Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-10PCode wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M10 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 22, d 17, D 21, A 25, B 10, E 36.5, L 74.6
JNCO 0111-12Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M12 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0111-16Code wire: 300 Kcmil / 150 mm² | Flex wire: 250 Kcmil / 120 mm² | Stud size: M16 | Color code / die: Yellow 62/, JOCD-300 | Pack qty: 40 | Dimensions (mm): W 24, d 17, D 21, A 33, B 15, E 30, L 78
JNCO 0112-08Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M8 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0112-10Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0112-10PCode wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M10 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 22.3, d 19, D 23.5, A 25, B 10, E 36.5, L 75.5
JNCO 0112-12Code wire: 350 Kcmil / 185 mm² | Flex wire: 300 Kcmil / 150 mm² | Stud size: M12 | Color code / die: Red 71/, JOCD-350 | Pack qty: 25 | Dimensions (mm): W 24.4, d 19, D 23.5, A 34, B 15, E 35, L 84
JNCO 0113-08Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M8 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0113-10Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0113-10PCode wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M10 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 22.3, d 21, D 26, A 25, B 10, E 38.1, L 81.7
JNCO 0113-12Code wire: 400 Kcmil / 200 mm² | Flex wire: 350 Kcmil / 185 mm² | Stud size: M12 | Color code / die: JOCD-400 | Pack qty: 15 | Dimensions (mm): W 24.4, d 21, D 26, A 35, B 15, E 40, L 90
JNCO 0114-08Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M8 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0114-10Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0114-10PCode wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M10 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 26.9, d 22, D 27.4, A 25, B 11, 11, E 44.4, L 87.4
JNCO 0114-12Code wire: 500 Kcmil / 240 mm² | Flex wire: 400 Kcmil / 200 mm² | Stud size: M12 | Color code / die: Brown 87/, JOCD-500 | Pack qty: 15 | Dimensions (mm): W 28.5, d 22, D 27.4, A 38, B 18, E 42, L 98
JNCO 0115-08Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M8 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0115-10Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0115-10PCode wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M10 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 28, B 10, E 46, L 94
JNCO 0115-12Code wire: 600 Kcmil / 300 mm² | Flex wire: 500 Kcmil / 240 mm² | Stud size: M12 | Color code / die: 94/, JOCD-600 | Pack qty: 10 | Dimensions (mm): W 28.5, d 24, D 30.5, A 38, B 20, E 46, L 104
JNCO 0116-10Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M10 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-12Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M12 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-14Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M14 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0116-16Code wire: 750 Kcmil / 400 mm² | Flex wire: 600 Kcmil / 300 mm² | Stud size: M16 | Color code / die: Black 106/, JOCD-750 | Pack qty: 5 | Dimensions (mm): W 33, d 27, D 35, A 45, B 23, E 60, L 128
JNCO 0117-10Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M10 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-12Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M12 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-14Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M14 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
JNCO 0117-16Code wire: 1000 Kcmil / 500 mm² | Flex wire: 750 Kcmil / 400 mm² | Stud size: M16 | Color code / die: 125/, JOCD-1000 | Pack qty: 4 | Dimensions (mm): W 142, d 31, D 40, A 45, B 27, E 60, L 132
