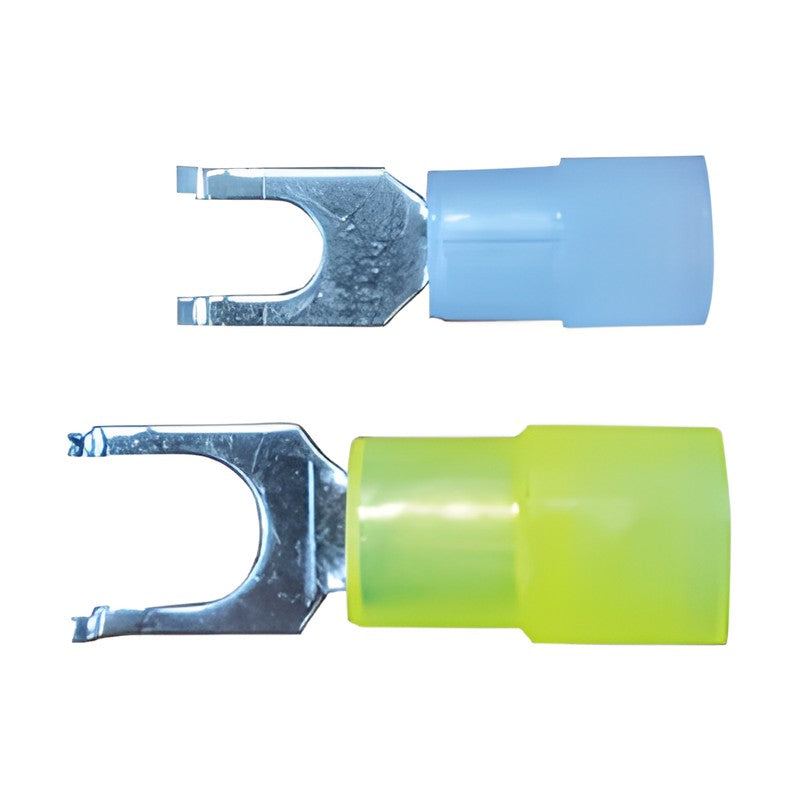

Jeoneo JNFT Nylon-Insulated Flanged Spade Terminals

Jeoneo JNFT Nylon-Insulated Flanged Spade Terminals

Nylon-insulated copper flanged spade (locking fork) terminals for high-temperature applications up to 125 °C; W suffix = brazed seam.

Key features

  • Flanged fork tips for secure retention
  • Nylon insulation, UL94 V-2

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation Nylon
Temperature rating Up to 125 °C
Flammability UL94 V-2
Color RED, BLUE, YELLOW
Pack qty 1,000
Jeoneo JNFT Nylon-Insulated Flanged Spade Terminals
JNFT 153SY Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 18.1, D 6.1, t 0.7
JNFT 153Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 11, L 18.1, D 6.1, t 0.7
JNFT 154Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.3, D 6.1, t 0.7
JNFT 154LY Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 155Y Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 253SY Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 20.0, D 6.6, t 0.8
JNFT 253Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 11, L 20.0, D 6.6, t 0.8
JNFT 254Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.2, D 6.6, t 0.8
JNFT 254LY Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 255Y Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 464Y Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14.5, L 25.0, D 8.3, t 1.0
JNFT 465Y Brazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14.5, L 26.0, D 8.3, t 1.0
JNFT 153SYW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 18.1, D 6.1, t 0.7
JNFT 153YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 11, L 18.1, D 6.1, t 0.7
JNFT 154YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.3, D 6.1, t 0.7
JNFT 154LYW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 155YW Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 253SYW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 20.0, D 6.6, t 0.8
JNFT 253YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 11, L 20.0, D 6.6, t 0.8
JNFT 254YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.2, D 6.6, t 0.8
JNFT 254LYW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 255YW Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 464YW Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14.5, L 25.0, D 8.3, t 1.0
JNFT 465YW Brazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14.5, L 26.0, D 8.3, t 1.0
Fork TerminalsJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JNFT Nylon-Insulated Flanged Spade Terminals

Brand Jeoneo·Fork Terminals

Available part numbers (24)

JNFT 153SY, JNFT 153Y, JNFT 154Y, JNFT 154LY, JNFT 155Y, JNFT 253SY, JNFT 253Y, JNFT 254Y, JNFT 254LY, JNFT 255Y + 14 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JNFT Nylon-Insulated Flanged Spade Terminals
0 selected
RFQ List (0)
Product codeSpec
JNFT 153SYBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 18.1, D 6.1, t 0.7
JNFT 153YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 11, L 18.1, D 6.1, t 0.7
JNFT 154YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.3, D 6.1, t 0.7
JNFT 154LYBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 155YBrazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 253SYBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 20.0, D 6.6, t 0.8
JNFT 253YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 11, L 20.0, D 6.6, t 0.8
JNFT 254YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.2, D 6.6, t 0.8
JNFT 254LYBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 255YBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 464YBrazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14.5, L 25.0, D 8.3, t 1.0
JNFT 465YBrazed seam: No | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14.5, L 26.0, D 8.3, t 1.0
JNFT 153SYWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 18.1, D 6.1, t 0.7
JNFT 153YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 7.2, E 11, L 18.1, D 6.1, t 0.7
JNFT 154YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.3, D 6.1, t 0.7
JNFT 154LYWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 155YWBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.1, t 0.7
JNFT 253SYWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 6.4, E 11, L 20.0, D 6.6, t 0.8
JNFT 253YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Dimensions (mm): B 8.0, E 11, L 20.0, D 6.6, t 0.8
JNFT 254YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 7.0, E 11, L 18.2, D 6.6, t 0.8
JNFT 254LYWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 255YWBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Dimensions (mm): B 8.0, E 11, L 22.0, D 6.6, t 0.8
JNFT 464YWBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Dimensions (mm): B 8.5, E 14.5, L 25.0, D 8.3, t 1.0
JNFT 465YWBrazed seam: Yes | Wire range: 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Dimensions (mm): B 9.0, E 14.5, L 26.0, D 8.3, t 1.0
