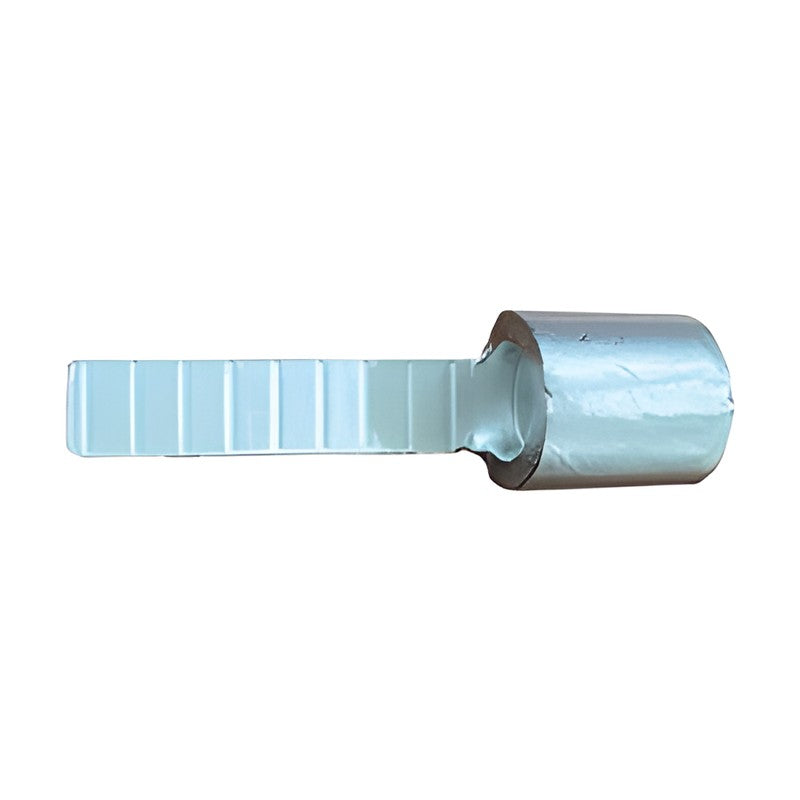

Jeoneo JOBN Non-Insulated Blade Terminals

Jeoneo JOBN Non-Insulated Blade Terminals

Non-insulated tin-plated copper blade terminals with brazed seam for 0.5 to 35 mm² wire.

Key features

  • Oxygen-free copper, tin plated
  • Brazed seam barrel

Specifications

Material Oxygen-free copper
Surface Tin plated
Barrel Brazed seam
Jeoneo JOBN Non-Insulated Blade Terminals
JOBN 152W Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 1.7, t 0.7
JOBN 153W Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 15.0, E 5.0, d 1.7, t 0.7
JOBN 154W Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 1.7, t 0.7
JOBN 155W Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 1.7, t 0.7
JOBN 156W Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 19.0, E 5.0, d 1.7, t 0.7
JOBN 252W Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.3, t 0.8
JOBN 253W Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 17.0, E 5.0, d 2.3, t 0.8
JOBN 254W Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.3, t 0.8
JOBN 255W Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.3, t 0.8
JOBN 256W Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 13.5, E 5.0, d 2.3, t 0.8
JOBN 4W Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 20.0, E 6.0, d 3.0, t 0.9
JOBN 4-2W Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 16.5, E 6.0, d 3.0, t 0.9
JOBN 4-3W Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 20.5, E 6.0, d 3.0, t 0.9
JOBN 6-1W Wire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 21.0, E 7.0, d 3.4, t 1.0
JOBN 6W Wire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 21.4, E 7.0, d 3.4, t 1.0
JOBN 10W Wire range: 8 AWG / 10 mm² | Pack qty: 500 | Dimensions (mm): B 5.8, L 26.5, E 8.5, d 4.5, t 1.15
JOBN 16W Wire range: 6 AWG / 16 mm² | Pack qty: 300 | Dimensions (mm): B 7.3, L 32.5, E 12.5, d 5.8, t 1.45
JOBN 25W Wire range: 4 AWG / 25 mm² | Pack qty: 300 | Dimensions (mm): B 8.0, L 32.5, E 12.5, d 7.7, t 1.7
JOBN 35W Wire range: 2 AWG / 35 mm² | Pack qty: 200 | Dimensions (mm): B 8.0, L 34.5, E 14.5, d 9.4, t 1.8
Blade TerminalsJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOBN Non-Insulated Blade Terminals

Brand Jeoneo·Blade Terminals

Available part numbers (19)

JOBN 152W, JOBN 153W, JOBN 154W, JOBN 155W, JOBN 156W, JOBN 252W, JOBN 253W, JOBN 254W, JOBN 255W, JOBN 256W + 9 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOBN Non-Insulated Blade Terminals
0 selected
RFQ List (0)
Product codeSpec
JOBN 152WWire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 1.7, t 0.7
JOBN 153WWire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 15.0, E 5.0, d 1.7, t 0.7
JOBN 154WWire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 1.7, t 0.7
JOBN 155WWire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 1.7, t 0.7
JOBN 156WWire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 19.0, E 5.0, d 1.7, t 0.7
JOBN 252WWire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.3, t 0.8
JOBN 253WWire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 17.0, E 5.0, d 2.3, t 0.8
JOBN 254WWire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.3, t 0.8
JOBN 255WWire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.3, t 0.8
JOBN 256WWire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 13.5, E 5.0, d 2.3, t 0.8
JOBN 4WWire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 20.0, E 6.0, d 3.0, t 0.9
JOBN 4-2WWire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 16.5, E 6.0, d 3.0, t 0.9
JOBN 4-3WWire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 20.5, E 6.0, d 3.0, t 0.9
JOBN 6-1WWire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 21.0, E 7.0, d 3.4, t 1.0
JOBN 6WWire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 21.4, E 7.0, d 3.4, t 1.0
JOBN 10WWire range: 8 AWG / 10 mm² | Pack qty: 500 | Dimensions (mm): B 5.8, L 26.5, E 8.5, d 4.5, t 1.15
JOBN 16WWire range: 6 AWG / 16 mm² | Pack qty: 300 | Dimensions (mm): B 7.3, L 32.5, E 12.5, d 5.8, t 1.45
JOBN 25WWire range: 4 AWG / 25 mm² | Pack qty: 300 | Dimensions (mm): B 8.0, L 32.5, E 12.5, d 7.7, t 1.7
JOBN 35WWire range: 2 AWG / 35 mm² | Pack qty: 200 | Dimensions (mm): B 8.0, L 34.5, E 14.5, d 9.4, t 1.8
