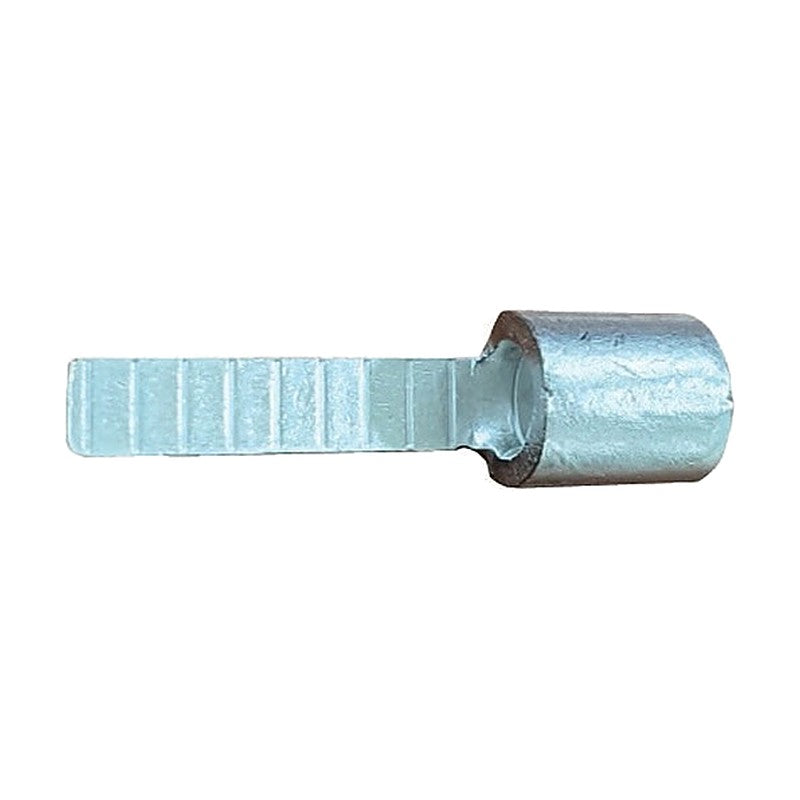

Jeoneo JOBN Non-Insulated Blade Terminals, Electrolytic Copper
Jeoneo JOBN Non-Insulated Blade Terminals, Electrolytic Copper
Non-insulated tin-plated electrolytic copper blade terminals for 1.5 to 35 mm² wire, with or without brazed seam.
Key features
- Electrolytic copper, tin plated
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| JOBN 152 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.0, t 0.65 | |
| JOBN 153 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 15.0, E 5.0, d 2.0, t 0.65 | |
| JOBN 154 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.0, t 0.65 | |
| JOBN 155 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.0, t 0.65 | |
| JOBN 252 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.4, t 0.65 | |
| JOBN 253 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 17.0, E 5.0, d 2.4, t 0.65 | |
| JOBN 254 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.4, t 0.65 | |
| JOBN 255 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.4, t 0.65 | |
| JOBN 4 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 20.0, E 6.0, d 3.0, t 0.75 | |
| JOBN 4-2 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 16.5, E 6.0, d 3.0, t 0.75 | |
| JOBN 4-3 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 20.5, E 6.0, d 3.0, t 0.75 | |
| JOBN 6 | Wire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 21.4, E 7.0, d 3.6, t 0.8 | |
| JOBN 10 | Wire range: 8 AWG / 10 mm² | Pack qty: 500 | Dimensions (mm): B 5.8, L 26.5, E 8.5, d 4.8, t 0.9 | |
| JOBN 16 | Wire range: 6 AWG / 16 mm² | Pack qty: 300 | Dimensions (mm): B 7.3, L 32.5, E 12.5, d 6.8, t 1.1 | |
| JOBN 25 | Wire range: 4 AWG / 25 mm² | Pack qty: 300 | Dimensions (mm): B 8.0, L 32.5, E 12.5, d 8.6, t 1.2 | |
| JOBN 35 | Wire range: 2 AWG / 35 mm² | Pack qty: 200 | Dimensions (mm): B 8.0, L 34.5, E 14.5, d 9.7, t 1.4 |
Blade TerminalsJeoneo
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOBN Non-Insulated Blade Terminals, Electrolytic Copper
Available part numbers (16)
JOBN 152, JOBN 153, JOBN 154, JOBN 155, JOBN 252, JOBN 253, JOBN 254, JOBN 255, JOBN 4, JOBN 4-2 + 6 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Blade Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOBN 152 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.0, t 0.65 | ||
| JOBN 153 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 15.0, E 5.0, d 2.0, t 0.65 | ||
| JOBN 154 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.0, t 0.65 | ||
| JOBN 155 | Wire range: 20~16 AWG / 1.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.0, t 0.65 | ||
| JOBN 252 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 22.0, E 5.0, d 2.4, t 0.65 | ||
| JOBN 253 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 17.0, E 5.0, d 2.4, t 0.65 | ||
| JOBN 254 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 23.5, E 5.0, d 2.4, t 0.65 | ||
| JOBN 255 | Wire range: 16~14 AWG / 2.5 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.5, E 5.0, d 2.4, t 0.65 | ||
| JOBN 4 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 20.0, E 6.0, d 3.0, t 0.75 | ||
| JOBN 4-2 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 16.5, E 6.0, d 3.0, t 0.75 | ||
| JOBN 4-3 | Wire range: 14~12 AWG / 4 mm² | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 20.5, E 6.0, d 3.0, t 0.75 | ||
| JOBN 6 | Wire range: 12~10 AWG / 6 mm² | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 21.4, E 7.0, d 3.6, t 0.8 | ||
| JOBN 10 | Wire range: 8 AWG / 10 mm² | Pack qty: 500 | Dimensions (mm): B 5.8, L 26.5, E 8.5, d 4.8, t 0.9 | ||
| JOBN 16 | Wire range: 6 AWG / 16 mm² | Pack qty: 300 | Dimensions (mm): B 7.3, L 32.5, E 12.5, d 6.8, t 1.1 | ||
| JOBN 25 | Wire range: 4 AWG / 25 mm² | Pack qty: 300 | Dimensions (mm): B 8.0, L 32.5, E 12.5, d 8.6, t 1.2 | ||
| JOBN 35 | Wire range: 2 AWG / 35 mm² | Pack qty: 200 | Dimensions (mm): B 8.0, L 34.5, E 14.5, d 9.7, t 1.4 |
Need a different model, or a part not listed here? Send us your parts list →
