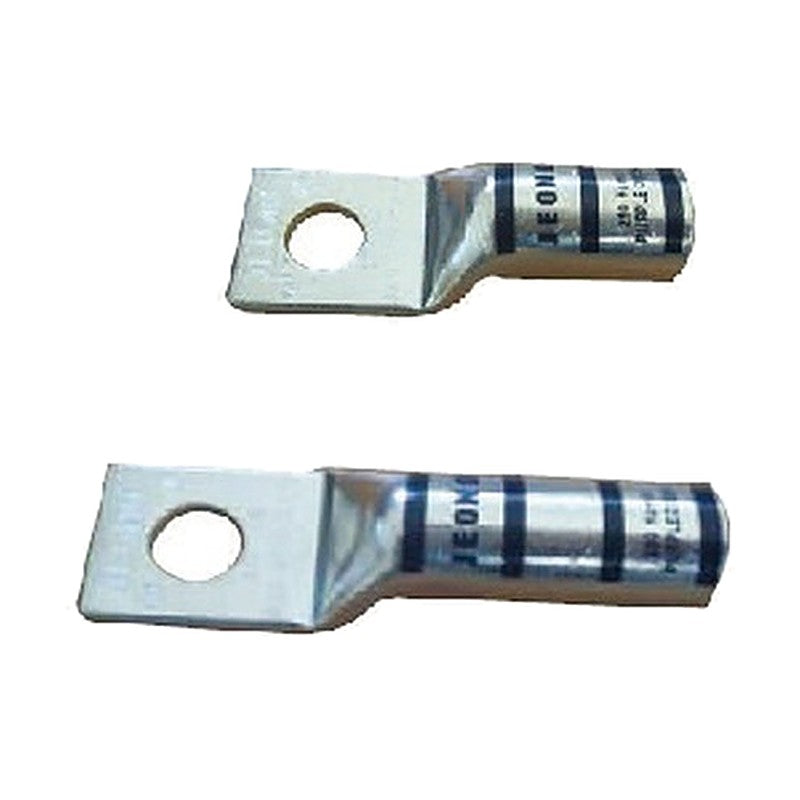

Jeoneo JOBO Tubular Cable Lugs for Ground Busbar, One Hole
Jeoneo JOBO Tubular Cable Lugs for Ground Busbar, One Hole
One-hole tubular copper cable lugs (Type BO) with inspection hole for ground busbar connections, 10 to 100 mm², standard (S) or long (L) barrel.
Key features
- With inspection hole
- Color coded to show proper die number and color
- UL listed 486A-486B, up to 35 kV
Specifications
| Material | Electrolytic copper (TPC) |
|---|---|
| Surface | Tin plated |
| Tongue form | Square |
| Holes | 1 |
| JOBO 0101-SS06 | Barrel form: Standard | Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21,, JOCD-8 | Dimensions (mm): W 10, d1 4.5, E 15, L 33 | |
| JOBO 0101-SL06 | Barrel form: Long | Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21,, JOCD-8 | Dimensions (mm): W 10, d1 4.5, E 19, L 37 | |
| JOBO 0102-SS06 | Barrel form: Standard | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 12, d1 5.4, E 17, L 36 | |
| JOBO 0102-SL06 | Barrel form: Long | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 12, d1 5.4, E 25, L 43 | |
| JOBO 0102-SS10 | Barrel form: Standard | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 15.5, d1 5.4, E 17, L 42 | |
| JOBO 0102-SL10 | Barrel form: Long | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 15.5, d1 5.4, E 25, L 49 | |
| JOBO 0103-SS06 | Barrel form: Standard | Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 13, d1 6.7, E 18, L 41 | |
| JOBO 0103-SL06 | Barrel form: Long | Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 13, d1 6.7, E 25, L 48 | |
| JOBO 0103-SS10 | Barrel form: Standard | Code wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 15.5, d1 6.7, E 18, L 45 | |
| JOBO 0103-SL10 | Barrel form: Long | Code wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 15.5, d1 6.7, E 25, L 52 | |
| JOBO 0104-SS06 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | |
| JOBO 0104-SL06 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | |
| JOBO 0104-SS08 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | |
| JOBO 0104-SL08 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | |
| JOBO 0104-SS10 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | |
| JOBO 0104-SL10 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | |
| JOBO 0105-SS10 | Barrel form: Standard | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37,, JOCD-1 | Dimensions (mm): W 18, d1 9.5, E 21, L 52 | |
| JOBO 0105-SL10 | Barrel form: Long | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37,, JOCD-1 | Dimensions (mm): W 18, d1 9.5, E 35, L 65 | |
| JOBO 0106-SS10 | Barrel form: Standard | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42,, JOCD-1/0 | Dimensions (mm): W 19, d1 10.2, E 23, L 56 | |
| JOBO 0106-SL10 | Barrel form: Long | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42,, JOCD-1/0 | Dimensions (mm): W 19, d1 10.2, E 36, L 69 | |
| JOBO 0107-SS10 | Barrel form: Standard | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45,, JOCD-2/0 | Dimensions (mm): W 21, d1 11.3, E 23.5, L 56 | |
| JOBO 0107-SL10 | Barrel form: Long | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45,, JOCD-2/0 | Dimensions (mm): W 21, d1 11.3, E 36, L 68.5 | |
| JOBO 0108-SS12 | Barrel form: Standard | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-3/0 | Dimensions (mm): W 25, d1 13.5, E 26, L 66 | |
| JOBO 0108-SL12 | Barrel form: Long | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-3/0 | Dimensions (mm): W 25, d1 13.5, E 38.5, L 79.5 | |
| JOBO 0109-SS12 | Barrel form: Standard | Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-4/0 | Dimensions (mm): W 26, d1 14, E 29, L 69.5 | |
| JOBO 0109-SL12 | Barrel form: Long | Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-4/0 | Dimensions (mm): W 26, d1 14, E 43, L 82 |
Cable LugsJeoneo
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOBO Tubular Cable Lugs for Ground Busbar, One Hole
Available part numbers (26)
JOBO 0101-SS06, JOBO 0101-SL06, JOBO 0102-SS06, JOBO 0102-SL06, JOBO 0102-SS10, JOBO 0102-SL10, JOBO 0103-SS06, JOBO 0103-SL06, JOBO 0103-SS10, JOBO 0103-SL10 + 16 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOBO 0101-SS06 | Barrel form: Standard | Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21,, JOCD-8 | Dimensions (mm): W 10, d1 4.5, E 15, L 33 | ||
| JOBO 0101-SL06 | Barrel form: Long | Code wire: 8 AWG / 10 mm² | Flex wire: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21,, JOCD-8 | Dimensions (mm): W 10, d1 4.5, E 19, L 37 | ||
| JOBO 0102-SS06 | Barrel form: Standard | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 12, d1 5.4, E 17, L 36 | ||
| JOBO 0102-SL06 | Barrel form: Long | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 12, d1 5.4, E 25, L 43 | ||
| JOBO 0102-SS10 | Barrel form: Standard | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 15.5, d1 5.4, E 17, L 42 | ||
| JOBO 0102-SL10 | Barrel form: Long | Code wire: 6 AWG / 16 mm² | Flex wire: 6 AWG / 16 mm² | Stud size: M10 | Color code / die: Blue 24,, JOCD-6 | Dimensions (mm): W 15.5, d1 5.4, E 25, L 49 | ||
| JOBO 0103-SS06 | Barrel form: Standard | Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 13, d1 6.7, E 18, L 41 | ||
| JOBO 0103-SL06 | Barrel form: Long | Code wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 13, d1 6.7, E 25, L 48 | ||
| JOBO 0103-SS10 | Barrel form: Standard | Code wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 15.5, d1 6.7, E 18, L 45 | ||
| JOBO 0103-SL10 | Barrel form: Long | Code wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Gray 29,, JOCD-4 | Dimensions (mm): W 15.5, d1 6.7, E 25, L 52 | ||
| JOBO 0104-SS06 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | ||
| JOBO 0104-SL06 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | ||
| JOBO 0104-SS08 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | ||
| JOBO 0104-SL08 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | ||
| JOBO 0104-SS10 | Barrel form: Standard | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 21, L 48 | ||
| JOBO 0104-SL10 | Barrel form: Long | Code wire: 2 AWG / 35 mm² | Flex wire: 4 AWG / 25 mm² | Stud size: M10 | Color code / die: Brown 33,, JOCD-2 | Dimensions (mm): W 16, d1 8.1, E 30, L 56 | ||
| JOBO 0105-SS10 | Barrel form: Standard | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37,, JOCD-1 | Dimensions (mm): W 18, d1 9.5, E 21, L 52 | ||
| JOBO 0105-SL10 | Barrel form: Long | Code wire: 1 AWG / 50 mm² | Flex wire: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Green 37,, JOCD-1 | Dimensions (mm): W 18, d1 9.5, E 35, L 65 | ||
| JOBO 0106-SS10 | Barrel form: Standard | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42,, JOCD-1/0 | Dimensions (mm): W 19, d1 10.2, E 23, L 56 | ||
| JOBO 0106-SL10 | Barrel form: Long | Code wire: 1/0 AWG / 60 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Pink 42,, JOCD-1/0 | Dimensions (mm): W 19, d1 10.2, E 36, L 69 | ||
| JOBO 0107-SS10 | Barrel form: Standard | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45,, JOCD-2/0 | Dimensions (mm): W 21, d1 11.3, E 23.5, L 56 | ||
| JOBO 0107-SL10 | Barrel form: Long | Code wire: 2/0 AWG / 70 mm² | Flex wire: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Black 45,, JOCD-2/0 | Dimensions (mm): W 21, d1 11.3, E 36, L 68.5 | ||
| JOBO 0108-SS12 | Barrel form: Standard | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-3/0 | Dimensions (mm): W 25, d1 13.5, E 26, L 66 | ||
| JOBO 0108-SL12 | Barrel form: Long | Code wire: 3/0 AWG / 95 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-3/0 | Dimensions (mm): W 25, d1 13.5, E 38.5, L 79.5 | ||
| JOBO 0109-SS12 | Barrel form: Standard | Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-4/0 | Dimensions (mm): W 26, d1 14, E 29, L 69.5 | ||
| JOBO 0109-SL12 | Barrel form: Long | Code wire: 4/0 AWG / 100 mm² | Flex wire: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Orange 48,, JOCD-4/0 | Dimensions (mm): W 26, d1 14, E 43, L 82 |
