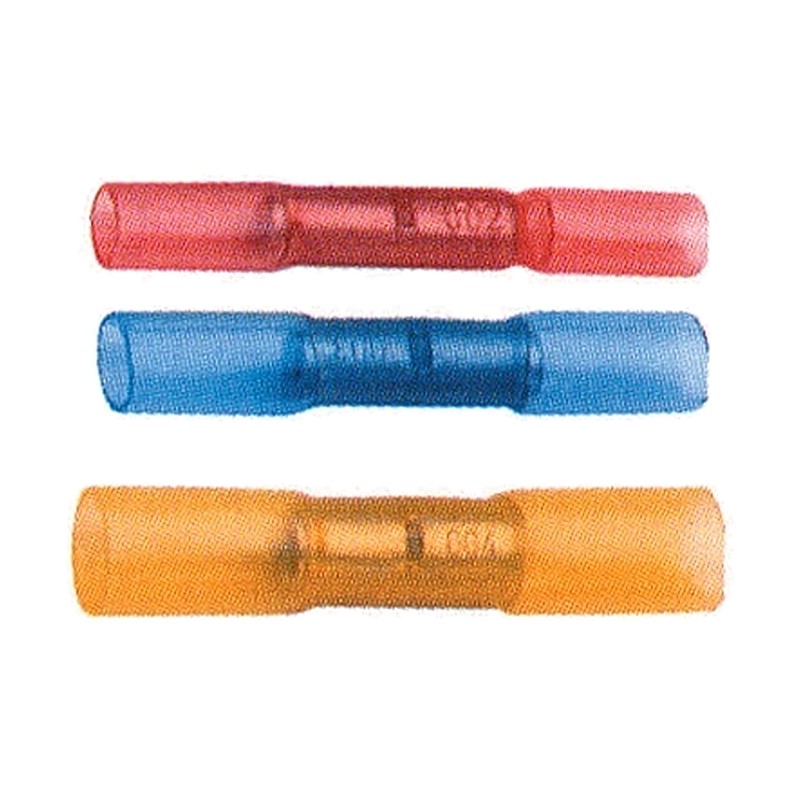

Jeoneo JOBP H Heat-Shrinkable Butt Splices

Jeoneo JOBP H Heat-Shrinkable Butt Splices

Butt splices with heat-shrink tube insulation for sealed wire joints from 0.5 to 6 mm².

Key features

  • Heat-shrink tube insulation, shrink temperature 125 °C
  • Maximum electrical rating 600 V

Specifications

Material Electrolytic copper
Surface Tin plated
Insulation Heat-shrink tube
Maximum voltage 600 V
Shrink temperature 125 °C
Pack qty 1,000
Jeoneo JOBP H Heat-Shrinkable Butt Splices
JOBP 15H Wire range: 22~26 AWG / 0.5~1.5 mm² | Color: RED | Dimensions (mm): F 15.0, L 35.0, D 4.5, d 2.0
JOBP 25H Wire range: 16~14 AWG / 1.5~2.5 mm² | Color: BLUE | Dimensions (mm): F 15.0, L 37.0, D 5.5, d 2.5
JOBP 6H Wire range: 12~10 AWG / 4~6 mm² | Color: YELLOW | Dimensions (mm): F 15.0, L 41.0, D 6.5, d 3.8
Butt SplicesJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOBP H Heat-Shrinkable Butt Splices

Brand Jeoneo·Butt Splices

Available part numbers (3)

JOBP 15H, JOBP 25H, JOBP 6H

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOBP H Heat-Shrinkable Butt Splices
0 selected
RFQ List (0)
Product codeSpec
JOBP 15HWire range: 22~26 AWG / 0.5~1.5 mm² | Color: RED | Dimensions (mm): F 15.0, L 35.0, D 4.5, d 2.0
JOBP 25HWire range: 16~14 AWG / 1.5~2.5 mm² | Color: BLUE | Dimensions (mm): F 15.0, L 37.0, D 5.5, d 2.5
JOBP 6HWire range: 12~10 AWG / 4~6 mm² | Color: YELLOW | Dimensions (mm): F 15.0, L 41.0, D 6.5, d 3.8
