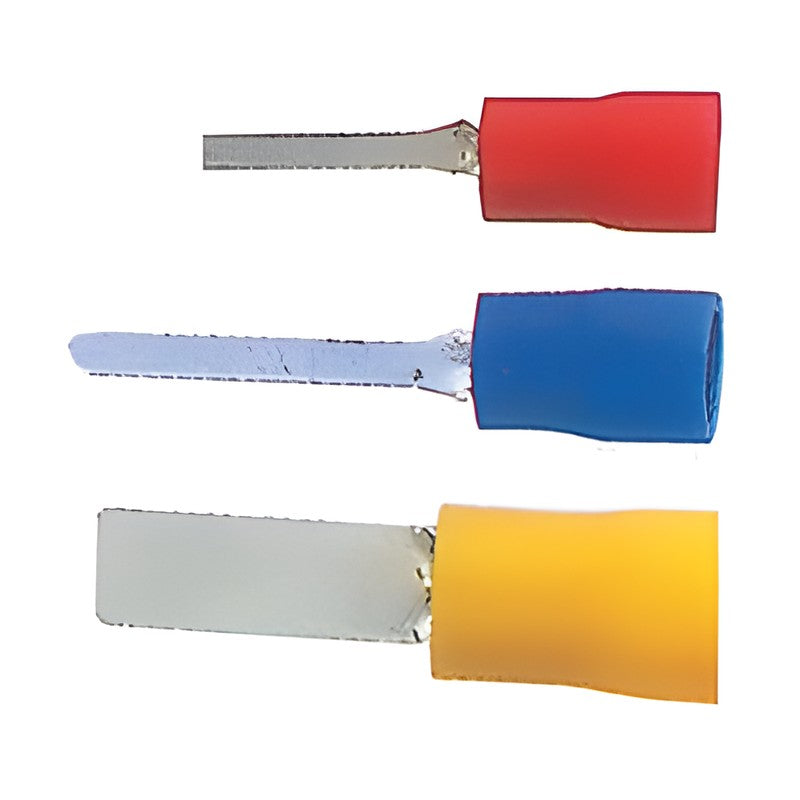

Jeoneo JOBP PVC-Insulated Blade Terminals

Jeoneo JOBP PVC-Insulated Blade Terminals

PVC-insulated copper blade terminals for 0.5 to 10 mm² wire; U suffix = without brazed seam, W suffix = brazed seam.

Key features

  • Oxygen-free copper, tin plated
  • PVC insulation rated 105 °C, UL94 V-0

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Jeoneo JOBP PVC-Insulated Blade Terminals
JOBP 152U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.7
JOBP 153U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.7
JOBP 154U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.7
JOBP 155U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.7
JOBP 156U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 24.0, E 10.0, D 5.9, t 0.7
JOBP 252U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.8
JOBP 253U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.8
JOBP 254U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.8
JOBP 255U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.8
JOBP 256U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 18.5, E 10.0, D 6.3, t 0.8
JOBP 4U Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.9
JOBP 4-2U Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.9
JOBP 4-3U Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.9
JOBP 6-1U Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.0, E 14.0, D 8.3, t 1.0
JOBP 6U Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 1.0
JOBP 152W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.7
JOBP 153W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.7
JOBP 154W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.7
JOBP 155W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.7
JOBP 156W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 24.0, E 10.0, D 5.9, t 0.7
JOBP 252W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.8
JOBP 253W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.8
JOBP 254W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.8
JOBP 255W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.8
JOBP 256W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 18.5, E 10.0, D 6.3, t 0.8
JOBP 4W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.9
JOBP 4-2W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.9
JOBP 4-3W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.9
JOBP 6-1W Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.0, E 14.0, D 8.3, t 1.0
JOBP 6W Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 1.0
JOBP 10W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Color: RED, BLUE, RED, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 16.0, D 11.0, t 1.15
Blade TerminalsJeoneo
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOBP PVC-Insulated Blade Terminals

Brand Jeoneo·Blade Terminals

Available part numbers (31)

JOBP 152U, JOBP 153U, JOBP 154U, JOBP 155U, JOBP 156U, JOBP 252U, JOBP 253U, JOBP 254U, JOBP 255U, JOBP 256U + 21 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOBP PVC-Insulated Blade Terminals
0 selected
RFQ List (0)
Product codeSpec
JOBP 152UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.7
JOBP 153UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.7
JOBP 154UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.7
JOBP 155UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.7
JOBP 156UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 24.0, E 10.0, D 5.9, t 0.7
JOBP 252UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.8
JOBP 253UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.8
JOBP 254UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.8
JOBP 255UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.8
JOBP 256UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 18.5, E 10.0, D 6.3, t 0.8
JOBP 4UBrazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.9
JOBP 4-2UBrazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.9
JOBP 4-3UBrazed seam: No | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.9
JOBP 6-1UBrazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.0, E 14.0, D 8.3, t 1.0
JOBP 6UBrazed seam: No | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 1.0
JOBP 152WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.7
JOBP 153WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.7
JOBP 154WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.7
JOBP 155WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.7
JOBP 156WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 24.0, E 10.0, D 5.9, t 0.7
JOBP 252WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.8
JOBP 253WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.8
JOBP 254WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.8
JOBP 255WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.8
JOBP 256WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 18.5, E 10.0, D 6.3, t 0.8
JOBP 4WBrazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.9
JOBP 4-2WBrazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.9
JOBP 4-3WBrazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.9
JOBP 6-1WBrazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.0, E 14.0, D 8.3, t 1.0
JOBP 6WBrazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 1.0
JOBP 10WBrazed seam: Yes | Wire range: 8 AWG / 10 mm² | Color: RED, BLUE, RED, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.5, E 16.0, D 11.0, t 1.15
