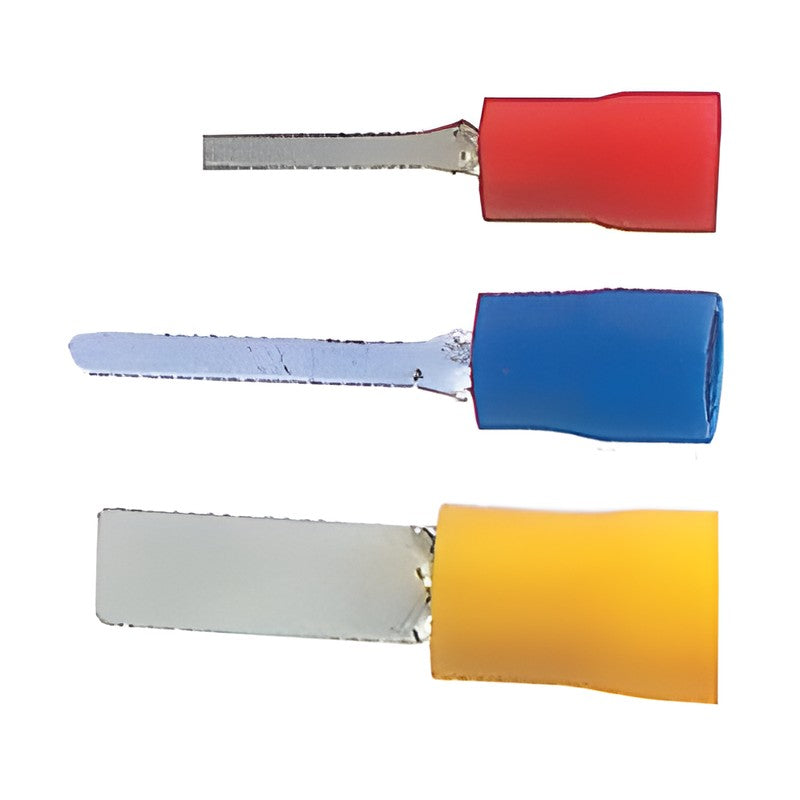

Jeoneo JOBP PVC-Insulated Blade Terminals, Electrolytic Copper
Jeoneo JOBP PVC-Insulated Blade Terminals, Electrolytic Copper
PVC-insulated electrolytic copper blade terminals for 1.5 to 10 mm² wire, with or without brazed seam.
Key features
- Electrolytic copper, tin plated
- PVC insulation
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Insulation | PVC |
| JOBP 152 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.65 | |
| JOBP 153 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.65 | |
| JOBP 154 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.65 | |
| JOBP 155 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.65 | |
| JOBP 252 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.65 | |
| JOBP 253 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.65 | |
| JOBP 254 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.65 | |
| JOBP 255 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.65 | |
| JOBP 4 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.75 | |
| JOBP 4-2 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.75 | |
| JOBP 4-3 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.75 | |
| JOBP 6 | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 0.8 | |
| JOBP 10 | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.0, E 16.0, D 11.0, t 0.9 |
Blade TerminalsJeoneo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOBP PVC-Insulated Blade Terminals, Electrolytic Copper
Available part numbers (13)
JOBP 152, JOBP 153, JOBP 154, JOBP 155, JOBP 252, JOBP 253, JOBP 254, JOBP 255, JOBP 4, JOBP 4-2 + 3 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Blade Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOBP 152 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 5.9, t 0.65 | ||
| JOBP 153 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 20.0, E 10.0, D 5.9, t 0.65 | ||
| JOBP 154 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 5.9, t 0.65 | ||
| JOBP 155 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 5.9, t 0.65 | ||
| JOBP 252 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 1.8, L 27.0, E 10.0, D 6.3, t 0.65 | ||
| JOBP 253 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 3.2, L 22.0, E 10.0, D 6.3, t 0.65 | ||
| JOBP 254 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 28.5, E 10.0, D 6.3, t 0.65 | ||
| JOBP 255 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.3, L 25.5, E 10.0, D 6.3, t 0.65 | ||
| JOBP 4 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 4.0, L 28.0, E 14.0, D 7.5, t 0.75 | ||
| JOBP 4-2 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 2.8, L 24.5, E 14.0, D 7.5, t 0.75 | ||
| JOBP 4-3 | Wire range: 14~12 AWG / 4 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 3.0, L 28.5, E 14.0, D 7.5, t 0.75 | ||
| JOBP 6 | Wire range: 12~10 AWG / 6 mm² | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN | Pack qty: 1,000 | Dimensions (mm): B 5.0, L 28.4, E 14.0, D 8.3, t 0.8 | ||
| JOBP 10 | Wire range: 8 AWG / 10 mm² | Color: RED | Pack qty: 500 | Dimensions (mm): B 5.8, L 34.0, E 16.0, D 11.0, t 0.9 |
