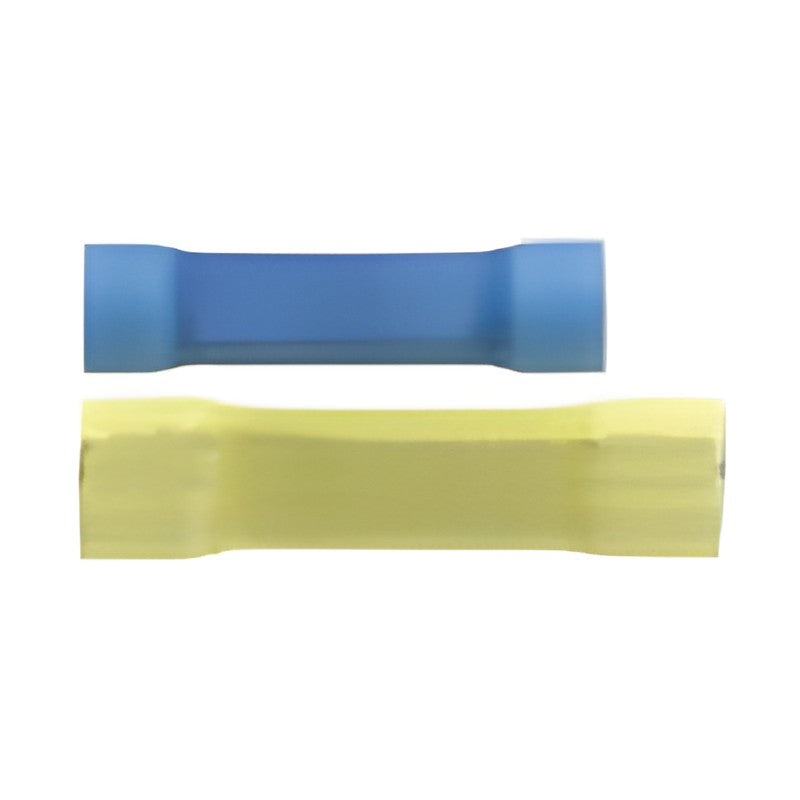

Jeoneo JOBPS Nylon-Insulated Funnel-Entry Butt Splices
Jeoneo JOBPS Nylon-Insulated Funnel-Entry Butt Splices
Nylon-insulated funnel-entry butt splices for joining two wires from 0.5 to 6 mm².
Key features
- Internal wire stop prevents over-insertion of the conductor
- Insulation rated 105 °C, UL94 V-2
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Insulation | Nylon |
| Insulation temperature rating | 105 °C |
| Flammability | UL94 V-2 |
| Pack qty | 1,000 |
| JOBPS 15 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED | Dimensions (mm): D 3.9, d1 2.0, L 26.3, L2 15.0 | |
| JOBPS 25 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE | Dimensions (mm): D 4.1, d1 2.5, L 26.3, L2 15.0 | |
| JOBPS 46 | Wire range: 12~10 AWG / 4, 6 mm² | Color: YELLOW | Dimensions (mm): D 6.2, d1 3.8, L 26.3, L2 15.0 |
Butt SplicesJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOBPS Nylon-Insulated Funnel-Entry Butt Splices
Available part numbers (3)
JOBPS 15, JOBPS 25, JOBPS 46
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Butt Splices
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOBPS 15 | Wire range: 20~16 AWG / 1.5 mm² | Color: RED | Dimensions (mm): D 3.9, d1 2.0, L 26.3, L2 15.0 | ||
| JOBPS 25 | Wire range: 16~14 AWG / 2.5 mm² | Color: BLUE | Dimensions (mm): D 4.1, d1 2.5, L 26.3, L2 15.0 | ||
| JOBPS 46 | Wire range: 12~10 AWG / 4, 6 mm² | Color: YELLOW | Dimensions (mm): D 6.2, d1 3.8, L 26.3, L2 15.0 |
