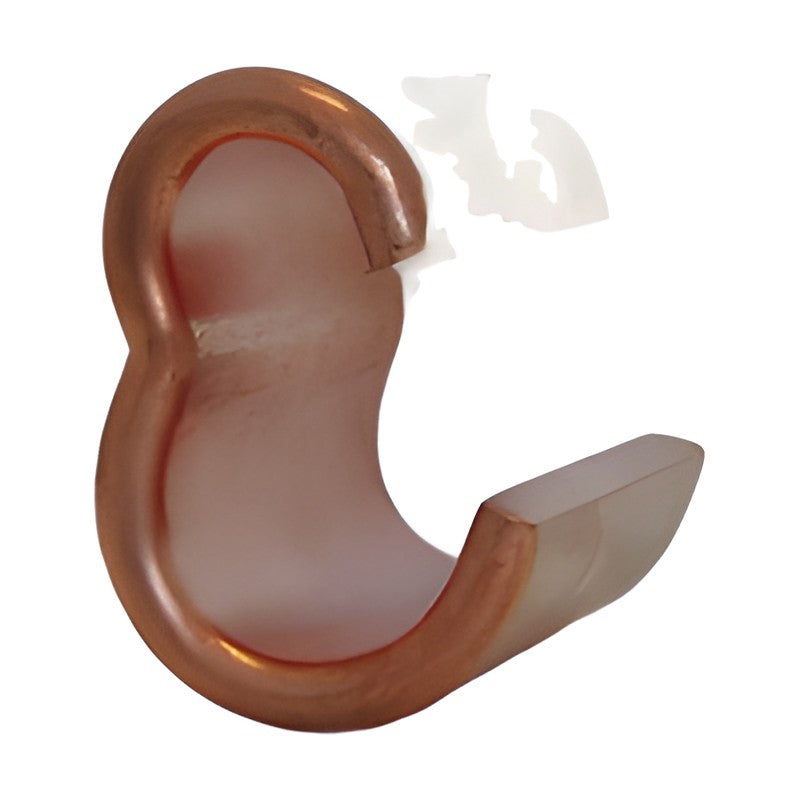

Jeoneo JOCC Branch Connectors (3-Way)
Jeoneo JOCC Branch Connectors (3-Way)
Copper branch connectors (Type CC(3)) for splicing branches of earth conductors, run 22 to 150 mm² with tap 5.5 to 150 mm².
Key features
- Electrolytic copper with copper finish; tin plating on request
- For branch splicing of earth conductors
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Copper finish (tin plated on request) |
| JOCC 2506 | Run wire: 4~3 AWG / 22~25 mm² | Tap wire: 10 AWG / 5.5~6 mm² | Pack qty: 100 | Dimensions (mm): H 16.2, L 11.0, N 6.7, W 30.0, T 1.5 | |
| JOCC 3516 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 6 AWG / 14~16 mm² | Pack qty: 50 | Dimensions (mm): H 22.3, L 15.8, N 12.7, W 40.0, T 3.0 | |
| JOCC 3525 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 50 | Dimensions (mm): H 22.3, L 15.1, N 12.7, W 40.0, T 3.0 | |
| JOCC 3535 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 50 | Dimensions (mm): H 26.6, L 15.8, N 16.0, W 40.0, T 3.0 | |
| JOCC 5025 | Run wire: 1 AWG / 50 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 30 | Dimensions (mm): H 24.4, L 15.5, N 13.7, W 40.0, T 3.5 | |
| JOCC 5035 | Run wire: 1 AWG / 50 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 30 | Dimensions (mm): H 28.1, L 16.2, N 13.7, W 40.0, T 3.5 | |
| JOCC 5050 | Run wire: 1 AWG / 50 mm² | Tap wire: 1 AWG / 50 mm² | Pack qty: 30 | Dimensions (mm): H 28.1, L 15.1, N 15.1, W 40.0, T 3.5 | |
| JOCC 7016 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 6 AWG / 14~16 mm² | Pack qty: 30 | Dimensions (mm): H 26.0, L 17.4, N 12.3, W 40.0, T 3.5 | |
| JOCC 7025 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 30 | Dimensions (mm): H 27.0, L 17.4, N 13.0, W 40.0, T 3.5 | |
| JOCC 7035 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 30 | Dimensions (mm): H 27.0, L 16.8, N 14.9, W 40.0, T 3.5 | |
| JOCC 7050 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 1 AWG / 50 mm² | Pack qty: 30 | Dimensions (mm): H 29.0, L 17.2, N 15.5, W 40.0, T 3.5 | |
| JOCC 7070 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 1/0~2/0 AWG / 60~70 mm² | Pack qty: 30 | Dimensions (mm): H 33.0, L 17.1, N 17.1, W 40.0, T 3.5 | |
| JOCC 9525 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 25 | Dimensions (mm): H 31.6, L 21.4, N 13.0, W 40.0, T 4.0 | |
| JOCC 9535 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 25 | Dimensions (mm): H 33.8, L 21.4, N 14.5, W 40.0, T 4.0 | |
| JOCC 9550 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 1 AWG / 50~60 mm² | Pack qty: 25 | Dimensions (mm): H 35.7, L 21.4, N 16.1, W 40.0, T 4.0 | |
| JOCC 15035 | Run wire: 300Kcmil / 150 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 18 | Dimensions (mm): H 39.3, L 28.8, N 19.3, W 50.0, T 4.5 | |
| JOCC 15050 | Run wire: 300Kcmil / 150 mm² | Tap wire: 1 AWG / 50~60 mm² | Pack qty: 18 | Dimensions (mm): H 41.1, L 29.1, N 21.8, W 50.0, T 4.5 | |
| JOCC 15095 | Run wire: 300Kcmil / 150 mm² | Tap wire: 3/0~4/0 AWG / 95~100 mm² | Pack qty: 18 | Dimensions (mm): H 47.0, L 29.1, N 25.8, W 50.0, T 4.5 | |
| JOCC 150150 | Run wire: 300Kcmil / 150 mm² | Tap wire: 300MCM / 150 mm² | Pack qty: 18 | Dimensions (mm): H 49.6, L 28.6, N 29.6, W 50.0, T 4.5 |
Compression ConnectorsJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOCC Branch Connectors (3-Way)
Available part numbers (19)
JOCC 2506, JOCC 3516, JOCC 3525, JOCC 3535, JOCC 5025, JOCC 5035, JOCC 5050, JOCC 7016, JOCC 7025, JOCC 7035 + 9 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Compression Connectors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOCC 2506 | Run wire: 4~3 AWG / 22~25 mm² | Tap wire: 10 AWG / 5.5~6 mm² | Pack qty: 100 | Dimensions (mm): H 16.2, L 11.0, N 6.7, W 30.0, T 1.5 | ||
| JOCC 3516 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 6 AWG / 14~16 mm² | Pack qty: 50 | Dimensions (mm): H 22.3, L 15.8, N 12.7, W 40.0, T 3.0 | ||
| JOCC 3525 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 50 | Dimensions (mm): H 22.3, L 15.1, N 12.7, W 40.0, T 3.0 | ||
| JOCC 3535 | Run wire: 2 AWG / 35~38 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 50 | Dimensions (mm): H 26.6, L 15.8, N 16.0, W 40.0, T 3.0 | ||
| JOCC 5025 | Run wire: 1 AWG / 50 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 30 | Dimensions (mm): H 24.4, L 15.5, N 13.7, W 40.0, T 3.5 | ||
| JOCC 5035 | Run wire: 1 AWG / 50 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 30 | Dimensions (mm): H 28.1, L 16.2, N 13.7, W 40.0, T 3.5 | ||
| JOCC 5050 | Run wire: 1 AWG / 50 mm² | Tap wire: 1 AWG / 50 mm² | Pack qty: 30 | Dimensions (mm): H 28.1, L 15.1, N 15.1, W 40.0, T 3.5 | ||
| JOCC 7016 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 6 AWG / 14~16 mm² | Pack qty: 30 | Dimensions (mm): H 26.0, L 17.4, N 12.3, W 40.0, T 3.5 | ||
| JOCC 7025 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 30 | Dimensions (mm): H 27.0, L 17.4, N 13.0, W 40.0, T 3.5 | ||
| JOCC 7035 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 30 | Dimensions (mm): H 27.0, L 16.8, N 14.9, W 40.0, T 3.5 | ||
| JOCC 7050 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 1 AWG / 50 mm² | Pack qty: 30 | Dimensions (mm): H 29.0, L 17.2, N 15.5, W 40.0, T 3.5 | ||
| JOCC 7070 | Run wire: 1/0~2/0 AWG / 60~70 mm² | Tap wire: 1/0~2/0 AWG / 60~70 mm² | Pack qty: 30 | Dimensions (mm): H 33.0, L 17.1, N 17.1, W 40.0, T 3.5 | ||
| JOCC 9525 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 4~3 AWG / 22~25 mm² | Pack qty: 25 | Dimensions (mm): H 31.6, L 21.4, N 13.0, W 40.0, T 4.0 | ||
| JOCC 9535 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 25 | Dimensions (mm): H 33.8, L 21.4, N 14.5, W 40.0, T 4.0 | ||
| JOCC 9550 | Run wire: 3/0~4/0 AWG / 95~100 mm² | Tap wire: 1 AWG / 50~60 mm² | Pack qty: 25 | Dimensions (mm): H 35.7, L 21.4, N 16.1, W 40.0, T 4.0 | ||
| JOCC 15035 | Run wire: 300Kcmil / 150 mm² | Tap wire: 2 AWG / 35~38 mm² | Pack qty: 18 | Dimensions (mm): H 39.3, L 28.8, N 19.3, W 50.0, T 4.5 | ||
| JOCC 15050 | Run wire: 300Kcmil / 150 mm² | Tap wire: 1 AWG / 50~60 mm² | Pack qty: 18 | Dimensions (mm): H 41.1, L 29.1, N 21.8, W 50.0, T 4.5 | ||
| JOCC 15095 | Run wire: 300Kcmil / 150 mm² | Tap wire: 3/0~4/0 AWG / 95~100 mm² | Pack qty: 18 | Dimensions (mm): H 47.0, L 29.1, N 25.8, W 50.0, T 4.5 | ||
| JOCC 150150 | Run wire: 300Kcmil / 150 mm² | Tap wire: 300MCM / 150 mm² | Pack qty: 18 | Dimensions (mm): H 49.6, L 28.6, N 29.6, W 50.0, T 4.5 |
