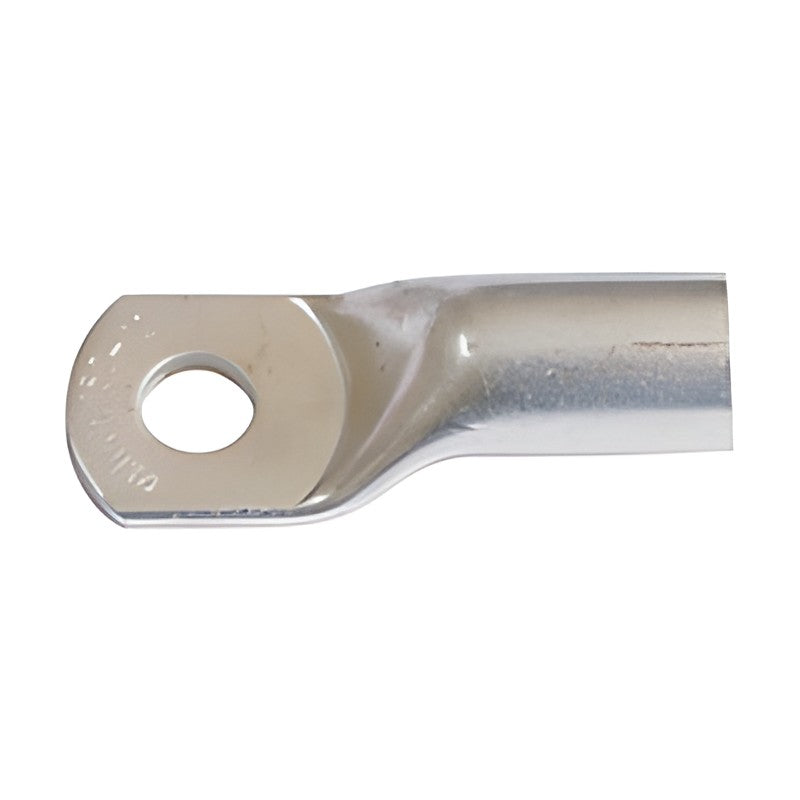

Jeoneo JOCE Tubular Cable Lugs, One Hole, Without Inspection Hole

Jeoneo JOCE Tubular Cable Lugs, One Hole, Without Inspection Hole

One-hole round-compressed tubular copper cable lugs (Type CE) without inspection hole for 1.5 to 1000 mm² class 2 conductors.

Key features

  • Electrolytic copper, tin plated
  • Without inspection hole
  • For IEC 60228 class 2 conductors

Specifications

Material Electrolytic copper
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 1
Jeoneo JOCE Tubular Cable Lugs, One Hole, Without Inspection Hole
JOCE 1.5-3 Wire range: 20~16 AWG / 1.5 mm² | Stud size: M3 | Pack qty: 1,000 | Dimensions (mm): W 6.5, E 6.0, L 16, d 1.8, D 3.0
JOCE 1.5-4 Wire range: 20~16 AWG / 1.5 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 6.5, E 6.0, L 17, d 1.8, D 3.0
JOCE 2.5-3 Wire range: 16~14 AWG / 2.5 mm² | Stud size: M3 | Pack qty: 1,000 | Dimensions (mm): W 7.5, E 6.0, L 17, d 2.3, D 3.5
JOCE 2.5-4 Wire range: 16~14 AWG / 2.5 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 7.5, E 6.0, L 18, d 2.3, D 3.5
JOCE 4-4 Wire range: 14~12 AWG / 4 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 8.5, E 7.0, L 21, d 3.0, D 4.5
JOCE 4-5 Wire range: 14~12 AWG / 4 mm² | Stud size: M5 | Pack qty: 1,000 | Dimensions (mm): W 8.5, E 7.0, L 22, d 3.0, D 4.5
JOCE 6-4 Wire range: 12~10 AWG / 6 mm² | Stud size: M4 | Pack qty: 1,000 | Dimensions (mm): W 9.5, E 7.0, L 22, d 4.0, D 5.5
JOCE 6-5 Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Pack qty: 1,000 | Dimensions (mm): W 9.5, E 7.0, L 22, d 4.0, D 5.5
JOCE 6-6 Wire range: 12~10 AWG / 6 mm² | Stud size: M6 | Pack qty: 1,000 | Dimensions (mm): W 10, E 7.0, L 23, d 4.0, D 5.5
JOCE 10-5 Wire range: 8 AWG / 10 mm² | Stud size: M5 | Pack qty: 500 | Dimensions (mm): W 11.5, E 11, L 29, d 4.7, D 6.7
JOCE 10-6 Wire range: 8 AWG / 10 mm² | Stud size: M6 | Pack qty: 500 | Dimensions (mm): W 11.5, E 11, L 29, d 4.7, D 6.7
JOCE 16-5 Wire range: 6 AWG / 16 mm² | Stud size: M5 | Pack qty: 300 | Dimensions (mm): W 12, E 10, L 29, d 5.4, D 7.4
JOCE 16-6 Wire range: 6 AWG / 16 mm² | Stud size: M6 | Pack qty: 300 | Dimensions (mm): W 12, E 10, L 29, d 5.4, D 7.4
JOCE 16-8 Wire range: 6 AWG / 16 mm² | Stud size: M8 | Pack qty: 300 | Dimensions (mm): W 14, E 10, L 33, d 5.4, D 7.4
JOCE 25-6 Wire range: 4 AWG / 25 mm² | Stud size: M6 | Pack qty: 300 | Dimensions (mm): W 13, E 11, L 32, d 6.7, D 9.0
JOCE 25-8 Wire range: 4 AWG / 25 mm² | Stud size: M8 | Pack qty: 300 | Dimensions (mm): W 13, E 11, L 32, d 6.7, D 9.0
JOCE 35-6 Wire range: 2 AWG / 35 mm² | Stud size: M6 | Pack qty: 200 | Dimensions (mm): W 16, E 12, L 37, d 8.1, D 10.6
JOCE 35-8 Wire range: 2 AWG / 35 mm² | Stud size: M8 | Pack qty: 200 | Dimensions (mm): W 16, E 12, L 38, d 8.1, D 10.6
JOCE 35-10 Wire range: 2 AWG / 35 mm² | Stud size: M10 | Pack qty: 200 | Dimensions (mm): W 17, E 12, L 42, d 8.1, D 10.6
JOCE 50-6 Wire range: 1 AWG / 50 mm² | Stud size: M6 | Pack qty: 200 | Dimensions (mm): W 18, E 17, L 44, d 9.5, D 12
JOCE 50-8 Wire range: 1 AWG / 50 mm² | Stud size: M8 | Pack qty: 200 | Dimensions (mm): W 18, E 17, L 44, d 9.5, D 12
JOCE 50-10 Wire range: 1 AWG / 50 mm² | Stud size: M10 | Pack qty: 200 | Dimensions (mm): W 18, E 17, L 49, d 9.5, D 12
JOCE 50-12 Wire range: 1 AWG / 50 mm² | Stud size: M12 | Pack qty: 200 | Dimensions (mm): W 20, E 17, L 53, d 9.5, D 12
JOCE 70-6 Wire range: 2/0 AWG / 70 mm² | Stud size: M6 | Pack qty: 100 | Dimensions (mm): W 22, E 21, L 53, d 11.3, D 14.6
JOCE 70-8 Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Pack qty: 100 | Dimensions (mm): W 22, E 21, L 53, d 11.3, D 14.6
JOCE 70-10 Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Pack qty: 100 | Dimensions (mm): W 22, E 21, L 53, d 11.3, D 14.6
JOCE 70-12 Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Pack qty: 100 | Dimensions (mm): W 22, E 21, L 56, d 11.3, D 14.6
JOCE 70-14 Wire range: 2/0 AWG / 70 mm² | Stud size: M14 | Pack qty: 100 | Dimensions (mm): W 22, E 21, L 56, d 11.3, D 14.6
JOCE 95-6 Wire range: 3/0 AWG / 95 mm² | Stud size: M6 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 57, d 13.5, D 17
JOCE 95-8 Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 57, d 13.5, D 17
JOCE 95-10 Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 57, d 13.5, D 17
JOCE 95-12 Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 61, d 13.5, D 17
JOCE 95-14 Wire range: 3/0 AWG / 95 mm² | Stud size: M14 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 61, d 13.5, D 17
JOCE 95-16 Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Pack qty: 50 | Dimensions (mm): W 25, E 21, L 67, d 13.5, D 17
JOCE 120-8 Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Pack qty: 50 | Dimensions (mm): W 28, E 24, L 64, d 15.2, D 19
JOCE 120-10 Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Pack qty: 50 | Dimensions (mm): W 28, E 24, L 64, d 15.2, D 19
JOCE 120-12 Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Pack qty: 50 | Dimensions (mm): W 28, E 24, L 64, d 15.2, D 19
JOCE 120-14 Wire range: 250Kcmil / 120 mm² | Stud size: M14 | Pack qty: 50 | Dimensions (mm): W 28, E 24, L 70, d 15.2, D 19
JOCE 120-16 Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Pack qty: 50 | Dimensions (mm): W 28, E 24, L 70, d 15.2, D 19
JOCE 150-10 Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Pack qty: 30 | Dimensions (mm): W 31, E 31, L 76, d 17, D 21
JOCE 150-12 Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Pack qty: 30 | Dimensions (mm): W 31, E 31, L 76, d 17, D 21
JOCE 150-14 Wire range: 300Kcmil / 150 mm² | Stud size: M14 | Pack qty: 30 | Dimensions (mm): W 31, E 31, L 76, d 17, D 21
JOCE 150-16 Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Pack qty: 30 | Dimensions (mm): W 31, E 31, L 76, d 17, D 21
JOCE 150-20 Wire range: 300Kcmil / 150 mm² | Stud size: M20 | Pack qty: 30 | Dimensions (mm): W 31, E 31, L 83, d 17, D 21
JOCE 185-10 Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Pack qty: 30 | Dimensions (mm): W 35, E 34, L 80, d 19, D 23.5
JOCE 185-12 Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Pack qty: 30 | Dimensions (mm): W 35, E 34, L 80, d 19, D 23.5
JOCE 185-14 Wire range: 350Kcmil / 185 mm² | Stud size: M14 | Pack qty: 30 | Dimensions (mm): W 35, E 34, L 80, d 19, D 23.5
JOCE 185-16 Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Pack qty: 30 | Dimensions (mm): W 35, E 34, L 80, d 19, D 23.5
JOCE 185-20 Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Pack qty: 30 | Dimensions (mm): W 35, E 34, L 87, d 19, D 23.5
JOCE 240-10 Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Pack qty: 25 | Dimensions (mm): W 40, E 36, L 93, d 22, D 27.4
JOCE 240-12 Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Pack qty: 25 | Dimensions (mm): W 40, E 36, L 93, d 22, D 27.4
JOCE 240-14 Wire range: 500Kcmil / 240 mm² | Stud size: M14 | Pack qty: 25 | Dimensions (mm): W 40, E 36, L 93, d 22, D 27.4
JOCE 240-16 Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Pack qty: 25 | Dimensions (mm): W 40, E 36, L 93, d 22, D 27.4
JOCE 240-20 Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Pack qty: 25 | Dimensions (mm): W 40, E 36, L 93, d 22, D 27.4
JOCE 300-10 Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Pack qty: 20 | Dimensions (mm): W 44, E 43, L 99, d 24, D 30.5
JOCE 300-12 Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Pack qty: 20 | Dimensions (mm): W 44, E 43, L 99, d 24, D 30.5
JOCE 300-14 Wire range: 600Kcmil / 300 mm² | Stud size: M14 | Pack qty: 20 | Dimensions (mm): W 44, E 43, L 99, d 24, D 30.5
JOCE 300-16 Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Pack qty: 20 | Dimensions (mm): W 44, E 43, L 99, d 24, D 30.5
JOCE 300-20 Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Pack qty: 20 | Dimensions (mm): W 44, E 43, L 99, d 24, D 30.5
JOCE 400-12 Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Pack qty: 10 | Dimensions (mm): W 48, E 46, L 114, d 26, D 34
JOCE 400-14 Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Pack qty: 10 | Dimensions (mm): W 48, E 46, L 114, d 26, D 34
JOCE 400-16 Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Pack qty: 10 | Dimensions (mm): W 48, E 46, L 114, d 26, D 34
JOCE 400-20 Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Pack qty: 10 | Dimensions (mm): W 48, E 46, L 114, d 26, D 34
JOCE 400-24 Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Pack qty: 10 | Dimensions (mm): W 48, E 46, L 114, d 26, D 34
JOCE 500-12 Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Pack qty: 10 | Dimensions (mm): W 57.5, E 52, L 135, d 31, D 40
JOCE 500-14 Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Pack qty: 10 | Dimensions (mm): W 57.5, E 52, L 135, d 31, D 40
JOCE 500-16 Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Pack qty: 10 | Dimensions (mm): W 57.5, E 52, L 135, d 31, D 40
JOCE 500-20 Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Pack qty: 10 | Dimensions (mm): W 57.5, E 52, L 135, d 31, D 40
JOCE 500-24 Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Pack qty: 10 | Dimensions (mm): W 57.5, E 52, L 135, d 31, D 40
JOCE 630-12 Wire range: 1250Kcmil / 600 mm² | Stud size: M12 | Pack qty: 8 | Dimensions (mm): W 64.5, E 61, L 150, d 34, D 45
JOCE 630-14 Wire range: 1250Kcmil / 600 mm² | Stud size: M14 | Pack qty: 8 | Dimensions (mm): W 64.5, E 61, L 150, d 34, D 45
JOCE 630-16 Wire range: 1250Kcmil / 600 mm² | Stud size: M16 | Pack qty: 8 | Dimensions (mm): W 64.5, E 61, L 150, d 34, D 45
JOCE 630-20 Wire range: 1250Kcmil / 600 mm² | Stud size: M20 | Pack qty: 8 | Dimensions (mm): W 64.5, E 61, L 150, d 34, D 45
JOCE 630-24 Wire range: 1250Kcmil / 600 mm² | Stud size: M24 | Pack qty: 8 | Dimensions (mm): W 64.5, E 61, L 150, d 34, D 45
JOCE 800-12 Wire range: 1500Kcmil / 800 mm² | Stud size: M12 | Pack qty: 5 | Dimensions (mm): W 73, E 78, L 185, d 39, D 50.6
JOCE 800-14 Wire range: 1500Kcmil / 800 mm² | Stud size: M14 | Pack qty: 5 | Dimensions (mm): W 73, E 78, L 185, d 39, D 50.6
JOCE 800-16 Wire range: 1500Kcmil / 800 mm² | Stud size: M16 | Pack qty: 5 | Dimensions (mm): W 73, E 78, L 185, d 39, D 50.6
JOCE 800-20 Wire range: 1500Kcmil / 800 mm² | Stud size: M20 | Pack qty: 5 | Dimensions (mm): W 73, E 78, L 185, d 39, D 50.6
JOCE 800-24 Wire range: 1500Kcmil / 800 mm² | Stud size: M24 | Pack qty: 5 | Dimensions (mm): W 73, E 78, L 185, d 39, D 50.6
JOCE 1000-16 Wire range: 2000Kcmil / 1000 mm² | Stud size: M16 | Pack qty: 4 | Dimensions (mm): W 80, E 78, L 185, d 43, D 56.2
JOCE 1000-20 Wire range: 2000Kcmil / 1000 mm² | Stud size: M20 | Pack qty: 4 | Dimensions (mm): W 80, E 78, L 185, d 43, D 56.2
JOCE 1000-24 Wire range: 2000Kcmil / 1000 mm² | Stud size: M24 | Pack qty: 4 | Dimensions (mm): W 80, E 78, L 185, d 43, D 56.2
Cable LugsJeoneo
82 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOCE Tubular Cable Lugs, One Hole, Without Inspection Hole

Brand Jeoneo·Cable Lugs

Available part numbers (82)

JOCE 1.5-3, JOCE 1.5-4, JOCE 2.5-3, JOCE 2.5-4, JOCE 4-4, JOCE 4-5, JOCE 6-4, JOCE 6-5, JOCE 6-6, JOCE 10-5 + 72 more — see full table ↓
