Jeoneo JOCP Angled Tubular Cable Lugs, 90° or 45°

Jeoneo JOCP Angled Tubular Cable Lugs, 90° or 45°

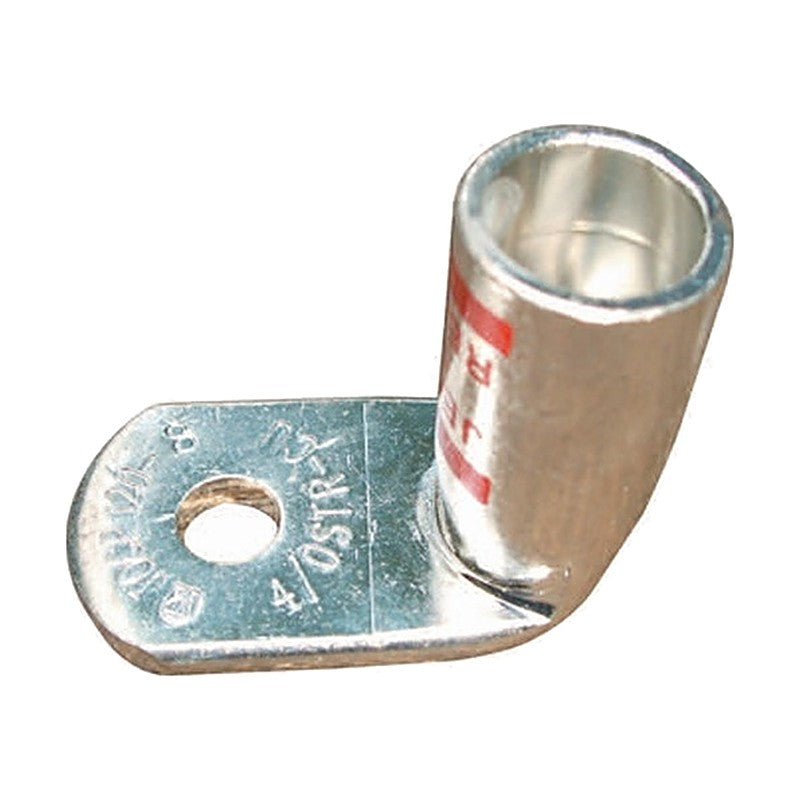

One-hole tubular copper cable lugs with 90° or 45° bent palm (Type Angle CP) for 6 to 400 mm² class 2 conductors; suffix -1 and -2 refer to figures 1 and 2.

Key features

  • Bent palm for tight connection spaces
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 1
Jeoneo JOCP Angled Tubular Cable Lugs, 90° or 45°
JOCP 6-5-1 Figure: 1 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1,000 | Dimensions (mm): W 10, G 16.5, E 9.0, d 4.0, D 5.5
JOCP 6-6-1 Figure: 1 | Wire range: 12~10 AWG / 6 mm² | Stud size: M6 | Color code / die: _ | Pack qty: 1,000 | Dimensions (mm): W 10, G 17.5, E 9.0, d 4.0, D 5.5
JOCP 10-5-1 Figure: 1 | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 12, G 16.5, E 10, d 4.7, D 6.7
JOCP 10-6-1 Figure: 1 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 12, G 16.5, E 10, d 4.7, D 6.7
JOCP 16-5-1 Figure: 1 | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, G 17.5, E 13, d 5.4, D 7.4
JOCP 16-6-1 Figure: 1 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, G 18.5, E 13, d 5.4, D 7.4
JOCP 25-6-1 Figure: 1 | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, G 18.5, E 15, d 6.7, D 9.0
JOCP 25-8-1 Figure: 1 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, G 23, E 15, d 6.7, D 9.0
JOCP 35-6-1 Figure: 1 | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 18.5, E 17, d 8.1, D 10.6
JOCP 35-8-1 Figure: 1 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 23, E 17, d 8.1, D 10.6
JOCP 35-10-1 Figure: 1 | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 27, E 17, d 8.1, D 10.6
JOCP 50-6-1 Figure: 1 | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 23, E 19, d 9.5, D 12
JOCP 50-8-1 Figure: 1 | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 23, E 19, d 9.5, D 12
JOCP 50-10-1 Figure: 1 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 28, E 19, d 9.5, D 12
JOCP 50-12-1 Figure: 1 | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 31, E 19, d 9.5, D 12
JOCP 70-6-1 Figure: 1 | Wire range: 2/0 AWG / 70 mm² | Stud size: M6 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 23, E 21, d 11.3, D 14.6
JOCP 70-8-1 Figure: 1 | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 24, E 21, d 11.3, D 14.6
JOCP 70-10-1 Figure: 1 | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 28, E 21, d 11.3, D 14.6
JOCP 70-12-1 Figure: 1 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 31, E 21, d 11.3, D 14.6
JOCP 6-5-2 Figure: 2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M5 | Color code / die: _ | Pack qty: 1,000 | Dimensions (mm): W 10, G 16.5, E 9.0, d 4.0, D 5.5
JOCP 6-6-2 Figure: 2 | Wire range: 12~10 AWG / 6 mm² | Stud size: M6 | Color code / die: _ | Pack qty: 1,000 | Dimensions (mm): W 10, G 17.5, E 9.0, d 4.0, D 5.5
JOCP 10-5-2 Figure: 2 | Wire range: 8 AWG / 10 mm² | Stud size: M5 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 12, G 16.5, E 10, d 4.7, D 6.7
JOCP 10-6-2 Figure: 2 | Wire range: 8 AWG / 10 mm² | Stud size: M6 | Color code / die: Red 21 | Pack qty: 500 | Dimensions (mm): W 12, G 16.5, E 10, d 4.7, D 6.7
JOCP 16-5-2 Figure: 2 | Wire range: 6 AWG / 16 mm² | Stud size: M5 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, G 17.5, E 13, d 5.4, D 7.4
JOCP 16-6-2 Figure: 2 | Wire range: 6 AWG / 16 mm² | Stud size: M6 | Color code / die: Blue 24 | Pack qty: 300 | Dimensions (mm): W 12, G 18.5, E 13, d 5.4, D 7.4
JOCP 25-6-2 Figure: 2 | Wire range: 4 AWG / 25 mm² | Stud size: M6 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, G 18.5, E 15, d 6.7, D 9.0
JOCP 25-8-2 Figure: 2 | Wire range: 4 AWG / 25 mm² | Stud size: M8 | Color code / die: Gray 29 | Pack qty: 300 | Dimensions (mm): W 13, G 23, E 15, d 6.7, D 9.0
JOCP 35-6-2 Figure: 2 | Wire range: 2 AWG / 35 mm² | Stud size: M6 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 18.5, E 17, d 8.1, D 10.6
JOCP 35-8-2 Figure: 2 | Wire range: 2 AWG / 35 mm² | Stud size: M8 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 23, E 17, d 8.1, D 10.6
JOCP 35-10-2 Figure: 2 | Wire range: 2 AWG / 35 mm² | Stud size: M10 | Color code / die: Brown 33 | Pack qty: 200 | Dimensions (mm): W 16, G 27, E 17, d 8.1, D 10.6
JOCP 50-6-2 Figure: 2 | Wire range: 1 AWG / 50 mm² | Stud size: M6 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 23, E 19, d 9.5, D 12
JOCP 50-8-2 Figure: 2 | Wire range: 1 AWG / 50 mm² | Stud size: M8 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 23, E 19, d 9.5, D 12
JOCP 50-10-2 Figure: 2 | Wire range: 1 AWG / 50 mm² | Stud size: M10 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 28, E 19, d 9.5, D 12
JOCP 50-12-2 Figure: 2 | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Color code / die: Green 37 | Pack qty: 200 | Dimensions (mm): W 18, G 31, E 19, d 9.5, D 12
JOCP 70-6-2 Figure: 2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M6 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 23, E 21, d 11.3, D 14.6
JOCP 70-8-2 Figure: 2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 24, E 21, d 11.3, D 14.6
JOCP 70-10-2 Figure: 2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 28, E 21, d 11.3, D 14.6
JOCP 70-12-2 Figure: 2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45 | Pack qty: 100 | Dimensions (mm): W 21, G 31, E 21, d 11.3, D 14.6
JOCP 95-6-1 Figure: 1 | Wire range: 3/0 AWG / 95 mm² | Stud size: M6 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 26, E 25, d 13.5, D 17
JOCP 95-8-1 Figure: 1 | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 26, E 25, d 13.5, D 17
JOCP 95-10-1 Figure: 1 | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 29, E 25, d 13.5, D 17
JOCP 95-12-1 Figure: 1 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 31, E 25, d 13.5, D 17
JOCP 120-8-1 Figure: 1 | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 29, E 26, d 15.2, D 19
JOCP 120-10-1 Figure: 1 | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 30, E 26, d 15.2, D 19
JOCP 120-12-1 Figure: 1 | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 31, E 26, d 15.2, D 19
JOCP 120-16-1 Figure: 1 | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 37.5, E 26, d 15.2, D 19
JOCP 150-10-1 Figure: 1 | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 33, E 30, d 17.0, D 21
JOCP 150-12-1 Figure: 1 | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 35, E 30, d 17.0, D 21
JOCP 150-16-1 Figure: 1 | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 40, E 30, d 17.0, D 21
JOCP 185-10-1 Figure: 1 | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 185-12-1 Figure: 1 | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 185-16-1 Figure: 1 | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 240-10-1 Figure: 1 | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 240-12-1 Figure: 1 | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 240-16-1 Figure: 1 | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 300-10-1 Figure: 1 | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-12-1 Figure: 1 | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-16-1 Figure: 1 | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-20-1 Figure: 1 | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 400-12-1 Figure: 1 | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
JOCP 400-16-1 Figure: 1 | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
JOCP 400-20-1 Figure: 1 | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
JOCP 95-6-2 Figure: 2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M6 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 26, E 25, d 13.5, D 17
JOCP 95-8-2 Figure: 2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 26, E 25, d 13.5, D 17
JOCP 95-10-2 Figure: 2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 29, E 25, d 13.5, D 17
JOCP 95-12-2 Figure: 2 | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48 | Pack qty: 50 | Dimensions (mm): W 26, G 31, E 25, d 13.5, D 17
JOCP 120-8-2 Figure: 2 | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 29, E 26, d 15.2, D 19
JOCP 120-10-2 Figure: 2 | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 30, E 26, d 15.2, D 19
JOCP 120-12-2 Figure: 2 | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 31, E 26, d 15.2, D 19
JOCP 120-16-2 Figure: 2 | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54 | Pack qty: 50 | Dimensions (mm): W 28, G 37.5, E 26, d 15.2, D 19
JOCP 150-10-2 Figure: 2 | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 33, E 30, d 17.0, D 21
JOCP 150-12-2 Figure: 2 | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 35, E 30, d 17.0, D 21
JOCP 150-16-2 Figure: 2 | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62 | Pack qty: 30 | Dimensions (mm): W 31, G 40, E 30, d 17.0, D 21
JOCP 185-10-2 Figure: 2 | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 185-12-2 Figure: 2 | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 185-16-2 Figure: 2 | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Red 71 | Pack qty: 30 | Dimensions (mm): W 35, G 37.5, E 30, d 19.0, D 23.5
JOCP 240-10-2 Figure: 2 | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 240-12-2 Figure: 2 | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 240-16-2 Figure: 2 | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Brown 87 | Pack qty: 25 | Dimensions (mm): W 41, G 46.5, E 35, d 22, D 27.4
JOCP 300-10-2 Figure: 2 | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-12-2 Figure: 2 | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-16-2 Figure: 2 | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 300-20-2 Figure: 2 | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Green 94 | Pack qty: 20 | Dimensions (mm): W 45, G 54, E 44, d 24, D 30.5
JOCP 400-12-2 Figure: 2 | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
JOCP 400-16-2 Figure: 2 | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
JOCP 400-20-2 Figure: 2 | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: Black 106 | Pack qty: 10 | Dimensions (mm): W 49, G 54, E 44, d 26, D 34
Cable LugsJeoneo
86 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOCP Angled Tubular Cable Lugs, 90° or 45°

Brand Jeoneo·Cable Lugs

Available part numbers (86)

JOCP 6-5-1, JOCP 6-6-1, JOCP 10-5-1, JOCP 10-6-1, JOCP 16-5-1, JOCP 16-6-1, JOCP 25-6-1, JOCP 25-8-1, JOCP 35-6-1, JOCP 35-8-1 + 76 more — see full table ↓
