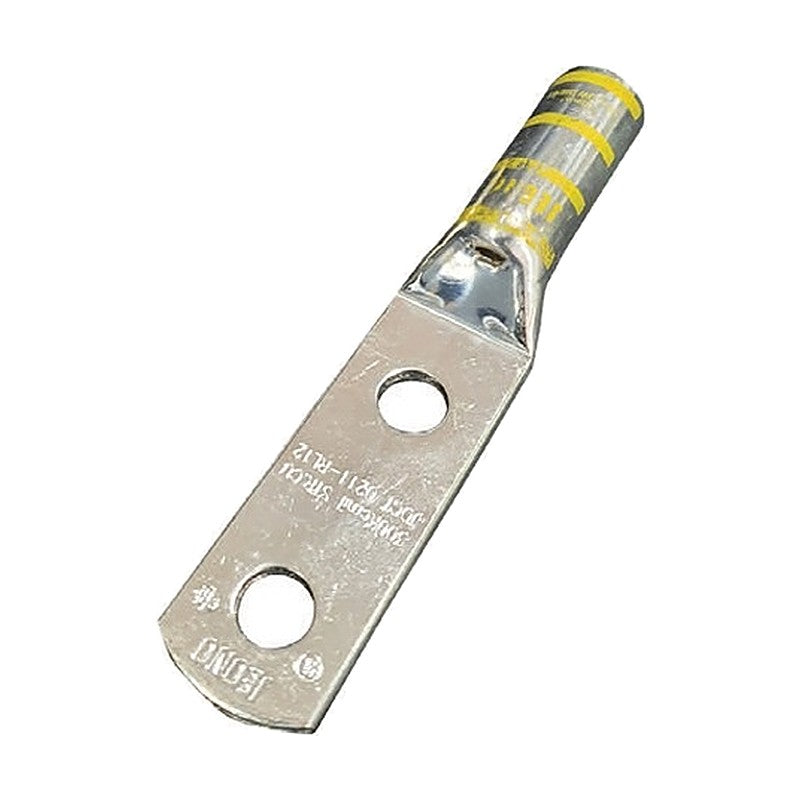

• Jeoneo JOCT Code Conductor Lugs, Two Hole, Round Tongue, 60-150 mm²
1 1

Jeoneo JOCT Code Conductor Lugs, Two Hole, Round Tongue, 60-150 mm²

Jeoneo JOCT Code Conductor Lugs, Two Hole, Round Tongue, 60-150 mm²

Two-hole copper lugs (Type CT) with inspection hole for code (class 2) conductors, standard (S) or long (L) barrel, round tongue, 60-150 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 2
Tongue form Round
JOCT 0206-RS05 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M5 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL05 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M5 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS06 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M6 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL06 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M6 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS08 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL08 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS10 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL10 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS12 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL12 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS16 Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL16 Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0207-RS08 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL08 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS10 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL10 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS12 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL12 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS16 Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 22, L 111
JOCT 0207-RL16 Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 45, L 130
JOCT 0208-RS08 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL08 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS10 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL10 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS12 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL12 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS16 Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 118
JOCT 0208-RL16 Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 133
JOCT 0209-RS08 Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL08 Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS10 Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL10 Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS12 Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL12 Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS16 Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 124
JOCT 0209-RL16 Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 136
JOCT 0210-RS08 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL08 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS10 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL10 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS12 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL12 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS16 Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 120
JOCT 0210-RL16 Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 140
JOCT 0211-RS08 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M8 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL08 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M8 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS10 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL10 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS12 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL12 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS16 Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL16 Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
Cable LugsJeoneo
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOCT Code Conductor Lugs, Two Hole, Round Tongue, 60-150 mm²

Brand Jeoneo·Cable Lugs

Available part numbers (52)

JOCT 0206-RS05, JOCT 0206-RL05, JOCT 0206-RS06, JOCT 0206-RL06, JOCT 0206-RS08, JOCT 0206-RL08, JOCT 0206-RS10, JOCT 0206-RL10, JOCT 0206-RS12, JOCT 0206-RL12 + 42 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JOCT 0206-RS05Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M5 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL05Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M5 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS06Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M6 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL06Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M6 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS08Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL08Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M8 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS10Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL10Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M10 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 19, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS12Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL12Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0206-RS16Barrel form: Standard | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 20, L 100
JOCT 0206-RL16Barrel form: Long | Wire range: 1/0 AWG / 60 mm² | Stud size: M16 | Color code / die: Pink 42, JOCD-1/0 | Pack qty: 50 | Dimensions (mm): W 21, d 10.2, D 13.2, A 44.5, E 37, L 117
JOCT 0207-RS08Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL08Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M8 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS10Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL10Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M10 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS12Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 22, L 105
JOCT 0207-RL12Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 21, d 11.3, D 14.6, A 44.5, E 45, L 128
JOCT 0207-RS16Barrel form: Standard | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 50 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 22, L 111
JOCT 0207-RL16Barrel form: Long | Wire range: 2/0 AWG / 70 mm² | Stud size: M16 | Color code / die: Black 45, JOCD-2/0 | Pack qty: 40 | Dimensions (mm): W 25, d 11.3, D 14.6, A 44.5, E 45, L 130
JOCT 0208-RS08Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL08Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M8 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS10Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL10Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M10 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS12Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 115
JOCT 0208-RL12Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M12 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 130
JOCT 0208-RS16Barrel form: Standard | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 30, L 118
JOCT 0208-RL16Barrel form: Long | Wire range: 3/0 AWG / 95 mm² | Stud size: M16 | Color code / die: Orange 48, JOCD-3/0 | Pack qty: 30 | Dimensions (mm): W 25, d 13.5, D 17, A 44.5, E 45, L 133
JOCT 0209-RS08Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL08Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M8 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS10Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL10Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M10 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS12Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 118
JOCT 0209-RL12Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M12 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 135
JOCT 0209-RS16Barrel form: Standard | Wire range: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 30 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 30, L 124
JOCT 0209-RL16Barrel form: Long | Wire range: 4/0 AWG / 100 mm² | Stud size: M16 | Color code / die: Orange 50, JOCD-4/0 | Pack qty: 25 | Dimensions (mm): W 26, d 14, D 18, A 44.5, E 47, L 136
JOCT 0210-RS08Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL08Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M8 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS10Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL10Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M10 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS12Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 117
JOCT 0210-RL12Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M12 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 136.5
JOCT 0210-RS16Barrel form: Standard | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 30, L 120
JOCT 0210-RL16Barrel form: Long | Wire range: 250Kcmil / 120 mm² | Stud size: M16 | Color code / die: Purple 54, JOCD-250 | Pack qty: 25 | Dimensions (mm): W 28, d 15.2, D 19, A 44.5, E 49, L 140
JOCT 0211-RS08Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M8 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL08Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M8 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS10Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL10Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M10 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS12Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL12Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M12 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140
JOCT 0211-RS16Barrel form: Standard | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 20 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 30, L 120
JOCT 0211-RL16Barrel form: Long | Wire range: 300Kcmil / 150 mm² | Stud size: M16 | Color code / die: Yellow 62, JOCD-300 | Pack qty: 15 | Dimensions (mm): W 32, d 17, D 21, A 44.5, E 49, L 140

Need a different model, or a part not listed here? Send us your parts list →
