• Jeoneo JOCT Code Conductor Lugs, Two Hole, Square Tongue, 185-630 mm²
1 1

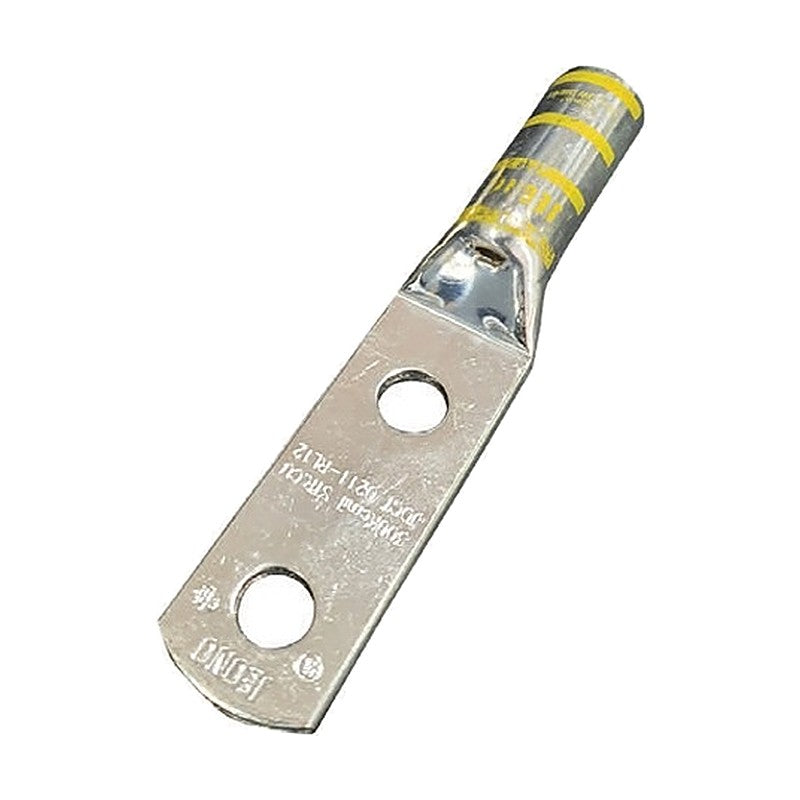

Jeoneo JOCT Code Conductor Lugs, Two Hole, Square Tongue, 185-630 mm²

Jeoneo JOCT Code Conductor Lugs, Two Hole, Square Tongue, 185-630 mm²

Two-hole copper lugs (Type CT) with inspection hole for code (class 2) conductors, standard (S) or long (L) barrel, square tongue, 185-630 mm².

Key features

  • With inspection hole
  • Color coded to show proper die number and color
  • For IEC 60228 class 2 conductors
  • UL listed 486A-486B, up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2
Holes 2
Tongue form Square
JOCT 0212-SS10 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Red 71, JOCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JOCT 0212-SL10 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M10 | Color code / die: Red 71, JOCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JOCT 0212-SS12 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Red 71, JOCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JOCT 0212-SL12 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M12 | Color code / die: Red 71, JOCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JOCT 0212-SS16 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Red 71, JOCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JOCT 0212-SL16 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M16 | Color code / die: Red 71, JOCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JOCT 0212-SS20 Barrel form: Standard | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Red 71, JOCD-350 | Pack qty: 15 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 35, L 129
JOCT 0212-SL20 Barrel form: Long | Wire range: 350Kcmil / 185 mm² | Stud size: M20 | Color code / die: Red 71, JOCD-350 | Pack qty: 10 | Dimensions (mm): W 35, d 19, D 23.5, A 44.5, E 56, L 150
JOCT 0213-SS10 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Blue 76, JOCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JOCT 0213-SL10 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M10 | Color code / die: Blue 76, JOCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 57, L 155
JOCT 0213-SS12 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Blue 76, JOCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JOCT 0213-SL12 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M12 | Color code / die: Blue 76, JOCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 57, L 155
JOCT 0213-SS16 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Blue 76, JOCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JOCT 0213-SL16 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M16 | Color code / die: Blue 76, JOCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 57, L 155
JOCT 0213-SS20 Barrel form: Standard | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Blue 76, JOCD-400 | Pack qty: 10 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 40, L 138
JOCT 0213-SL20 Barrel form: Long | Wire range: 400Kcmil / 200 mm² | Stud size: M20 | Color code / die: Blue 76, JOCD-400 | Pack qty: 8 | Dimensions (mm): W 37.5, d 21, D 26, A 44.5, E 57, L 155
JOCT 0214-SS10 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87, JOCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JOCT 0214-SL10 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87, JOCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JOCT 0214-SS12 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87, JOCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JOCT 0214-SL12 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87, JOCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JOCT 0214-SS16 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Brown 87, JOCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 142
JOCT 0214-SL16 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M16 | Color code / die: Brown 87, JOCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 159
JOCT 0214-SS20 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Brown 87, JOCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 147
JOCT 0214-SL20 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M20 | Color code / die: Brown 87, JOCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 162
JOCT 0214-SS24 Barrel form: Standard | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Brown 87, JOCD-500 | Pack qty: 10 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 40, L 147
JOCT 0214-SL24 Barrel form: Long | Wire range: 500Kcmil / 240 mm² | Stud size: M24 | Color code / die: Brown 87, JOCD-500 | Pack qty: 8 | Dimensions (mm): W 40, d 22, D 27.4, A 44.5, E 57, L 162
JOCT 0215-SS10 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94, JOCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JOCT 0215-SL10 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94, JOCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JOCT 0215-SS12 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94, JOCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JOCT 0215-SL12 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94, JOCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JOCT 0215-SS16 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Green 94, JOCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JOCT 0215-SL16 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M16 | Color code / die: Green 94, JOCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JOCT 0215-SS20 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Green 94, JOCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JOCT 0215-SL20 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M20 | Color code / die: Green 94, JOCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JOCT 0215-SS24 Barrel form: Standard | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Green 94, JOCD-600 | Pack qty: 8 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 44.5, L 146.5
JOCT 0215-SL24 Barrel form: Long | Wire range: 600Kcmil / 300 mm² | Stud size: M24 | Color code / die: Green 94, JOCD-600 | Pack qty: 6 | Dimensions (mm): W 45, d 24, D 30.5, A 44.5, E 67, L 169
JOCT 0216-SS12 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JOCT 0216-SL12 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JOCT 0216-SS16 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JOCT 0216-SL16 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M16 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JOCT 0216-SS20 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JOCT 0216-SL20 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M20 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JOCT 0216-SS24 Barrel form: Standard | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 48, L 150
JOCT 0216-SL24 Barrel form: Long | Wire range: 750Kcmil / 400 mm² | Stud size: M24 | Color code / die: Black 106, JOCD-940, -750 | Pack qty: 4 | Dimensions (mm): W 50, d 27, D 35, A 44.5, E 72.5, L 175
JOCT 0217-SS12 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JOCT 0217-SL12 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JOCT 0217-SS16 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JOCT 0217-SL16 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M16 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JOCT 0217-SS20 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JOCT 0217-SL20 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M20 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JOCT 0217-SS24 Barrel form: Standard | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 50, L 166
JOCT 0217-SL24 Barrel form: Long | Wire range: 1000Kcmil / 500 mm² | Stud size: M24 | Color code / die: White 125, JOCD-940, -1000 | Pack qty: 3 | Dimensions (mm): W 57.5, d 31, D 40, A 44.5, E 76, L 192
JOCT 0218-SS12 Barrel form: Standard | Wire range: 1250Kcmil / 630 mm² | Stud size: M12 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JOCT 0218-SL12 Barrel form: Long | Wire range: 1250Kcmil / 630 mm² | Stud size: M12 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JOCT 0218-SS16 Barrel form: Standard | Wire range: 1250Kcmil / 630 mm² | Stud size: M16 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JOCT 0218-SL16 Barrel form: Long | Wire range: 1250Kcmil / 630 mm² | Stud size: M16 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JOCT 0218-SS20 Barrel form: Standard | Wire range: 1250Kcmil / 630 mm² | Stud size: M20 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JOCT 0218-SL20 Barrel form: Long | Wire range: 1250Kcmil / 630 mm² | Stud size: M20 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
JOCT 0218-SS24 Barrel form: Standard | Wire range: 1250Kcmil / 630 mm² | Stud size: M24 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 54, L 170
JOCT 0218-SL24 Barrel form: Long | Wire range: 1250Kcmil / 630 mm² | Stud size: M24 | Color code / die: Pink 142, JOCD-1000, -1250 | Pack qty: 2 | Dimensions (mm): W 64.5, d 34, D 45, A 44.5, E 79, L 200
