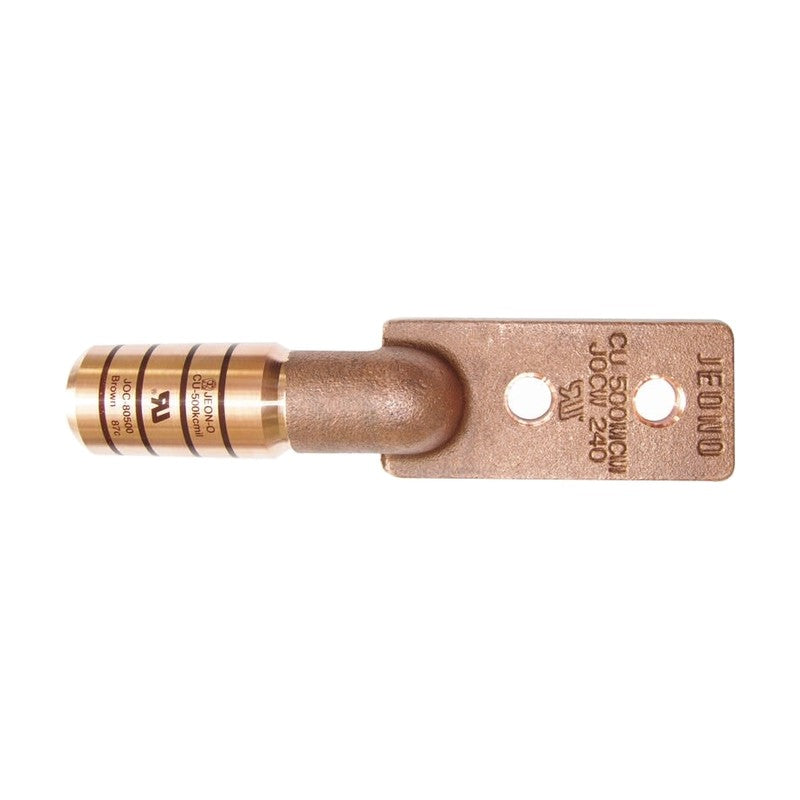

Jeoneo JOCW Compression Casting Lugs (1, 2, 4 and 6 Hole)

Jeoneo JOCW Compression Casting Lugs (1, 2, 4 and 6 Hole)

Cast copper compression lugs (Type CW) with 1, 2, 4 or 6 bolt holes for 25 to 1000 mm² conductors.

Key features

  • Cast electrolytic copper (TPC), copper finish; tin or silver plating on request
  • Available with 1, 2, 4 or 6 holes
  • UL listed per 486A-486B

Specifications

Material Electrolytic copper (TPC), cast
Surface Copper finish (tin or silver plated on request)
JOCW 25-1H Holes: 1 | Wire range: 4 AWG / 22,25 mm² | Stud size: M12 | Die color: Gray | Dimensions (mm): D 14, d1 6.4, E 26, A 55, A1 25, A3 30, B 40, C 5, d2 14, L 90, H 8, DC 12.1
JOCW 35-1H Holes: 1 | Wire range: 2 AWG / 35,38 mm² | Stud size: M12 | Die color: Brown | Dimensions (mm): D 14, d1 8.3, E 26, A 55, A1 25, A3 30, B 40, C 5, d2 14, L 90, H 8, DC 12.1
JOCW 50-1H Holes: 1 | Wire range: 1~1/0 AWG / 50,60 mm² | Stud size: M12 | Die color: Green | Dimensions (mm): D 19, d1 10.2, E 30, A 55, A1 25, A3 30, B 40, C 5, d2 14, L 94, H 10.5, DC 16.4
JOCW 50-2H Holes: 2 | Wire range: 1 AWG / 50 mm² | Stud size: M12 | Die color: Green | Dimensions (mm): D 19, d1 10.2, E 30, A 90, A1 18, A2 40±0.4~44.5±0.4, A3 32, B 40, C 6, d2 14, L 135, H 11, DC 16.4
JOCW 60-2H Holes: 2 | Wire range: 1/0 AWG / 60 mm² | Stud size: M12 | Die color: Pink | Dimensions (mm): D 19, d1 10.6, E 30, A 90, A1 18, A2 40±0.4~44.5±0.4, A3 32, B 40, C 6, d2 14, L 135, H 11, DC 16.4
JOCW 70-2H Holes: 2 | Wire range: 2/0 AWG / 70 mm² | Stud size: M12 | Die color: Black | Dimensions (mm): D 23, d1 11.7, E 39, A 95, A1 20, A2 40±0.4~44.5±0.4, A3 35, B 50, C 8, d2 14, L 150, H 13, DC 19.9
JOCW 95-2H Holes: 2 | Wire range: 3/0~4/0 AWG / 95,100 mm² | Stud size: M12 | Die color: Black | Dimensions (mm): D 23, d1 13.6, E 39, A 95, A1 20, A2 40±0.4~44.5±0.4, A3 35, B 50, C 8, d2 14, L 150, H 13, DC 19.9
JOCW 120-2H Holes: 2 | Wire range: 250 Kcmil / 120 mm² | Stud size: M12 | Die color: Purple | Dimensions (mm): D 26, d1 15.2, E 39, A 95, A1 20, A2 40±0.4~44.5±0.4, A3 35, B 50, C 8, d2 14, L 150, H 14.5, DC 22.5
JOCW 150-2H Holes: 2 | Wire range: 300 Kcmil / 150 mm² | Stud size: M12 | Die color: Yellow | Dimensions (mm): D 29, d1 16.9, E 44, A 110, A1 25, A2 40±0.4~44.5±0.4, A3 45, B 50, C 10, d2 14, L 170, H 16, DC 25.1
JOCW 185-2H Holes: 2 | Wire range: 400 Kcmil / 185 mm² | Stud size: M12 | Die color: Red | Dimensions (mm): D 32, d1 18.5, E 53, A 110, A1 25, A2 40±0.4~44.5±0.4, A3 45, B 50, C 10, d2 14, L 180, H 17.5, DC 27.7
JOCW 200-2H Holes: 2 | Wire range: 400 Kcmil / 200 mm² | Stud size: M12 | Die color: Red | Dimensions (mm): D 32, d1 19.5, E 53, A 110, A1 25, A2 40±0.4~44.5±0.4, A3 45, B 50, C 10, d2 14, L 180, H 17.5, DC 27.7
JOCW 240-2H Holes: 2 | Wire range: 500 Kcmil / 240 mm² | Stud size: M12 | Die color: Brown | Dimensions (mm): D 36, d1 21.0, E 62, A 110, A1 25, A2 40±0.4~44.5±0.4, A3 45, B 50, C 10, d2 14, L 207, H 19.5, DC 31.1
JOCW 250-2H Holes: 2 | Wire range: 500 Kcmil / 250 mm² | Stud size: M12 | Die color: Brown | Dimensions (mm): D 38, d1 21.9, E 62, A 110, A1 25, A2 40±0.4~44.5±0.4, A3 45, B 50, C 10, d2 14, L 207, H 20.5, DC 32.9
JOCW 300-2H Holes: 2 | Wire range: 600 Kcmil / 300~325 mm² | Stud size: M12 | Die color: Green | Dimensions (mm): D 42, d1 24.7, E 62, A 115, A1 25, A2 40±0.4~44.5±0.4, A3 50, B 50, C 12, d2 14, L 212, H 23, DC 36.3
JOCW 400-2H Holes: 2 | Wire range: 800 Kcmil / 400 mm² | Stud size: M12 | Die color: Black | Dimensions (mm): D 47, d1 27.4, E 70, A 115, A1 25, A2 40±0.4~44.5±0.4, A3 50, B 50, C 12, d2 14, L 222, H 22.5, DC 40.7
JOCW 500-2H Holes: 2 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Die color: White | Dimensions (mm): D 47, d1 30.2, E 70, A 115, A1 25, A2 40±0.4~44.5±0.4, A3 50, B 50, C 12, d2 14, L 222, H 22.5, DC 40.7
JOCW 300-4H Holes: 4 | Wire range: 600 Kcmil / 300,325 mm² | Stud size: M12 | Die color: Green | Dimensions (mm): D 42, d1 24.7, E 62, A 115, A1 25, A2 40, ±0.4, A3 50, B 75, B1 17.5, B2 40, ±0.4, C 10, d2 14, L 212, H 23, DC 36.3
JOCW 400-4H Holes: 4 | Wire range: 800 Kcmil / 400 mm² | Stud size: M12 | Die color: Black | Dimensions (mm): D 47, d1 27.4, E 70, A 115, A1 25, A2 40, ±0.4, A3 50, B 75, B1 17.5, B2 40, ±0.4, C 12, d2 14, L 222, H 22.5, DC 40.7
JOCW 500-4H Holes: 4 | Wire range: 1000 Kcmil / 500 mm² | Stud size: M12 | Die color: White | Dimensions (mm): D 47, d1 30.2, E 70, A 115, A1 25, A2 40, ±0.4, A3 50, B 75, B1 17.5, B2 40, ±0.4, C 12, d2 14, L 222, H 22.5, DC 40.7
JOCW 630-6H Holes: 6 | Wire range: 1250 Kcmil / 600, 630 mm² | Stud size: M12 | Die color: Pink | Dimensions (mm): D 51, d1 33.3, E 70, A 155, A1 25, A2 40±0.4, A3 50, B 75, B1 17.5, B2 40±0.4, C 12, d2 14, L 262, H 28, DC 44.1
JOCW 800-6H Holes: 6 | Wire range: 1600 Kcmil / 800 mm² | Stud size: M16 | Die color: Orange | Dimensions (mm): D 56, d1 39.3, E 90, A 190, A1 30, A2 50±0.6, A3 60, B 100, B1 25, B2 50±0.6, C 12, d2 18, L 325, H 30.5, DC 48.4
JOCW 1000-6H Holes: 6 | Wire range: 2000 Kcmil / 1,000 mm² | Stud size: M16 | Die color: Green | Dimensions (mm): D 64, d1 43.2, E 100, A 190, A1 30, A2 50±0.6, A3 60, B 100, B1 25, B2 50±0.6, C 14, d2 18, L 335, H 34.5, DC 55.4
