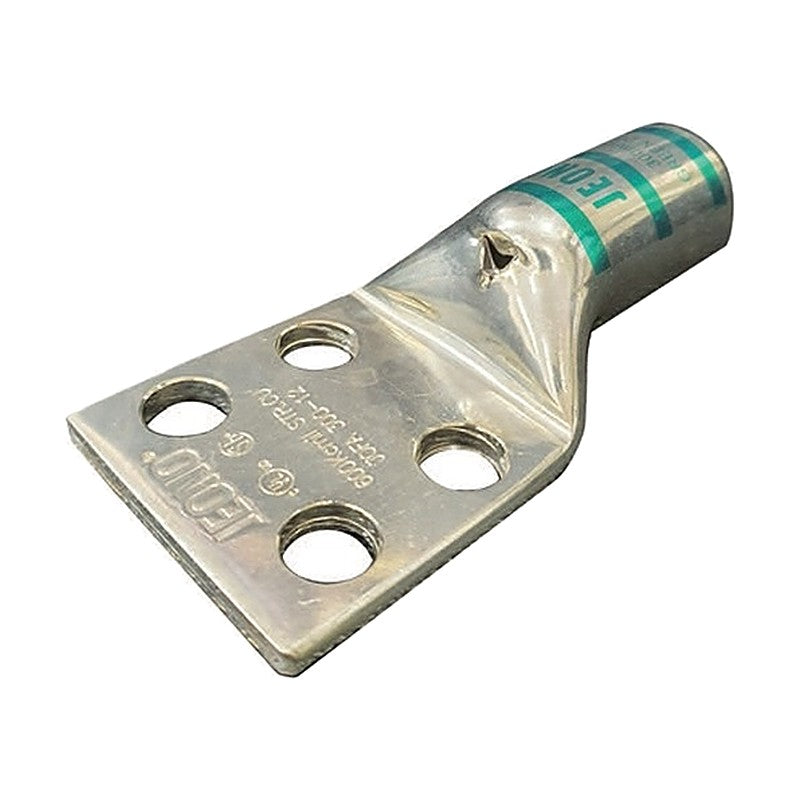

Jeoneo JOFA/JOFB Four-Hole Tubular Cable Lugs

Jeoneo JOFA/JOFB Four-Hole Tubular Cable Lugs

Four-hole tubular copper cable lugs for 240 to 1000 mm² conductors up to 35 kV; JOFA with 25 mm hole distance, JOFB with 40 mm hole distance.

Key features

  • With or without inspection hole
  • For IEC 60228 class 2 and class 5 conductors
  • Voltage range up to 35 kV

Specifications

Material Electrolytic copper (TPC)
Surface Tin plated
Conductor class IEC 60228 class 2 and class 5
Holes 4
Jeoneo JOFA/JOFB Four-Hole Tubular Cable Lugs
JOFA 240-10 Hole distance: 25 mm | Wire range: 500Kcmil / 240 mm² | Stud size: M10 | Color code / die: Brown 87/, 110~125-26 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 27.4, d 22, E 45, L 110
JOFA 240-12 Hole distance: 25 mm | Wire range: 500Kcmil / 240 mm² | Stud size: M12 | Color code / die: Brown 87/, 110~125-26 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 27.4, d 22, E 45, L 110
JOFA 240-14 Hole distance: 25 mm | Wire range: 500Kcmil / 240 mm² | Stud size: M14 | Color code / die: Brown 87/, 110~125-26 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 27.4, d 22, E 45, L 110
JOFA 300-10 Hole distance: 25 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 30.5, d 24, E 50, L 115
JOFA 300-12 Hole distance: 25 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 30.5, d 24, E 50, L 115
JOFA 300-14 Hole distance: 25 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M14 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 30.5, d 24, E 50, L 115
JOFA 400-10 Hole distance: 25 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M10 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 34, d 26, E 52, L 120
JOFA 400-12 Hole distance: 25 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 34, d 26, E 52, L 120
JOFA 400-14 Hole distance: 25 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 34, d 26, E 52, L 120
JOFA 500-10 Hole distance: 25 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M10 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 40, d 31, E 56, L 124
JOFA 500-12 Hole distance: 25 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 40, d 31, E 56, L 124
JOFA 500-14 Hole distance: 25 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 58, B 35, A 25, A1 15, D 40, d 31, E 56, L 124
JOFA 630-10 Hole distance: 25 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M10 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 65, B 35, A 25, A1 15, D 45, d 34, E 66, L 145
JOFA 630-12 Hole distance: 25 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M12 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 65, B 35, A 25, A1 15, D 45, d 34, E 66, L 145
JOFA 630-14 Hole distance: 25 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M14 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 65, B 35, A 25, A1 15, D 45, d 34, E 66, L 145
JOFA 800-10 Hole distance: 25 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M10 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 73, B 35, A 25, A1 15, D 50.6, d 39, E 70, L 150
JOFA 800-12 Hole distance: 25 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M12 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 73, B 35, A 25, A1 15, D 50.6, d 39, E 70, L 150
JOFA 800-14 Hole distance: 25 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M14 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 73, B 35, A 25, A1 15, D 50.6, d 39, E 70, L 150
JOFA 1000-10 Hole distance: 25 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M10 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 35, A 25, A1 15, D 56.2, d 43, E 88, L 188
JOFA 1000-12 Hole distance: 25 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M12 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 35, A 25, A1 15, D 56.2, d 43, E 88, L 188
JOFA 1000-14 Hole distance: 25 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M14 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 35, A 25, A1 15, D 56.2, d 43, E 88, L 188
JOFB 300-10 Hole distance: 40 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M10 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 30.5, d 24, E 55, L 150
JOFB 300-12 Hole distance: 40 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M12 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 30.5, d 24, E 55, L 150
JOFB 300-14 Hole distance: 40 mm | Wire range: 600Kcmil / 300 mm² | Stud size: M14 | Color code / die: Green 94/, 150-29 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 30.5, d 24, E 55, L 150
JOFB 400-10 Hole distance: 40 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M10 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 34, d 26, E 59, L 165
JOFB 400-12 Hole distance: 40 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M12 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 34, d 26, E 59, L 165
JOFB 400-14 Hole distance: 40 mm | Wire range: 750Kcmil / 400 mm² | Stud size: M14 | Color code / die: Black 106/, 180~200-32 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 34, d 26, E 59, L 165
JOFB 500-10 Hole distance: 40 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M10 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 40, d 31, E 70, L 172
JOFB 500-12 Hole distance: 40 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M12 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 40, d 31, E 70, L 172
JOFB 500-14 Hole distance: 40 mm | Wire range: 1000Kcmil / 500 mm² | Stud size: M14 | Color code / die: White 125/, 250-38 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 40, d 31, E 70, L 172
JOFB 630-10 Hole distance: 40 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M10 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 45, d 34, E 70, L 187
JOFB 630-12 Hole distance: 40 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M12 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 45, d 34, E 70, L 187
JOFB 630-14 Hole distance: 40 mm | Wire range: 1250Kcmil / 630 mm² | Stud size: M14 | Color code / die: Pink 142/, 400~500-47 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 45, d 34, E 70, L 187
JOFB 800-10 Hole distance: 40 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M10 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 50.6, d 39, E 70, L 190
JOFB 800-12 Hole distance: 40 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M12 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 50.6, d 39, E 70, L 190
JOFB 800-14 Hole distance: 40 mm | Wire range: 1500Kcmil / 800 mm² | Stud size: M14 | Color code / die: Orange 150/, 600-51 | Dimensions (mm): W 75, B 40, A 40, A1 15, D 50.6, d 39, E 70, L 190
JOFB 1000-10 Hole distance: 40 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M10 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 40, A 40, A1 20, D 56.2, d 43, E 88, L 215
JOFB 1000-12 Hole distance: 40 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M12 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 40, A 40, A1 20, D 56.2, d 43, E 88, L 215
JOFB 1000-14 Hole distance: 40 mm | Wire range: 2000Kcmil / 1000 mm² | Stud size: M14 | Color code / die: Green 194/, SGWD-3030 | Dimensions (mm): W 80, B 40, A 40, A1 20, D 56.2, d 43, E 88, L 215
Cable LugsJeoneo
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOFA/JOFB Four-Hole Tubular Cable Lugs

Brand Jeoneo·Cable Lugs

Available part numbers (39)

JOFA 240-10, JOFA 240-12, JOFA 240-14, JOFA 300-10, JOFA 300-12, JOFA 300-14, JOFA 400-10, JOFA 400-12, JOFA 400-14, JOFA 500-10 + 29 more — see full table ↓
