• Jeoneo JOGT Circuit Breaker Terminals, Type GT
1 1

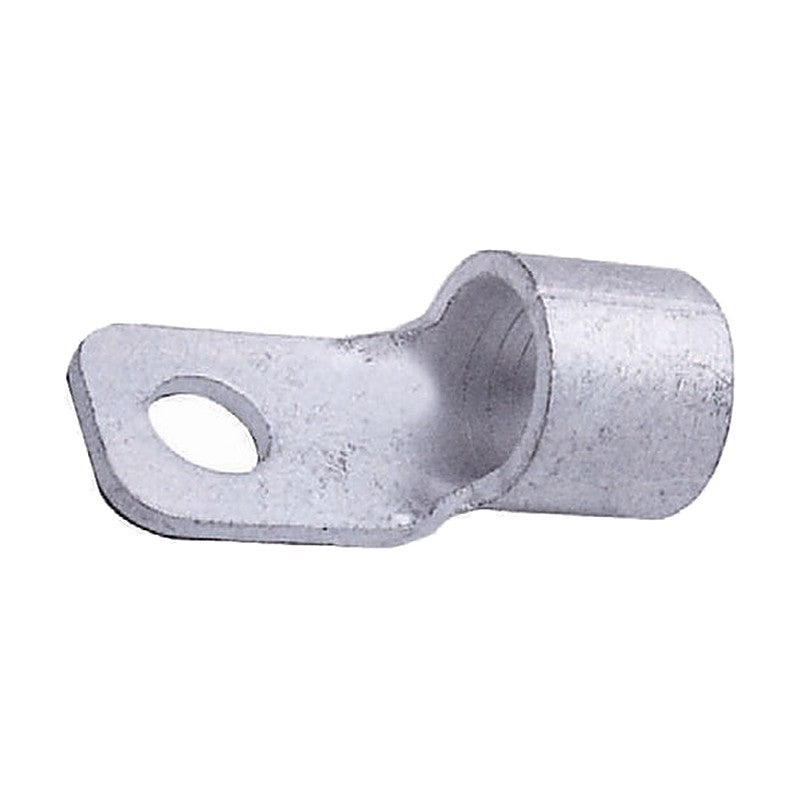

Jeoneo JOGT Circuit Breaker Terminals, Type GT

Jeoneo JOGT Circuit Breaker Terminals, Type GT

Non-insulated electrolytic copper terminals (Type GT) for connecting 35 to 95 mm² conductors to low-voltage circuit breakers.

Key features

  • Electrolytic copper, tin plated, brazed seam

Specifications

Material Electrolytic copper
Surface Tin plated
Barrel Brazed seam
Jeoneo JOGT Circuit Breaker Terminals, Type GT
JOGT 35-8 Wire range: 2 AWG / 35 mm² | Stud size (mm): 8 | Pack qty: 200 | Dimensions (mm): B 14.0, L 39.0, E 14.0, d 9.7, t 1.8
JOGT 35-10 Wire range: 2 AWG / 35 mm² | Stud size (mm): 10 | Pack qty: 200 | Dimensions (mm): B 14.0, L 39.0, E 14.0, d 9.7, t 1.8
JOGT 50-8 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 15.0, L 37.0, E 17.5, d 11.8, t 1.8
JOGT 50-10 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 15.0, L 37.0, E 17.5, d 11.8, t 1.8
JOGT 70-8 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 20.0, L 50.0, E 18.0, d 14.2, t 2.4
JOGT 70-10 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 20.0, L 50.0, E 18.0, d 14.2, t 2.4
JOGT 95-8 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 8 | Pack qty: 50 | Dimensions (mm): B 20.0, L 50.0, E 19.5, d 16.0, t 2.4
JOGT 95-10 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 20.0, L 50.0, E 19.5, d 16.0, t 2.4
Ring TerminalsJeoneo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOGT Circuit Breaker Terminals, Type GT

Brand Jeoneo·Ring Terminals

Available part numbers (8)

JOGT 35-8, JOGT 35-10, JOGT 50-8, JOGT 50-10, JOGT 70-8, JOGT 70-10, JOGT 95-8, JOGT 95-10

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOGT Circuit Breaker Terminals, Type GT
0 selected
RFQ List (0)
Product codeSpec
JOGT 35-8Wire range: 2 AWG / 35 mm² | Stud size (mm): 8 | Pack qty: 200 | Dimensions (mm): B 14.0, L 39.0, E 14.0, d 9.7, t 1.8
JOGT 35-10Wire range: 2 AWG / 35 mm² | Stud size (mm): 10 | Pack qty: 200 | Dimensions (mm): B 14.0, L 39.0, E 14.0, d 9.7, t 1.8
JOGT 50-8Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 15.0, L 37.0, E 17.5, d 11.8, t 1.8
JOGT 50-10Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 15.0, L 37.0, E 17.5, d 11.8, t 1.8
JOGT 70-8Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 20.0, L 50.0, E 18.0, d 14.2, t 2.4
JOGT 70-10Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 20.0, L 50.0, E 18.0, d 14.2, t 2.4
JOGT 95-8Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 8 | Pack qty: 50 | Dimensions (mm): B 20.0, L 50.0, E 19.5, d 16.0, t 2.4
JOGT 95-10Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 20.0, L 50.0, E 19.5, d 16.0, t 2.4
