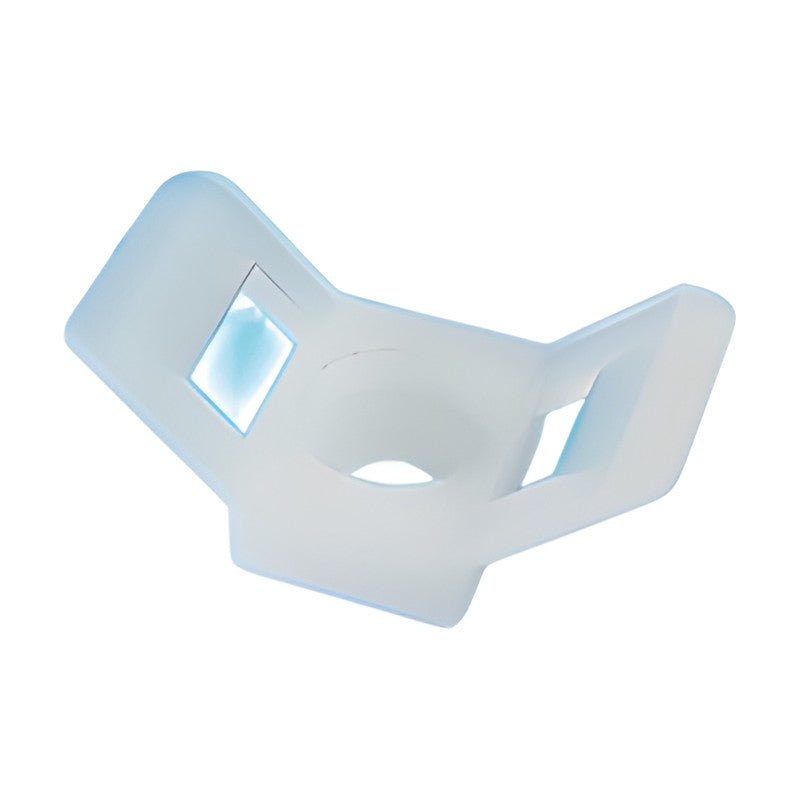

Jeoneo JOHC Saddle-Type Cable Tie Mounts

Jeoneo JOHC Saddle-Type Cable Tie Mounts

Nylon 6.6 saddle-type cable tie mounts for screw mounting, giving maximum stability to wire bundles.

Key features

  • Saddle design provides maximum stability to the wire bundle
  • Flammability UL94 V-2

Specifications

Material Nylon 6.6
Flammability UL94 V-2
Pack qty 100
Jeoneo JOHC Saddle-Type Cable Tie Mounts
JOHC-3 Max. tie width (mm): 9.0 | Dimensions (mm): T 9.5, A 23.0, B 13.8, C 17.5, C1 10.8, Dia) 5.3
JOHC-4 Max. tie width (mm): 9.0 | Dimensions (mm): T 9.3, A 30.0, B 14.7, C 11.6, C1 5.9, Dia) 5.0
JOHC-5 Max. tie width (mm): 7.6 | Dimensions (mm): T 7.8, A 21.5, B 16.0, C 10.0, E 9.7, E1 5.8
Cable Tie MountsJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOHC Saddle-Type Cable Tie Mounts

Brand Jeoneo·Cable Tie Mounts

Available part numbers (3)

JOHC-3, JOHC-4, JOHC-5

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOHC Saddle-Type Cable Tie Mounts
0 selected
RFQ List (0)
Product codeSpec
JOHC-3Max. tie width (mm): 9.0 | Dimensions (mm): T 9.5, A 23.0, B 13.8, C 17.5, C1 10.8, Dia) 5.3
JOHC-4Max. tie width (mm): 9.0 | Dimensions (mm): T 9.3, A 30.0, B 14.7, C 11.6, C1 5.9, Dia) 5.0
JOHC-5Max. tie width (mm): 7.6 | Dimensions (mm): T 7.8, A 21.5, B 16.0, C 10.0, E 9.7, E1 5.8
