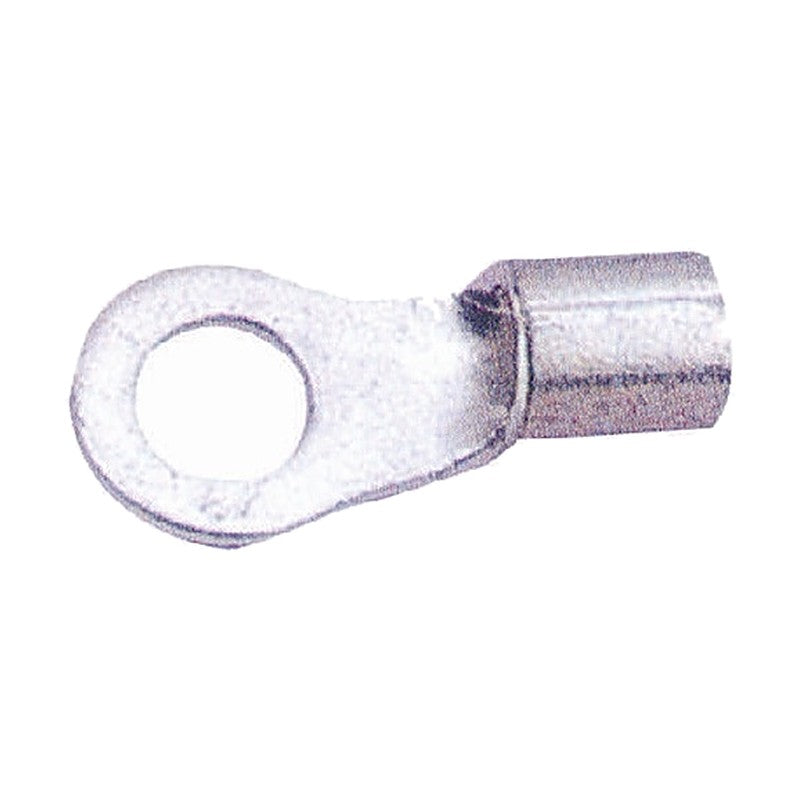

Jeoneo JOLT Non-Insulated Long-Barrel Ring Terminals

Jeoneo JOLT Non-Insulated Long-Barrel Ring Terminals

Non-insulated long-barrel electrolytic copper ring terminals with brazed seam for 35 to 300 mm² conductors.

Key features

  • Long barrel for increased crimp length
  • Electrolytic copper, tin plated, brazed seam

Specifications

Material Electrolytic copper
Surface Tin plated
Barrel Brazed seam, long type
JOLT 35-16 Wire range: 2 AWG / 35 mm² | Stud size (mm): 16 | Pack qty: 200 | Dimensions (mm): B 30.5, L 54.0, E 15.0, d 9.7, t 1.4
JOLT 35-20 Wire range: 2 AWG / 35 mm² | Stud size (mm): 20 | Pack qty: 200 | Dimensions (mm): B 30.5, L 54.0, E 15.0, d 9.7, t 1.4
JOLT 70-12 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 12 | Pack qty: 100 | Dimensions (mm): B 31.0, L 67.0, E 20.0, d 14.4, t 1.8
JOLT 95-12 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 31.0, L 67.0, E 21.0, d 16.0, t 2.0
JOLT 120-12 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 120-16 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 16 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 120-20 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 20 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 150-12 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 150-16 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 150-20 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 185-12 Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 185-16 Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 185-20 Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 240-12 Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 12 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 240-16 Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 16 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 240-20 Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 20 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 300-12 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 12 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
JOLT 300-16 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 16 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
JOLT 300-20 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 20 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
Ring TerminalsJeoneo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOLT Non-Insulated Long-Barrel Ring Terminals

Brand Jeoneo·Ring Terminals

Available part numbers (19)

JOLT 35-16, JOLT 35-20, JOLT 70-12, JOLT 95-12, JOLT 120-12, JOLT 120-16, JOLT 120-20, JOLT 150-12, JOLT 150-16, JOLT 150-20 + 9 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JOLT 35-16Wire range: 2 AWG / 35 mm² | Stud size (mm): 16 | Pack qty: 200 | Dimensions (mm): B 30.5, L 54.0, E 15.0, d 9.7, t 1.4
JOLT 35-20Wire range: 2 AWG / 35 mm² | Stud size (mm): 20 | Pack qty: 200 | Dimensions (mm): B 30.5, L 54.0, E 15.0, d 9.7, t 1.4
JOLT 70-12Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 12 | Pack qty: 100 | Dimensions (mm): B 31.0, L 67.0, E 20.0, d 14.4, t 1.8
JOLT 95-12Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 31.0, L 67.0, E 21.0, d 16.0, t 2.0
JOLT 120-12Wire range: 250Kcmil / 120 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 120-16Wire range: 250Kcmil / 120 mm² | Stud size (mm): 16 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 120-20Wire range: 250Kcmil / 120 mm² | Stud size (mm): 20 | Pack qty: 50 | Dimensions (mm): B 34.2, L 69.5, E 25.5, d 17.0, t 2.5
JOLT 150-12Wire range: 300Kcmil / 150 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 150-16Wire range: 300Kcmil / 150 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 150-20Wire range: 300Kcmil / 150 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 36.0, L 78.0, E 27.5, d 20.0, t 2.8
JOLT 185-12Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 185-16Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 185-20Wire range: 350~400Kcmil / 185 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 39.0, L 86.5, E 31.0, d 22.0, t 3.2
JOLT 240-12Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 12 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 240-16Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 16 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 240-20Wire range: 400~500Kcmil / 240 mm² | Stud size (mm): 20 | Pack qty: 25 | Dimensions (mm): B 40.0, L 88.5, E 32.5, d 25.0, t 3.3
JOLT 300-12Wire range: 600Kcmil / 300 mm² | Stud size (mm): 12 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
JOLT 300-16Wire range: 600Kcmil / 300 mm² | Stud size (mm): 16 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
JOLT 300-20Wire range: 600Kcmil / 300 mm² | Stud size (mm): 20 | Pack qty: 16 | Dimensions (mm): B 50.5, L 100.0, E 37.5, d 28.0, t 3.7
