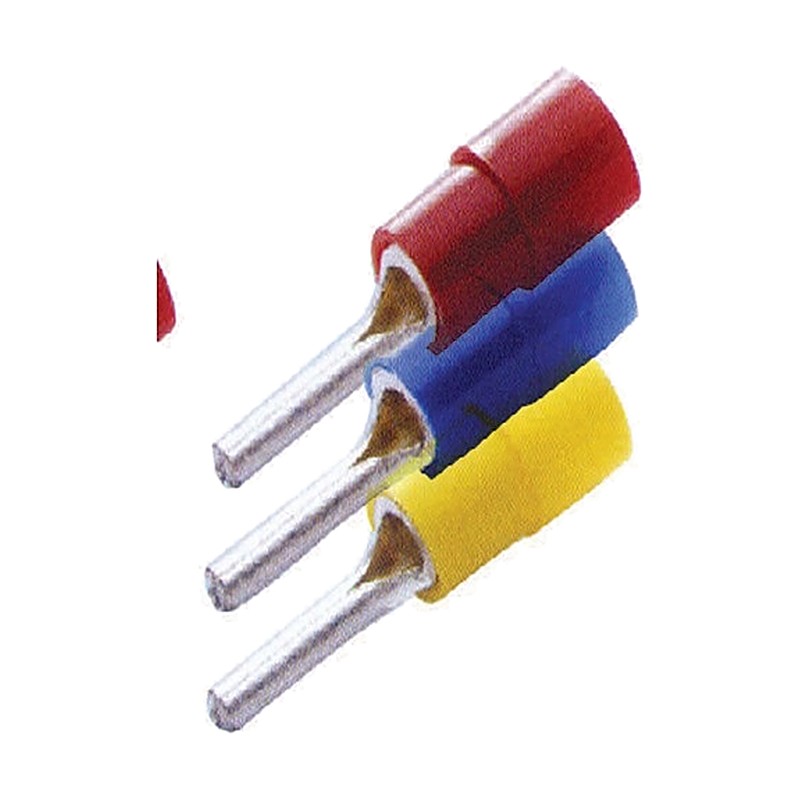

Jeoneo JONP Nylon-Insulated Pin Terminals

Jeoneo JONP Nylon-Insulated Pin Terminals

Nylon-insulated copper pin terminals for high-temperature applications up to 125 °C; U suffix = without brazed seam, W suffix = brazed seam.

Key features

  • Oxygen-free copper, tin plated
  • Nylon insulation, UL94 V-2

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation Nylon
Temperature rating Up to 125 °C
Flammability UL94 V-2
Color RED, BLUE, YELLOW
Pack qty 1,000
Jeoneo JONP Nylon-Insulated Pin Terminals
JONP 15U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 252U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4U Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6U Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
JONP 15W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 252W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6W Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
Pin TerminalsJeoneo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JONP Nylon-Insulated Pin Terminals

Brand Jeoneo·Pin Terminals

Available part numbers (10)

JONP 15U, JONP 252U, JONP 253U, JONP 4U, JONP 6U, JONP 15W, JONP 252W, JONP 253W, JONP 4W, JONP 6W

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JONP Nylon-Insulated Pin Terminals
0 selected
RFQ List (0)
Product codeSpec
JONP 15UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 252UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4UBrazed seam: No | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6UBrazed seam: No | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
JONP 15WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 252WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4WBrazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6WBrazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
