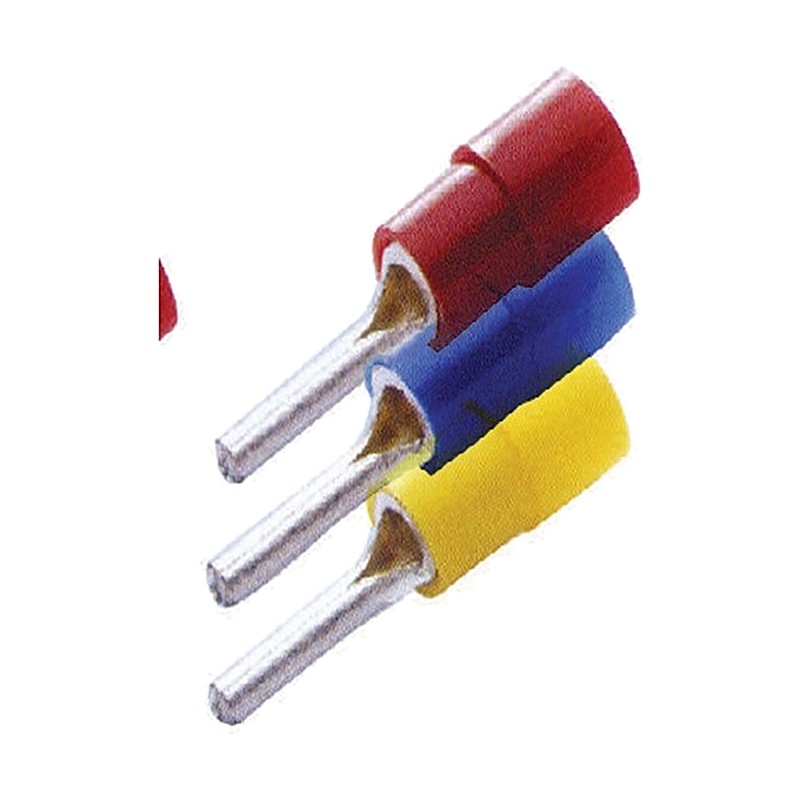

Jeoneo JONP Nylon-Insulated Pin Terminals, Electrolytic Copper

Jeoneo JONP Nylon-Insulated Pin Terminals, Electrolytic Copper

Nylon-insulated electrolytic copper pin terminals for 1.5 to 6 mm² wire, with or without brazed seam.

Key features

  • Electrolytic copper, tin plated
  • Nylon insulation

Specifications

Material Electrolytic copper
Surface Tin plated
Insulation Nylon
Color RED, BLUE, YELLOW
Pack qty 1,000
Jeoneo JONP Nylon-Insulated Pin Terminals, Electrolytic Copper
JONP 152 Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 251 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 1.8, L 23.0, E 11.0, D 6.3
JONP 252 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253 Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4 Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6 Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
Pin TerminalsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JONP Nylon-Insulated Pin Terminals, Electrolytic Copper

Brand Jeoneo·Pin Terminals

Available part numbers (6)

JONP 152, JONP 251, JONP 252, JONP 253, JONP 4, JONP 6

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JONP Nylon-Insulated Pin Terminals, Electrolytic Copper
0 selected
RFQ List (0)
Product codeSpec
JONP 152Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 1.8, L 25.0, E 11.0, D 6.1
JONP 251Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 1.8, L 23.0, E 11.0, D 6.3
JONP 252Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 25.0, E 11.0, D 6.3
JONP 253Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 28.0, E 11.0, D 6.3
JONP 4Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.5, E 14.5, D 7.8
JONP 6Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.5, E 14.5, D 8.3
