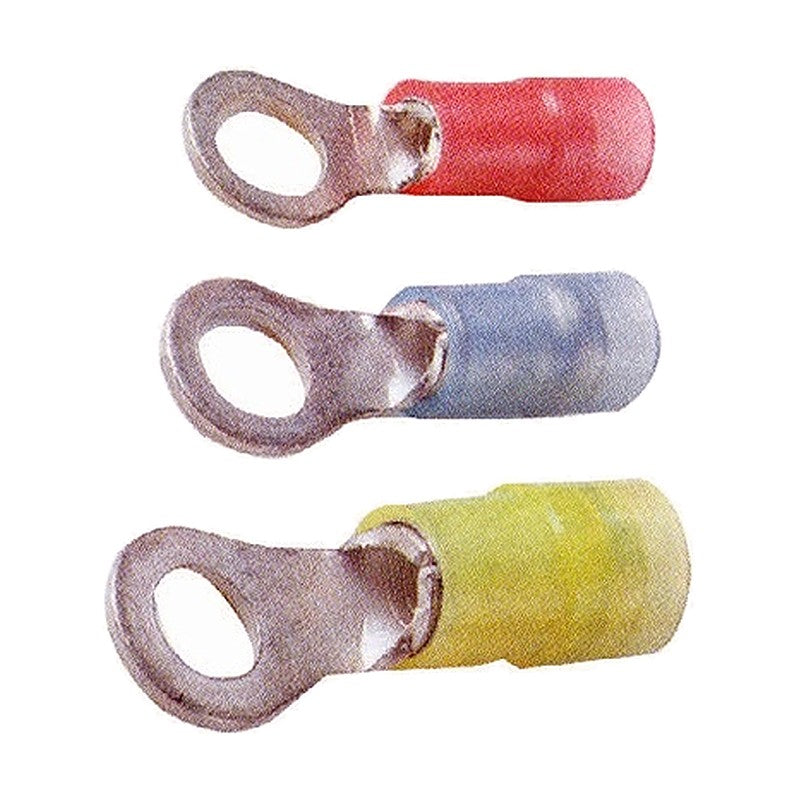

Jeoneo JONR Nylon-Insulated Funnel-Entry Ring Terminals

Jeoneo JONR Nylon-Insulated Funnel-Entry Ring Terminals

Nylon-insulated funnel-entry copper ring terminals (Type RBP(R)) for high-temperature applications up to 125 °C, with or without brazed seam (W suffix = brazed seam).

Key features

  • Funnel entry for easy wire insertion
  • Nylon insulation: translucent up to 6 mm², opaque from 10 mm²
  • For high-temperature applications up to 125 °C
  • UL94 V-2 flammability rating

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation Nylon
Temperature rating Up to 125 °C
Flammability UL94 V-2
Jeoneo JONR Nylon-Insulated Funnel-Entry Ring Terminals
JONR 1.5-3 Brazed seam: No | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 20, E 11, D 6.1, t 0.7
JONR 1.5-S3.5 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 20, E 11, D 6.1, t 0.7
JONR 1.5-3.5 Brazed seam: No | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 23.3, E 11, D 6.1, t 0.7
JONR 1.5-K4 Brazed seam: No | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 23.3, E 11, D 6.1, t 0.7
JONR 1.5-M4 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 22.2, E 11, D 6.1, t 0.7
JONR 1.5-4 Brazed seam: No | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 23.5, E 11, D 6.1, t 0.7
JONR 1.5-5 Brazed seam: No | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 23.5, E 11, D 6.1, t 0.7
JONR 1.5-6 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 28.2, E 11, D 6.1, t 0.7
JONR 1.5-8 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 28.2, E 11, D 6.1, t 0.7
JONR 1.5-10 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 30.3, E 11, D 6.1, t 0.7
JONR 1.5-12 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 33.8, E 11, D 6.1, t 0.7
JONR 2.5-M3 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 23.5, E 11, D 6.6, t 0.8
JONR 2.5-3.5 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 24.5, E 11, D 6.6, t 0.8
JONR 2.5-K3.5 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-M4 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 22.5, E 11, D 6.6, t 0.8
JONR 2.5-4 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.5, L 24.3, E 11, D 6.6, t 0.8
JONR 2.5-K4 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-S5 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-5 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 24.8, E 11, D 6.6, t 0.8
JONR 2.5-M6 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 24.8, E 11, D 6.6, t 0.8
JONR 2.5-6 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 29.3, E 11, D 6.6, t 0.8
JONR 2.5-8 Brazed seam: No | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 29.3, E 11, D 6.6, t 0.8
JONR 2.5-10 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14, L 30.3, E 11, D 6.6, t 0.8
JONR 2.5-12 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17, L 33.8, E 11, D 6.6, t 0.8
JONR 1.5-3W Brazed seam: Yes | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 20, E 11, D 6.1, t 0.7
JONR 1.5-S3.5W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 20, E 11, D 6.1, t 0.7
JONR 1.5-3.5W Brazed seam: Yes | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 23.3, E 11, D 6.1, t 0.7
JONR 1.5-K4W Brazed seam: Yes | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 23.3, E 11, D 6.1, t 0.7
JONR 1.5-M4W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 22.2, E 11, D 6.1, t 0.7
JONR 1.5-4W Brazed seam: Yes | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 23.5, E 11, D 6.1, t 0.7
JONR 1.5-5W Brazed seam: Yes | KS certified: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 23.5, E 11, D 6.1, t 0.7
JONR 1.5-6W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 28.2, E 11, D 6.1, t 0.7
JONR 1.5-8W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 28.2, E 11, D 6.1, t 0.7
JONR 1.5-10W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 30.3, E 11, D 6.1, t 0.7
JONR 1.5-12W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 33.8, E 11, D 6.1, t 0.7
JONR 2.5-M3W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 23.5, E 11, D 6.6, t 0.8
JONR 2.5-3.5W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 24.5, E 11, D 6.6, t 0.8
JONR 2.5-K3.5W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-M4W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 22.5, E 11, D 6.6, t 0.8
JONR 2.5-4W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.5, L 24.3, E 11, D 6.6, t 0.8
JONR 2.5-K4W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-S5W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 25.2, E 11, D 6.6, t 0.8
JONR 2.5-5W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 24.8, E 11, D 6.6, t 0.8
JONR 2.5-M6W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 24.8, E 11, D 6.6, t 0.8
JONR 2.5-6W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 29.3, E 11, D 6.6, t 0.8
JONR 2.5-8W Brazed seam: Yes | KS certified: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 29.3, E 11, D 6.6, t 0.8
JONR 2.5-10W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14, L 30.3, E 11, D 6.6, t 0.8
JONR 2.5-12W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 17, L 33.8, E 11, D 6.6, t 0.8
JONR 4-M4 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-4 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-5 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-6 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 32.5, E 14.5, D 7.8, t 0.9
JONR 4-8 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 32.5, E 14.5, D 7.8, t 0.9
JONR 4-10 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14, L 34, E 14.5, D 7.8, t 0.9
JONR 4-12 Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16, L 35, E 14.5, D 7.8, t 0.9
JONR 6-S3.5 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 28, E 14.5, D 8.3, t 1.0
JONR 6-3.5 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 6-M4 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7, L 26.3, E 14.5, D 8.3, t 1.0
JONR 4, 6-4 Brazed seam: No | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 4, 6-5 Brazed seam: No | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 4, 6-6 Brazed seam: No | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 36, E 14.5, D 8.3, t 1.0
JONR 6-K6 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, 13.5, 13.5, L 34.6, E 14.5, D 8.3, t 1.0
JONR 6-S8 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, 13.5, 13.5, L 36, E 14.5, D 8.3, t 1.0
JONR 4, 6-8 Brazed seam: No | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 15, L 36.3, E 14.5, D 8.3, t 1.0
JONR 4, 6-10 Brazed seam: No | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 15, L 36.3, E 14.5, D 8.3, t 1.0
JONR 6-12 Brazed seam: No | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16, L 33.8, E 14.5, D 8.3, t 1.0
JONR 4-M4W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-4W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-5W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 27.5, E 14.5, D 7.8, t 0.9
JONR 4-6W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 32.5, E 14.5, D 7.8, t 0.9
JONR 4-8W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 32.5, E 14.5, D 7.8, t 0.9
JONR 4-10W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 14, L 34, E 14.5, D 7.8, t 0.9
JONR 4-12W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16, L 35, E 14.5, D 7.8, t 0.9
JONR 6-S3.5W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 28, E 14.5, D 8.3, t 1.0
JONR 6-3.5W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 6-M4W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7, L 26.3, E 14.5, D 8.3, t 1.0
JONR 4, 6-4W Brazed seam: Yes | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 4, 6-5W Brazed seam: Yes | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 27.8, E 14.5, D 8.3, t 1.0
JONR 4, 6-6W Brazed seam: Yes | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, L 36, E 14.5, D 8.3, t 1.0
JONR 6-K6W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, 13.5, 13.5, L 34.6, E 14.5, D 8.3, t 1.0
JONR 6-S8W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 12, 13.5, 13.5, L 36, E 14.5, D 8.3, t 1.0
JONR 4, 6-8W Brazed seam: Yes | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 15, L 36.3, E 14.5, D 8.3, t 1.0
JONR 4, 6-10W Brazed seam: Yes | KS certified: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 15, L 36.3, E 14.5, D 8.3, t 1.0
JONR 6-12W Brazed seam: Yes | Wire range: 14~12, 12~10 AWG / 4, 6 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 16, L 33.8, E 14.5, D 8.3, t 1.0
JONR 10-M5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 10.9, L 32.5, E 17, D 10.8, t 1.15
JONR 10-S5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 9.0, L 32.5, E 17, D 10.8, t 1.15
JONR 10-5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED | Pack qty: 500 | Dimensions (mm): B 12, L 32, E 17, D 10.8, t 1.15
JONR 10-6W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 12, L 32, E 17, D 10.8, t 1.15
JONR 10-8W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 8 | Color: RED | Pack qty: 500 | Dimensions (mm): B 15, L 38.5, E 17, D 10.8, t 1.15
JONR 10-10W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 10 | Color: RED | Pack qty: 500 | Dimensions (mm): B 15, L 38.5, E 17, D 10.8, t 1.15
JONR 10-12W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 12 | Color: RED | Pack qty: 500 | Dimensions (mm): B 20, L 44, E 17, D 10.8, t 1.15
JONR 16-S5W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 10.0, L 41, E 22, D 12.9, t 1.45
JONR 16-5W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12, L 41, E 22, D 12.9, t 1.45
JONR 16-6W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 6 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12, L 41, E 22, D 12.9, t 1.45
JONR 16-S8W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 13.5, L 41, E 22, D 12.9, t 1.45
JONR 16-8W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16, L 44.5, E 22, D 12.9, t 1.45
JONR 16-10W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 10 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16, L 44.5, E 22, D 12.9, t 1.45
JONR 16-12W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 12 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 22, L 50.5, E 22, D 12.9, t 1.45
JONR 25-S6W Brazed seam: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 6 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 12, L 46, E 25, D 16.2, t 1.7
JONR 25-6W Brazed seam: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 6 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 16.5, L 46.2, E 25, D 16.2, t 1.7
JONR 25-S8W Brazed seam: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 8 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 12, L 46, E 25, D 16.2, t 1.7
JONR 25-8W Brazed seam: Yes | KS certified: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 8 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 16.5, L 46.2, E 25, D 16.2, t 1.7
JONR 25-S10W Brazed seam: Yes | KS certified: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 10 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 16.5, L 46.2, E 25, D 16.2, t 1.7
JONR 25-10W Brazed seam: Yes | KS certified: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 10 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 17.5, L 51.5, E 25, D 16.2, t 1.7
JONR 25-12W Brazed seam: Yes | Wire range: 4 AWG / 25 mm² | Stud size (mm): 12 | Color: YELLOW | Pack qty: 300 | Dimensions (mm): B 22, L 55.5, E 25, D 16.2, t 1.7
JONR 35-S6W Brazed seam: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 200 | Dimensions (mm): B 16, L 48, E 28, D 18.1, t 1.8
JONR 35-6W Brazed seam: Yes | KS certified: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 200 | Dimensions (mm): B 22, L 54.3, E 28, D 18.1, t 1.8
JONR 35-S8W Brazed seam: Yes | KS certified: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 8 | Color: RED | Pack qty: 200 | Dimensions (mm): B 16, L 48, E 28, D 18.1, t 1.8
JONR 35-8W Brazed seam: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 8 | Color: RED | Pack qty: 200 | Dimensions (mm): B 22, L 54.3, E 28, D 18.1, t 1.8
JONR 35-S10W Brazed seam: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 10 | Color: RED | Pack qty: 200 | Dimensions (mm): B 16, L 48, E 28, D 18.1, t 1.8
JONR 35-10W Brazed seam: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 10 | Color: RED | Pack qty: 200 | Dimensions (mm): B 22, L 54.3, E 28, D 18.1, t 1.8
JONR 35-12W Brazed seam: Yes | Wire range: 2 AWG / 35 mm² | Stud size (mm): 12 | Color: RED | Pack qty: 200 | Dimensions (mm): B 22, L 54.3, E 28, D 18.1, t 1.8
