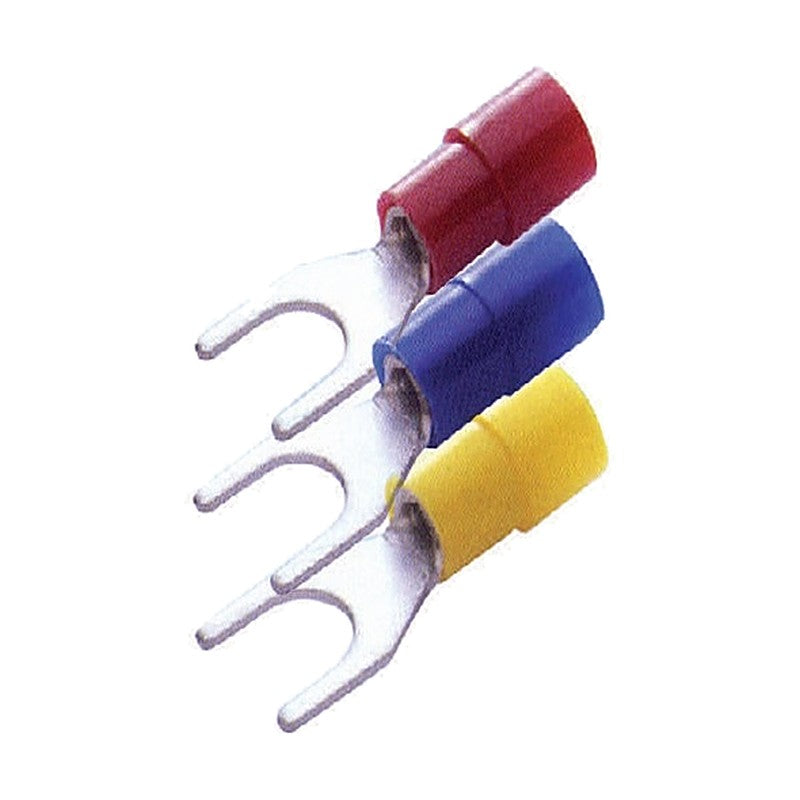

Jeoneo JONT Nylon-Insulated Fork Terminals, Electrolytic Copper
Jeoneo JONT Nylon-Insulated Fork Terminals, Electrolytic Copper
Nylon-insulated electrolytic copper fork terminals for 1.5 to 10 mm² wire, with or without brazed seam.
Key features
- Electrolytic copper, tin plated
- Nylon insulation
Specifications
| Material | Electrolytic copper |
|---|---|
| Surface | Tin plated |
| Insulation | Nylon |
| JONT 1.5-32 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 19.0, E 11.0, D 6.1, t 0.65 | |
| JONT 1.5-43 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 20.0, E 11.0, D 6.1, t 0.65 | |
| JONT 1.5-55 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 20.0, E 11.0, D 6.1, t 0.65 | |
| JONT 2.5-32 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.0, E 11.0, D 6.3, t 0.65 | |
| JONT 2.5-43 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 20.0, E 11.0, D 6.3, t 0.65 | |
| JONT 2.5-55 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21.0, E 11.0, D 6.3, t 0.65 | |
| JONT 4-44 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.0, E 14.5, D 7.8, t 0.75 | |
| JONT 4-55 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 25.0, E 14.5, D 7.8, t 0.75 | |
| JONT 6-44 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.4, L 26.5, E 14.5, D 8.3, t 0.8 | |
| JONT 6-55 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.2, L 26.5, E 14.5, D 8.3, t 0.8 | |
| JONT 10-6Y | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 11.5, L 33.5, E 17.0, D 10.8, t 0.9 |
Fork TerminalsJeoneo
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JONT Nylon-Insulated Fork Terminals, Electrolytic Copper
Available part numbers (11)
JONT 1.5-32, JONT 1.5-43, JONT 1.5-55, JONT 2.5-32, JONT 2.5-43, JONT 2.5-55, JONT 4-44, JONT 4-55, JONT 6-44, JONT 6-55 + 1 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Fork Terminals
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JONT 1.5-32 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 5.9, L 19.0, E 11.0, D 6.1, t 0.65 | ||
| JONT 1.5-43 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 20.0, E 11.0, D 6.1, t 0.65 | ||
| JONT 1.5-55 | Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 20.0, E 11.0, D 6.1, t 0.65 | ||
| JONT 2.5-32 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.0, E 11.0, D 6.3, t 0.65 | ||
| JONT 2.5-43 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 7.1, L 20.0, E 11.0, D 6.3, t 0.65 | ||
| JONT 2.5-55 | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21.0, E 11.0, D 6.3, t 0.65 | ||
| JONT 4-44 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.0, E 14.5, D 7.8, t 0.75 | ||
| JONT 4-55 | Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 25.0, E 14.5, D 7.8, t 0.75 | ||
| JONT 6-44 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 8.4, L 26.5, E 14.5, D 8.3, t 0.8 | ||
| JONT 6-55 | Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW | Pack qty: 1,000 | Dimensions (mm): B 9.2, L 26.5, E 14.5, D 8.3, t 0.8 | ||
| JONT 10-6Y | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED | Pack qty: 500 | Dimensions (mm): B 11.5, L 33.5, E 17.0, D 10.8, t 0.9 |
