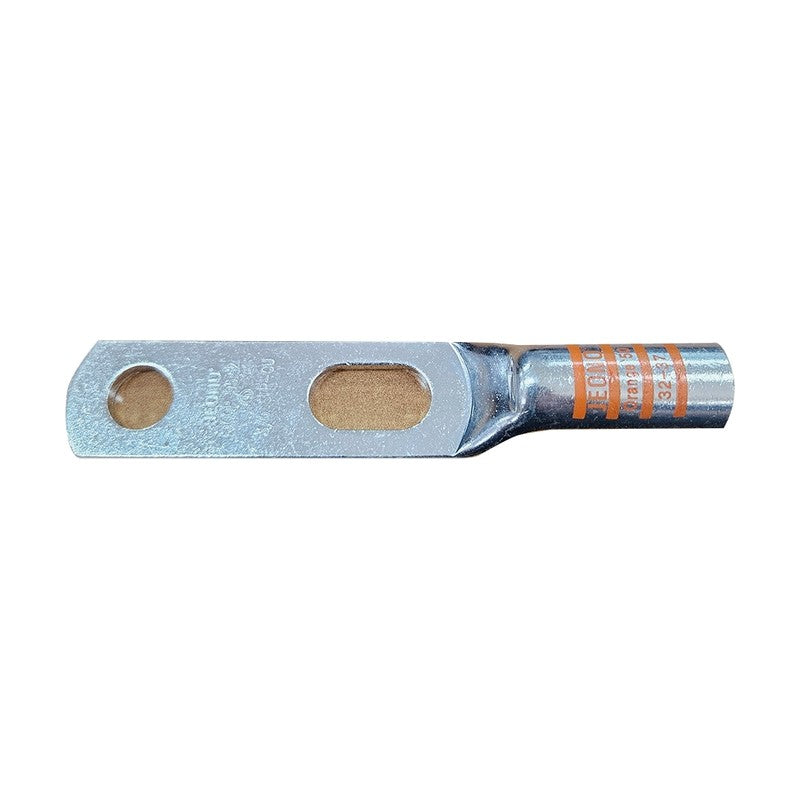

Jeoneo JOOH Special Two-Hole Tubular Cable Lugs with Oval Hole
Jeoneo JOOH Special Two-Hole Tubular Cable Lugs with Oval Hole
Special two-hole round-compressed tubular copper cable lugs (Type CP(OH)) with one oval hole for 50 to 300 mm² conductors; suffix -1/-2 refers to figure 1/2.
Key features
- Oval hole allows adjustment of hole spacing (45-61 mm)
- With inspection hole
- For IEC 60228 class 2 conductors
- UL listed 486A-486B, up to 35 kV
Specifications
| Material | Electrolytic copper (TPC) |
|---|---|
| Surface | Tin plated |
| Conductor class | IEC 60228 class 2 |
| Holes | 2 (one oval) |
| JOOH 50-1 | Figure: 1 | Wire range (AWG / mm²): 1 50 | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18.0, N 7.5, N1 6.0, d2 10.5, d 9.5, D 12.0, E 30.0, L 108.0, S 45 - 51 | |
| JOOH 50-2 | Figure: 2 | Wire range (AWG / mm²): 1 50 | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18.0, N 6.0, N1 6.0, d2 10.5, d 9.5, D 12.0, E 30.0, L 113.0, S 50 - 61 | |
| JOOH 70-1 | Figure: 1 | Wire range (AWG / mm²): 2/0 70 | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22.0, N 8.5, N1 6.5, d2 13.0, d 11.3, D 14.6, E 32.0, L 115.0, S 45 - 51 | |
| JOOH 70-2 | Figure: 2 | Wire range (AWG / mm²): 2/0 70 | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22.0, N 6.0, N1 4.5, d2 13.0, d 11.3, D 14.6, E 32.0, L 121.0, S 50 - 61 | |
| JOOH 95-1 | Figure: 1 | Wire range (AWG / mm²): 3/0 95 | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25.0, N 8.5, N1 9.0, d2 13.0, d 13.5, D 17.0, E 38.0, L 125.0, S 45 - 51 | |
| JOOH 95-2 | Figure: 2 | Wire range (AWG / mm²): 3/0 95 | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25.0, N 7.0, N1 6.5, d2 13.0, d 13.5, D 17.0, E 38.0, L 131.0, S 50 - 61 | |
| JOOH 120-1 | Figure: 1 | Wire range (AWG / mm²): 250Kcmil 120 | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28.0, N 8.5, N1 8.5, d2 13.0, d 15.2, D 19.0, E 43.0, L 130.0, S 45 - 51 | |
| JOOH 120-2 | Figure: 2 | Wire range (AWG / mm²): 250Kcmil 120 | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28.0, N 7.0, N1 5.5, d2 13.0, d 15.2, D 19.0, E 43.0, L 136.0, S 50 - 61 | |
| JOOH 150-1 | Figure: 1 | Wire range (AWG / mm²): 300Kcmil 150 | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31.0, N 8.5, N1 9.0, d2 13.0, d 17.0, D 21.0, E 46.0, L 135.0, S 45 - 51 | |
| JOOH 150-2 | Figure: 2 | Wire range (AWG / mm²): 300Kcmil 150 | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31.0, N 8.0, N1 5.0, d2 13.0, d 17.0, D 21.0, E 46.0, L 141.0, S 50 - 61 | |
| JOOH 185-1 | Figure: 1 | Wire range (AWG / mm²): 350Kcmil 185 | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35.0, N 8.5, N1 11.0, d2 13.0, d 19.0, D 23.5, E 48.0, L 142.0, S 45 - 51 | |
| JOOH 185-2 | Figure: 2 | Wire range (AWG / mm²): 350Kcmil 185 | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35.0, N 9.0, N1 7.0, d2 13.0, d 19.0, D 23.5, E 48.0, L 148.0, S 50 - 61 | |
| JOOH 240-1 | Figure: 1 | Wire range (AWG / mm²): 500Kcmil 240 | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40.0, N 8.5, N1 9.5, d2 13.0, d 22.0, D 27.4, E 59.0, L 149.0, S 45 - 51 | |
| JOOH 240-2 | Figure: 2 | Wire range (AWG / mm²): 500Kcmil 240 | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40.0, N 9.0, N1 4.0, d2 13.0, d 22.0, D 27.4, E 59.0, L 155.0, S 50 - 61 | |
| JOOH 300-1 | Figure: 1 | Wire range (AWG / mm²): 600Kcmil 300 | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45.0, N 8.5, N1 13.5, d2 13.0, d 24.0, D 30.5, E 68.0, L 163.0, S 45 - 51 | |
| JOOH 300-2 | Figure: 2 | Wire range (AWG / mm²): 600Kcmil 300 | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45.0, N 9.0, N1 10.0, d2 13.0, d 24.0, D 30.5, E 68.0, L 169.0, S 50 - 61 |
Cable LugsJeoneo
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOOH Special Two-Hole Tubular Cable Lugs with Oval Hole
Available part numbers (16)
JOOH 50-1, JOOH 50-2, JOOH 70-1, JOOH 70-2, JOOH 95-1, JOOH 95-2, JOOH 120-1, JOOH 120-2, JOOH 150-1, JOOH 150-2 + 6 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Cable Lugs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOOH 50-1 | Figure: 1 | Wire range (AWG / mm²): 1 50 | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18.0, N 7.5, N1 6.0, d2 10.5, d 9.5, D 12.0, E 30.0, L 108.0, S 45 - 51 | ||
| JOOH 50-2 | Figure: 2 | Wire range (AWG / mm²): 1 50 | Stud size: M10 | Color code / die: Green37 | Pack qty: 100 | Dimensions (mm): W 18.0, N 6.0, N1 6.0, d2 10.5, d 9.5, D 12.0, E 30.0, L 113.0, S 50 - 61 | ||
| JOOH 70-1 | Figure: 1 | Wire range (AWG / mm²): 2/0 70 | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22.0, N 8.5, N1 6.5, d2 13.0, d 11.3, D 14.6, E 32.0, L 115.0, S 45 - 51 | ||
| JOOH 70-2 | Figure: 2 | Wire range (AWG / mm²): 2/0 70 | Stud size: M12 | Color code / die: Black45 | Pack qty: 50 | Dimensions (mm): W 22.0, N 6.0, N1 4.5, d2 13.0, d 11.3, D 14.6, E 32.0, L 121.0, S 50 - 61 | ||
| JOOH 95-1 | Figure: 1 | Wire range (AWG / mm²): 3/0 95 | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25.0, N 8.5, N1 9.0, d2 13.0, d 13.5, D 17.0, E 38.0, L 125.0, S 45 - 51 | ||
| JOOH 95-2 | Figure: 2 | Wire range (AWG / mm²): 3/0 95 | Stud size: M12 | Color code / die: Orange50 | Pack qty: 50 | Dimensions (mm): W 25.0, N 7.0, N1 6.5, d2 13.0, d 13.5, D 17.0, E 38.0, L 131.0, S 50 - 61 | ||
| JOOH 120-1 | Figure: 1 | Wire range (AWG / mm²): 250Kcmil 120 | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28.0, N 8.5, N1 8.5, d2 13.0, d 15.2, D 19.0, E 43.0, L 130.0, S 45 - 51 | ||
| JOOH 120-2 | Figure: 2 | Wire range (AWG / mm²): 250Kcmil 120 | Stud size: M12 | Color code / die: Purple54 | Pack qty: 50 | Dimensions (mm): W 28.0, N 7.0, N1 5.5, d2 13.0, d 15.2, D 19.0, E 43.0, L 136.0, S 50 - 61 | ||
| JOOH 150-1 | Figure: 1 | Wire range (AWG / mm²): 300Kcmil 150 | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31.0, N 8.5, N1 9.0, d2 13.0, d 17.0, D 21.0, E 46.0, L 135.0, S 45 - 51 | ||
| JOOH 150-2 | Figure: 2 | Wire range (AWG / mm²): 300Kcmil 150 | Stud size: M12 | Color code / die: Yellow62 | Pack qty: 30 | Dimensions (mm): W 31.0, N 8.0, N1 5.0, d2 13.0, d 17.0, D 21.0, E 46.0, L 141.0, S 50 - 61 | ||
| JOOH 185-1 | Figure: 1 | Wire range (AWG / mm²): 350Kcmil 185 | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35.0, N 8.5, N1 11.0, d2 13.0, d 19.0, D 23.5, E 48.0, L 142.0, S 45 - 51 | ||
| JOOH 185-2 | Figure: 2 | Wire range (AWG / mm²): 350Kcmil 185 | Stud size: M12 | Color code / die: Red71 | Pack qty: 25 | Dimensions (mm): W 35.0, N 9.0, N1 7.0, d2 13.0, d 19.0, D 23.5, E 48.0, L 148.0, S 50 - 61 | ||
| JOOH 240-1 | Figure: 1 | Wire range (AWG / mm²): 500Kcmil 240 | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40.0, N 8.5, N1 9.5, d2 13.0, d 22.0, D 27.4, E 59.0, L 149.0, S 45 - 51 | ||
| JOOH 240-2 | Figure: 2 | Wire range (AWG / mm²): 500Kcmil 240 | Stud size: M12 | Color code / die: Brown87 | Pack qty: 15 | Dimensions (mm): W 40.0, N 9.0, N1 4.0, d2 13.0, d 22.0, D 27.4, E 59.0, L 155.0, S 50 - 61 | ||
| JOOH 300-1 | Figure: 1 | Wire range (AWG / mm²): 600Kcmil 300 | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45.0, N 8.5, N1 13.5, d2 13.0, d 24.0, D 30.5, E 68.0, L 163.0, S 45 - 51 | ||
| JOOH 300-2 | Figure: 2 | Wire range (AWG / mm²): 600Kcmil 300 | Stud size: M12 | Color code / die: Green94 | Pack qty: 10 | Dimensions (mm): W 45.0, N 9.0, N1 10.0, d2 13.0, d 24.0, D 30.5, E 68.0, L 169.0, S 50 - 61 |
