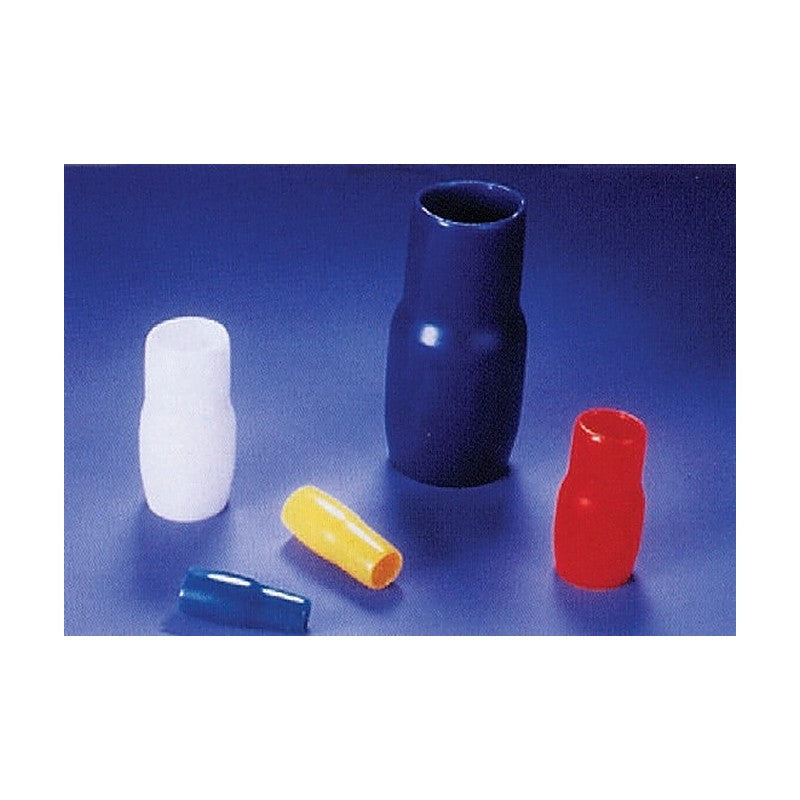

Jeoneo JOPC Soft PVC Terminal Caps
Jeoneo JOPC Soft PVC Terminal Caps
Soft PVC insulating caps for crimp terminals and cable lugs from 1.5 to 500 mm², in standard colors.
Key features
- Maximum service temperature 80 °C
- Colors: red, white, blue, yellow, black, green, gray, brown
Specifications
| Material | Soft PVC |
|---|---|
| Max. service temperature | 80 °C |
| Colors | Red, white, blue, yellow, black, green, gray, brown |
| JOPC-1.5 | Wire range (mm²): 1.5 | Dimensions (mm): d1 3.2, d2 3.2, L 14, T 0.8 | Pack qty: 1,000 | |
| JOPC-2.5 | Wire range (mm²): 2.5 | Dimensions (mm): d1 3.5, d2 3.5, L 15, T 0.8 | Pack qty: 1,000 | |
| JOPC-4 | Wire range (mm²): 4 | Dimensions (mm): d1 4.5, d2 4.5, L 18, T 0.8 | Pack qty: 1,000 | |
| JOPC-6 | Wire range (mm²): 6 | Dimensions (mm): d1 5.5, d2 5.5, L 19, T 0.8 | Pack qty: 1,000 | |
| JOPC-10 | Wire range (mm²): 10 | Dimensions (mm): d1 6.5, d2 6.5, L 20, T 0.8 | Pack qty: 500 | |
| JOPC-16 | Wire range (mm²): 16 | Dimensions (mm): d1 8.0, d2 8.5, L 23, T 0.8 | Pack qty: 500 | |
| JOPC-25 | Wire range (mm²): 25 | Dimensions (mm): d1 10.0, d2 10.0, L 28, T 0.8 | Pack qty: 500 | |
| JOPC-35 | Wire range (mm²): 35 | Dimensions (mm): d1 11.5, d2 11.5, L 33, T 1.5 | Pack qty: 400 | |
| JOPC-50 | Wire range (mm²): 50 | Dimensions (mm): d1 16.0, d2 14.0, L 40, T 1.2 | Pack qty: 300 | |
| JOPC-70 | Wire range (mm²): 70 | Dimensions (mm): d1 17, d2 16.5, L 43, T 1.2 | Pack qty: 100 | |
| JOPC-95 | Wire range (mm²): 95 | Dimensions (mm): d1 20, d2 18.0, L 50, T 1.2 | Pack qty: 100 | |
| JOPC-120 | Wire range (mm²): 120 | Dimensions (mm): d1 22, d2 20.0, L 58, T 1.2 | Pack qty: 50 | |
| JOPC-150 | Wire range (mm²): 150 | Dimensions (mm): d1 25, d2 22.0, L 61, T 1.2 | Pack qty: 50 | |
| JOPC-185 | Wire range (mm²): 185 | Dimensions (mm): d1 27, d2 25.0, L 66, T 1.2 | Pack qty: 50 | |
| JOPC-240 | Wire range (mm²): 240 | Dimensions (mm): d1 28, d2 26.0, L 70, T 1.2 | Pack qty: 50 | |
| JOPC-300 | Wire range (mm²): 300 | Dimensions (mm): d1 32, d2 30.0, L 77, T 1.5 | Pack qty: 50 | |
| JOPC-400 | Wire range (mm²): 400 | Dimensions (mm): d1 42, d2 42.0, L 60, T 1.5 | Pack qty: 50 | |
| JOPC-500 | Wire range (mm²): 500 | Dimensions (mm): d1 46, d2 46.0, L 100, T 1.5 | Pack qty: 50 |
Terminal InsulatorsJeoneo
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOPC Soft PVC Terminal Caps
Available part numbers (18)
JOPC-1.5, JOPC-2.5, JOPC-4, JOPC-6, JOPC-10, JOPC-16, JOPC-25, JOPC-35, JOPC-50, JOPC-70 + 8 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Terminal Insulators
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOPC-1.5 | Wire range (mm²): 1.5 | Dimensions (mm): d1 3.2, d2 3.2, L 14, T 0.8 | Pack qty: 1,000 | ||
| JOPC-2.5 | Wire range (mm²): 2.5 | Dimensions (mm): d1 3.5, d2 3.5, L 15, T 0.8 | Pack qty: 1,000 | ||
| JOPC-4 | Wire range (mm²): 4 | Dimensions (mm): d1 4.5, d2 4.5, L 18, T 0.8 | Pack qty: 1,000 | ||
| JOPC-6 | Wire range (mm²): 6 | Dimensions (mm): d1 5.5, d2 5.5, L 19, T 0.8 | Pack qty: 1,000 | ||
| JOPC-10 | Wire range (mm²): 10 | Dimensions (mm): d1 6.5, d2 6.5, L 20, T 0.8 | Pack qty: 500 | ||
| JOPC-16 | Wire range (mm²): 16 | Dimensions (mm): d1 8.0, d2 8.5, L 23, T 0.8 | Pack qty: 500 | ||
| JOPC-25 | Wire range (mm²): 25 | Dimensions (mm): d1 10.0, d2 10.0, L 28, T 0.8 | Pack qty: 500 | ||
| JOPC-35 | Wire range (mm²): 35 | Dimensions (mm): d1 11.5, d2 11.5, L 33, T 1.5 | Pack qty: 400 | ||
| JOPC-50 | Wire range (mm²): 50 | Dimensions (mm): d1 16.0, d2 14.0, L 40, T 1.2 | Pack qty: 300 | ||
| JOPC-70 | Wire range (mm²): 70 | Dimensions (mm): d1 17, d2 16.5, L 43, T 1.2 | Pack qty: 100 | ||
| JOPC-95 | Wire range (mm²): 95 | Dimensions (mm): d1 20, d2 18.0, L 50, T 1.2 | Pack qty: 100 | ||
| JOPC-120 | Wire range (mm²): 120 | Dimensions (mm): d1 22, d2 20.0, L 58, T 1.2 | Pack qty: 50 | ||
| JOPC-150 | Wire range (mm²): 150 | Dimensions (mm): d1 25, d2 22.0, L 61, T 1.2 | Pack qty: 50 | ||
| JOPC-185 | Wire range (mm²): 185 | Dimensions (mm): d1 27, d2 25.0, L 66, T 1.2 | Pack qty: 50 | ||
| JOPC-240 | Wire range (mm²): 240 | Dimensions (mm): d1 28, d2 26.0, L 70, T 1.2 | Pack qty: 50 | ||
| JOPC-300 | Wire range (mm²): 300 | Dimensions (mm): d1 32, d2 30.0, L 77, T 1.5 | Pack qty: 50 | ||
| JOPC-400 | Wire range (mm²): 400 | Dimensions (mm): d1 42, d2 42.0, L 60, T 1.5 | Pack qty: 50 | ||
| JOPC-500 | Wire range (mm²): 500 | Dimensions (mm): d1 46, d2 46.0, L 100, T 1.5 | Pack qty: 50 |
Need a different model, or a part not listed here? Send us your parts list →
