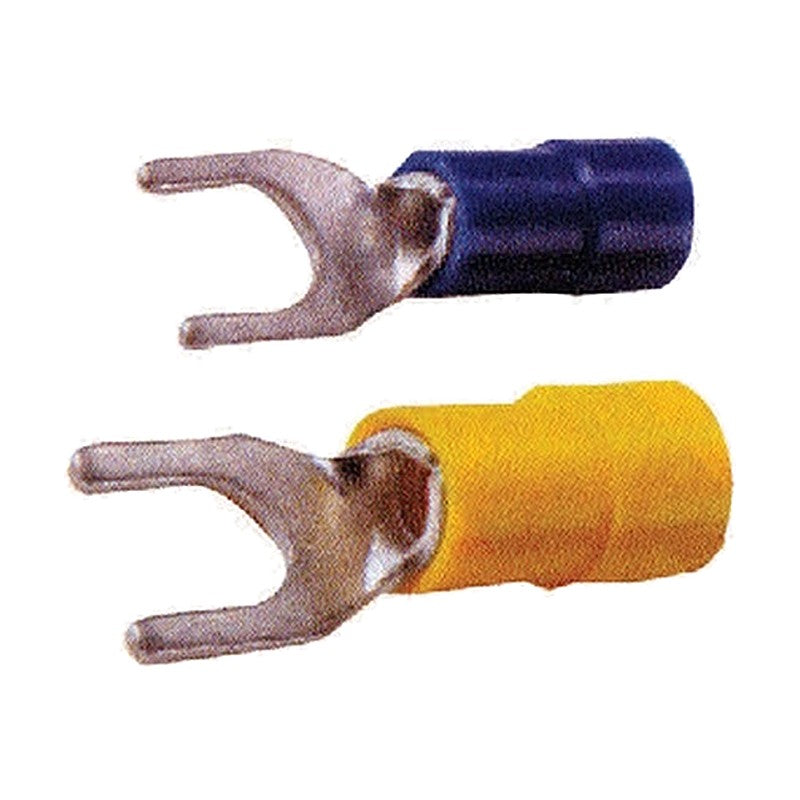

Jeoneo JOPF PVC-Insulated Fork Terminals

Jeoneo JOPF PVC-Insulated Fork Terminals

PVC-insulated copper fork terminals (Type RBV(F)) for 0.5 to 10 mm² wire, with or without brazed seam (W suffix = brazed seam).

Key features

  • Oxygen-free copper, tin plated
  • PVC insulation rated 105 °C, UL94 V-0

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Jeoneo JOPF PVC-Insulated Fork Terminals
JOPF 0513 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 10, D 5.4, t 0.65
JOPF 0514 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 10, D 5.4, t 0.65
JOPF 0515 Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 10, D 5.4, t 0.65
JOPF 15253 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 10, D 6.3, t 0.8
JOPF 15254 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 10, D 6.3, t 0.8
JOPF 15255 Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 10, D 6.3, t 0.8
JOPF 464 Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14, D 8.3, t 0.9
JOPF 465 Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14, D 8.3, t 0.9
JOPF 0513W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 10, D 5.4, t 0.65
JOPF 0514W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 10, D 5.4, t 0.65
JOPF 0515W Brazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 10, D 5.4, t 0.65
JOPF 15253W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 10, D 6.3, t 0.8
JOPF 15254W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 10, D 6.3, t 0.8
JOPF 15255W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 10, D 6.3, t 0.8
JOPF 464W Brazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14, D 8.3, t 0.9
JOPF 465W Brazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14, D 8.3, t 0.9
JOPF 105W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED, BROWN, GRAY | Pack qty: 500 | Dimensions (mm): B 10, L 32, E 15.6, D 11.0, t 1.0
JOPF 106W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED, BROWN, GRAY | Pack qty: 500 | Dimensions (mm): B 11, L 33, E 15.6, D 11.0, t 1.0
Fork TerminalsJeoneo
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOPF PVC-Insulated Fork Terminals

Brand Jeoneo·Fork Terminals

Available part numbers (18)

JOPF 0513, JOPF 0514, JOPF 0515, JOPF 15253, JOPF 15254, JOPF 15255, JOPF 464, JOPF 465, JOPF 0513W, JOPF 0514W + 8 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOPF PVC-Insulated Fork Terminals
0 selected
RFQ List (0)
Product codeSpec
JOPF 0513Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 10, D 5.4, t 0.65
JOPF 0514Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 10, D 5.4, t 0.65
JOPF 0515Brazed seam: No | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 10, D 5.4, t 0.65
JOPF 15253Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 10, D 6.3, t 0.8
JOPF 15254Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 10, D 6.3, t 0.8
JOPF 15255Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 10, D 6.3, t 0.8
JOPF 464Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14, D 8.3, t 0.9
JOPF 465Brazed seam: No | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14, D 8.3, t 0.9
JOPF 0513WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 20.5, E 10, D 5.4, t 0.65
JOPF 0514WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 22, E 10, D 5.4, t 0.65
JOPF 0515WBrazed seam: Yes | Wire range: 22~16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 23.5, E 10, D 5.4, t 0.65
JOPF 15253WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 21, E 10, D 6.3, t 0.8
JOPF 15254WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.8, L 21.5, E 10, D 6.3, t 0.8
JOPF 15255WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 24.5, E 10, D 6.3, t 0.8
JOPF 464WBrazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 25.5, E 14, D 8.3, t 0.9
JOPF 465WBrazed seam: Yes | Wire range: 14~10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED,BLUE, WHITE, BLACK, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 10, L 26.5, E 14, D 8.3, t 0.9
JOPF 105WBrazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED, BROWN, GRAY | Pack qty: 500 | Dimensions (mm): B 10, L 32, E 15.6, D 11.0, t 1.0
JOPF 106WBrazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED, BROWN, GRAY | Pack qty: 500 | Dimensions (mm): B 11, L 33, E 15.6, D 11.0, t 1.0
