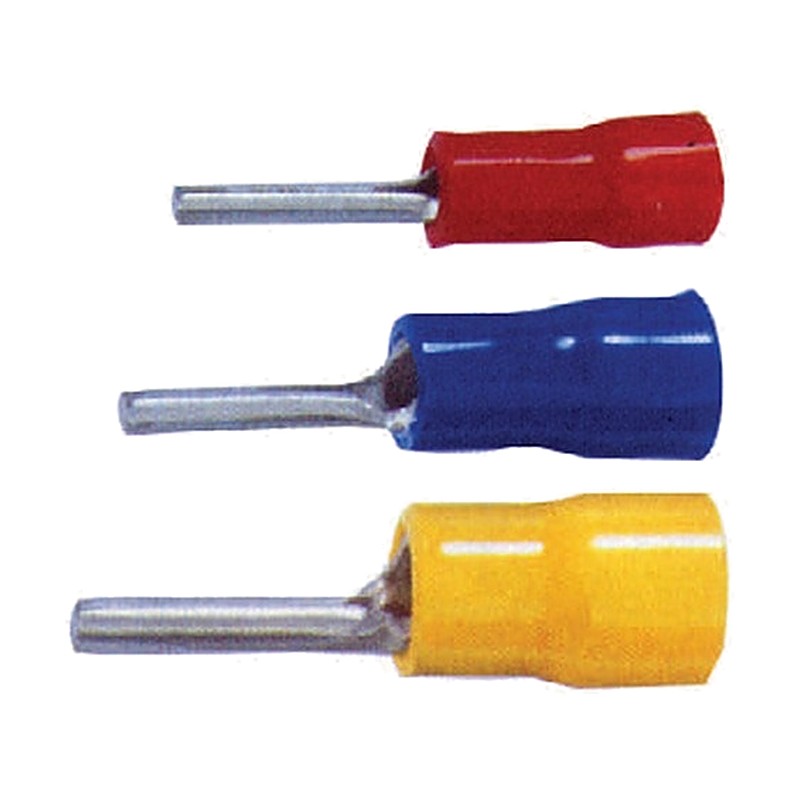

Jeoneo JOPP PVC-Insulated Pin Terminals

Jeoneo JOPP PVC-Insulated Pin Terminals

PVC-insulated copper pin terminals for 0.5 to 6 mm² wire; U suffix = without brazed seam, W suffix = brazed seam.

Key features

  • Oxygen-free copper, tin plated
  • PVC insulation rated 105 °C, UL94 V-0

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Color RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY
Pack qty 1,000
Jeoneo JOPP PVC-Insulated Pin Terminals
JOPP 15U Brazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 252U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253U Brazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4U Brazed seam: No | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6U Brazed seam: No | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
JOPP 15W Brazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 252W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253W Brazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4W Brazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6W Brazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
Pin TerminalsJeoneo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOPP PVC-Insulated Pin Terminals

Brand Jeoneo·Pin Terminals

Available part numbers (10)

JOPP 15U, JOPP 252U, JOPP 253U, JOPP 4U, JOPP 6U, JOPP 15W, JOPP 252W, JOPP 253W, JOPP 4W, JOPP 6W

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOPP PVC-Insulated Pin Terminals
0 selected
RFQ List (0)
Product codeSpec
JOPP 15UBrazed seam: No | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 252UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253UBrazed seam: No | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4UBrazed seam: No | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6UBrazed seam: No | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
JOPP 15WBrazed seam: Yes | Wire range: 20~16 AWG / 1.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 5.9
JOPP 252WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 24.0, E 10.0, D 6.3
JOPP 253WBrazed seam: Yes | Wire range: 16~14 AWG / 2.5 mm² | Dimensions (mm): B 2.0, L 27.0, E 10.0, D 6.3
JOPP 4WBrazed seam: Yes | Wire range: 14~12 AWG / 4 mm² | Dimensions (mm): B 2.2, L 28.0, E 14.0, D 7.5
JOPP 6WBrazed seam: Yes | Wire range: 12~10 AWG / 6 mm² | Dimensions (mm): B 2.5, L 28.0, E 14.0, D 8.3
