Jeoneo JOPR PVC-Insulated Ring Terminals

Jeoneo JOPR PVC-Insulated Ring Terminals

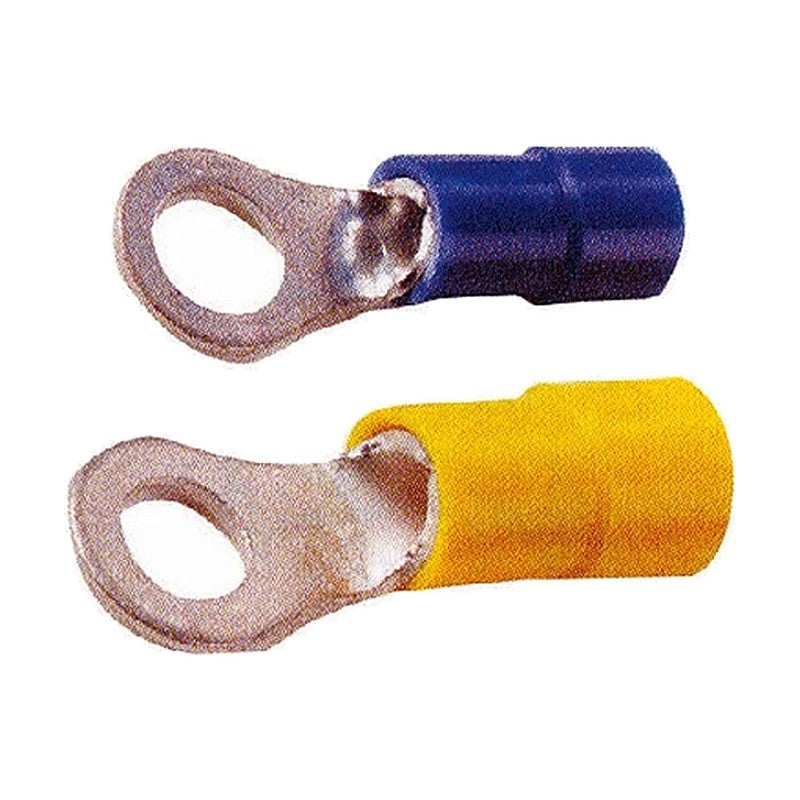

PVC-insulated copper ring terminals (Type RBV(R)) for 0.5 to 16 mm² wire, available with or without brazed seam (W suffix = brazed seam).

Key features

  • Oxygen-free copper, tin plated
  • PVC insulation rated 105 °C, UL94 V-0
  • Color-coded insulation by wire size

Specifications

Material Oxygen-free copper
Surface Tin plated
Insulation PVC
Insulation temperature rating 105 °C
Flammability UL94 V-0
Jeoneo JOPR PVC-Insulated Ring Terminals
JOPR 1.5-3 Brazed seam: No | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 17.5, E 10, D 6.1, t 0.7
JOPR 1.5-S3.5 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 17.5, E 10, D 6.1, t 0.7
JOPR 1.5-3.5 Brazed seam: No | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-K4 Brazed seam: No | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-M4 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-4 Brazed seam: No | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-5 Brazed seam: No | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-6 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 25.8, E 10, D 6.1, t 0.7
JOPR 1.5-8 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 26.2, E 10, D 6.1, t 0.7
JOPR 1.5-10 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 27.5, E 10, D 6.1, t 0.7
JOPR 1.5-12 Brazed seam: No | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 17, L 31, E 10, D 6.1, t 0.7
JOPR 2.5-M3 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6, L 21, E 10, D 6.6, t 0.8
JOPR 2.5-3.5 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-K3.5 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 22.7, E 10, D 6.6, t 0.8
JOPR 2.5-M4 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-4 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.5, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-K4 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 23.9, E 10, D 6.6, t 0.8
JOPR 2.5-S5 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 23.9, E 10, D 6.6, t 0.8
JOPR 2.5-5 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 23.5, E 10, D 6.6, t 0.8
JOPR 2.5-M6 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 23.5, E 10, D 6.6, t 0.8
JOPR 2.5-6 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 26.5, E 10, D 6.6, t 0.8
JOPR 2.5-8 Brazed seam: No | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 8 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 26.5, E 10, D 6.6, t 0.8
JOPR 2.5-10 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 10 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 29.5, E 10, D 6.6, t 0.8
JOPR 2.5-12 Brazed seam: No | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 12 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 17, L 30.8, E 10, D 6.6, t 0.8
JOPR 4-M4 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 25, E 14, D 7.5, t 0.9
JOPR 4-4 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 25, E 14, D 7.5, t 0.9
JOPR 4-5 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 25, E 14, D 7.5, t 0.9
JOPR 4-6 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30, E 14, D 7.5, t 0.9
JOPR 4-8 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30, E 14, D 7.5, t 0.9
JOPR 4-10 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 10 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 31.5, E 14, D 7.5, t 0.9
JOPR 4-12 Brazed seam: No | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 12 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 16, L 32.5, E 14, D 7.5, t 0.9
JOPR 1.5-3W Brazed seam: Yes | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 17.5, E 10, D 6.1, t 0.7
JOPR 1.5-S3.5W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.5, L 17.5, E 10, D 6.1, t 0.7
JOPR 1.5-3.5W Brazed seam: Yes | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 3.5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-K4W Brazed seam: Yes | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-M4W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-4W Brazed seam: Yes | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 4 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-5W Brazed seam: Yes | KS certified: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 5 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 21, E 10, D 6.1, t 0.7
JOPR 1.5-6W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 6 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 25.8, E 10, D 6.1, t 0.7
JOPR 1.5-8W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 8 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 26.2, E 10, D 6.1, t 0.7
JOPR 1.5-10W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 10 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 27.5, E 10, D 6.1, t 0.7
JOPR 1.5-12W Brazed seam: Yes | Wire range: 22-16 AWG / 1.5 mm² | Stud size (mm): 12 | Color: RED, BLUE, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 17, L 31, E 10, D 6.1, t 0.7
JOPR 2.5-M3W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6, L 21, E 10, D 6.6, t 0.8
JOPR 2.5-3.5W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-K3.5W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 3.5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 22.7, E 10, D 6.6, t 0.8
JOPR 2.5-M4W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.6, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-4W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.5, L 22, E 10, D 6.6, t 0.8
JOPR 2.5-K4W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 4 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 23.9, E 10, D 6.6, t 0.8
JOPR 2.5-S5W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 23.9, E 10, D 6.6, t 0.8
JOPR 2.5-5W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 5 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 23.5, E 10, D 6.6, t 0.8
JOPR 2.5-M6W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 23.5, E 10, D 6.6, t 0.8
JOPR 2.5-6W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 6 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 26.5, E 10, D 6.6, t 0.8
JOPR 2.5-8W Brazed seam: Yes | KS certified: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 8 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 26.5, E 10, D 6.6, t 0.8
JOPR 2.5-10W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 10 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 29.5, E 10, D 6.6, t 0.8
JOPR 2.5-12W Brazed seam: Yes | Wire range: 16-14 AWG / 2.5 mm² | Stud size (mm): 12 | Color: BLUE, RED, YELLOW, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 17, L 30.8, E 10, D 6.6, t 0.8
JOPR 4-M4W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 25, E 14, D 7.5, t 0.9
JOPR 4-4W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 25, E 14, D 7.5, t 0.9
JOPR 4-5W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 25, E 14, D 7.5, t 0.9
JOPR 4-6W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30, E 14, D 7.5, t 0.9
JOPR 4-8W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 30, E 14, D 7.5, t 0.9
JOPR 4-10W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 10 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 14, L 31.5, E 14, D 7.5, t 0.9
JOPR 4-12W Brazed seam: Yes | Wire range: 14-12 AWG / 4 mm² | Stud size (mm): 12 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 16, L 32.5, E 14, D 7.5, t 0.9
JOPR 6-S3.5 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 26, E 14, D 8.3, t 1.0
JOPR 6-3.5 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 6-M4 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7, L 25, E 14, D 8.3, t 1.0
JOPR 4, 6-4 Brazed seam: No | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 4, 6-5 Brazed seam: No | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 4, 6-6 Brazed seam: No | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 34.7, E 14, D 8.3, t 1.0
JOPR 6-K6 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 13.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 6-S8 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 13.5, L 34, E 14, D 8.3, t 1.0
JOPR 4, 6-8 Brazed seam: No | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 15, L 37, E 14, D 8.3, t 1.0
JOPR 4, 6-10 Brazed seam: No | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 10 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 15, L 37, E 14, D 8.3, t 1.0
JOPR 6-12 Brazed seam: No | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 12 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 16, L 32.5, E 14, D 8.3, t 1.0
JOPR 6-S3.5W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7.9, L 26, E 14, D 8.3, t 1.0
JOPR 6-3.5W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 3.5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 6-M4W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 7, L 25, E 14, D 8.3, t 1.0
JOPR 4, 6-4W Brazed seam: Yes | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 4 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 4, 6-5W Brazed seam: Yes | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 5 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 9.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 4, 6-6W Brazed seam: Yes | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 12, L 34.7, E 14, D 8.3, t 1.0
JOPR 6-K6W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 6 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 13.5, L 26.5, E 14, D 8.3, t 1.0
JOPR 6-S8W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 13.5, L 34, E 14, D 8.3, t 1.0
JOPR 4, 6-8W Brazed seam: Yes | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 8 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 15, L 37, E 14, D 8.3, t 1.0
JOPR 4, 6-10W Brazed seam: Yes | KS certified: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 10 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 15, L 37, E 14, D 8.3, t 1.0
JOPR 6-12W Brazed seam: Yes | Wire range: 14-12, 12-10 AWG / 4, 6 mm² | Stud size (mm): 12 | Color: YELLOW, RED, BLUE, WHITE, BLACK, GREEN, BROWN, GRAY | Pack qty: 1,000 | Dimensions (mm): B 16, L 32.5, E 14, D 8.3, t 1.0
JOPR 10-M5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 10.9, L 32.5, E 16, D 11.0, t 1.15
JOPR 10-S5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 9.0, L 32.5, E 16, D 11.0, t 1.15
JOPR 10-5W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 12, L 32, E 16, D 11.0, t 1.15
JOPR 10-6W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 12, L 32, E 16, D 11.0, t 1.15
JOPR 10-8W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 8 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 15, L 38.5, E 16, D 11.0, t 1.15
JOPR 10-10W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 10 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 15, L 38.5, E 16, D 11.0, t 1.15
JOPR 10-12W Brazed seam: Yes | Wire range: 8 AWG / 10 mm² | Stud size (mm): 12 | Color: RED, BLUE, WHITE, BLACK | Pack qty: 500 | Dimensions (mm): B 20, L 44, E 16, D 11.0, t 1.15
JOPR 16-S5W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 10, L 41, E 21, D 12.9, t 1.45
JOPR 16-5W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12, L 41, E 21, D 12.9, t 1.45
JOPR 16-6W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 6 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 12, L 41, E 21, D 12.9, t 1.45
JOPR 16-S8W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 13.5, L 41, E 21, D 12.9, t 1.45
JOPR 16-8W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16, L 44.5, E 21, D 12.9, t 1.45
JOPR 16-10W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 10 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 16, L 44.5, E 21, D 12.9, t 1.45
JOPR 16-12W Brazed seam: Yes | Wire range: 6 AWG / 16 mm² | Stud size (mm): 12 | Color: BLUE | Pack qty: 300 | Dimensions (mm): B 22, L 50.5, E 21, D 12.9, t 1.45
