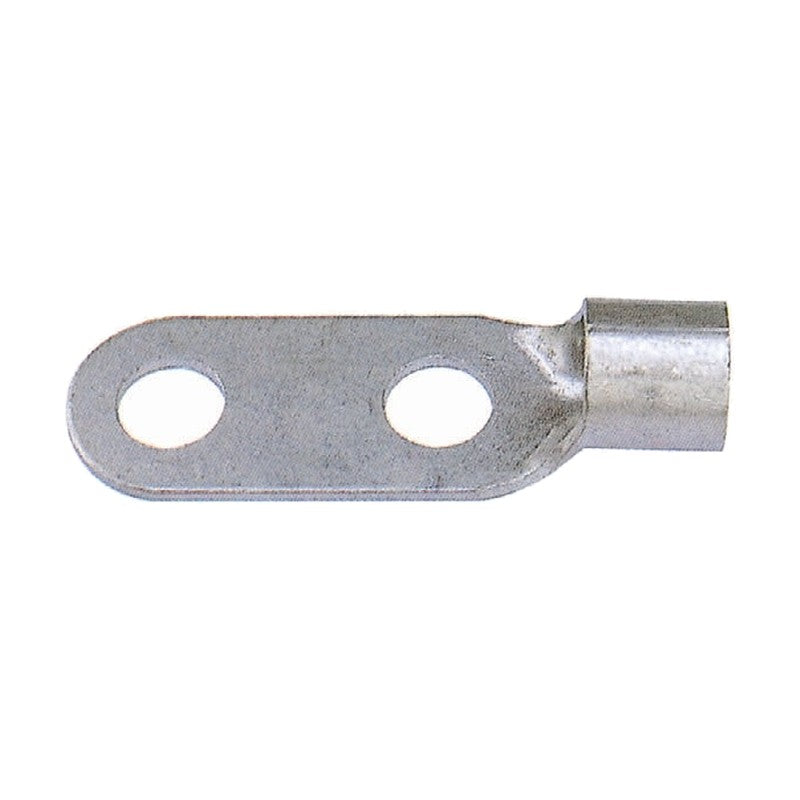

Jeoneo JORD Non-Insulated Two-Hole Ring Terminals

Jeoneo JORD Non-Insulated Two-Hole Ring Terminals

Non-insulated two-hole copper ring terminals (Type RD) for large stranded copper conductors from 50 to 300 mm².

Key features

  • Two bolt holes prevent rotation of the connection
  • Oxygen-free copper, tin plated, brazed seam

Specifications

Material Oxygen-free copper
Surface Tin plated
Barrel Brazed seam
Holes 2
Jeoneo JORD Non-Insulated Two-Hole Ring Terminals
JORD 50-10 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 22, L 82, E 17.5, d 11.4, t 1.8, A 32
JORD 50-12 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 22, L 90, E 17.5, d 11.4, t 1.8, A 40
JORD 50-14 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 14 | Pack qty: 50 | Dimensions (mm): B 32, L 98, E 17.5, d 11.4, t 1.8, A 40
JORD 95-10 Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 10 | Pack qty: 40 | Dimensions (mm): B 27, L 86, E 18.5, d 14.5, t 2.3, A 32
JORD 95-12 Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 12 | Pack qty: 40 | Dimensions (mm): B 27, L 95.5, E 18.5, d 14.5, t 2.3, A 40
JORD 95-14 Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 14 | Pack qty: 40 | Dimensions (mm): B 32, L 95.5, E 18.5, d 14.5, t 2.3, A 40
JORD 120-10 Wire range: 250kcmil / 120 mm² | Stud size (mm): 10 | Pack qty: 30 | Dimensions (mm): B 32.5, L 88, E 18.5, d 18.0, t 3.2, A 32
JORD 120-12 Wire range: 250kcmil / 120 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 32.5, L 96, E 18.5, d 18.0, t 3.2, A 40
JORD 120-14 Wire range: 250kcmil / 120 mm² | Stud size (mm): 14 | Pack qty: 30 | Dimensions (mm): B 32.5, L 100, E 18.5, d 18.0, t 3.2, A 40
JORD 150-12 Wire range: 300kcmil / 150 mm² | Stud size (mm): 12 | Pack qty: 25 | Dimensions (mm): B 36, L 106, E 26, d 19.5, t 3.2, A 40
JORD 150-14 Wire range: 300kcmil / 150 mm² | Stud size (mm): 14 | Pack qty: 25 | Dimensions (mm): B 36, L 106, E 26, d 19.5, t 3.2, A 40
JORD 240-12 Wire range: 400~500 kcmil / 240 mm² | Stud size (mm): 12 | Pack qty: 20 | Dimensions (mm): B 44, L 117, E 30.5, d 24.0, t 3.9, A 40
JORD 240-14 Wire range: 400~500 kcmil / 240 mm² | Stud size (mm): 14 | Pack qty: 20 | Dimensions (mm): B 44, L 117, E 30.5, d 24.0, t 3.9, A 40
JORD 300-12 Wire range: 600kcmil / 300 mm² | Stud size (mm): 12 | Pack qty: 10 | Dimensions (mm): B 50.5, L 124, E 34.5, d 28.0, t 4.2, A 40
JORD 300-14 Wire range: 600kcmil / 300 mm² | Stud size (mm): 14 | Pack qty: 10 | Dimensions (mm): B 50.5, L 124, E 34.5, d 28.0, t 4.2, A 40
Ring TerminalsJeoneo
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JORD Non-Insulated Two-Hole Ring Terminals

Brand Jeoneo·Ring Terminals

Available part numbers (15)

JORD 50-10, JORD 50-12, JORD 50-14, JORD 95-10, JORD 95-12, JORD 95-14, JORD 120-10, JORD 120-12, JORD 120-14, JORD 150-12 + 5 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JORD Non-Insulated Two-Hole Ring Terminals
0 selected
RFQ List (0)
Product codeSpec
JORD 50-10Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 22, L 82, E 17.5, d 11.4, t 1.8, A 32
JORD 50-12Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 22, L 90, E 17.5, d 11.4, t 1.8, A 40
JORD 50-14Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 14 | Pack qty: 50 | Dimensions (mm): B 32, L 98, E 17.5, d 11.4, t 1.8, A 40
JORD 95-10Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 10 | Pack qty: 40 | Dimensions (mm): B 27, L 86, E 18.5, d 14.5, t 2.3, A 32
JORD 95-12Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 12 | Pack qty: 40 | Dimensions (mm): B 27, L 95.5, E 18.5, d 14.5, t 2.3, A 40
JORD 95-14Wire range: 3/0 AWG / 95 mm² | Stud size (mm): 14 | Pack qty: 40 | Dimensions (mm): B 32, L 95.5, E 18.5, d 14.5, t 2.3, A 40
JORD 120-10Wire range: 250kcmil / 120 mm² | Stud size (mm): 10 | Pack qty: 30 | Dimensions (mm): B 32.5, L 88, E 18.5, d 18.0, t 3.2, A 32
JORD 120-12Wire range: 250kcmil / 120 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 32.5, L 96, E 18.5, d 18.0, t 3.2, A 40
JORD 120-14Wire range: 250kcmil / 120 mm² | Stud size (mm): 14 | Pack qty: 30 | Dimensions (mm): B 32.5, L 100, E 18.5, d 18.0, t 3.2, A 40
JORD 150-12Wire range: 300kcmil / 150 mm² | Stud size (mm): 12 | Pack qty: 25 | Dimensions (mm): B 36, L 106, E 26, d 19.5, t 3.2, A 40
JORD 150-14Wire range: 300kcmil / 150 mm² | Stud size (mm): 14 | Pack qty: 25 | Dimensions (mm): B 36, L 106, E 26, d 19.5, t 3.2, A 40
JORD 240-12Wire range: 400~500 kcmil / 240 mm² | Stud size (mm): 12 | Pack qty: 20 | Dimensions (mm): B 44, L 117, E 30.5, d 24.0, t 3.9, A 40
JORD 240-14Wire range: 400~500 kcmil / 240 mm² | Stud size (mm): 14 | Pack qty: 20 | Dimensions (mm): B 44, L 117, E 30.5, d 24.0, t 3.9, A 40
JORD 300-12Wire range: 600kcmil / 300 mm² | Stud size (mm): 12 | Pack qty: 10 | Dimensions (mm): B 50.5, L 124, E 34.5, d 28.0, t 4.2, A 40
JORD 300-14Wire range: 600kcmil / 300 mm² | Stud size (mm): 14 | Pack qty: 10 | Dimensions (mm): B 50.5, L 124, E 34.5, d 28.0, t 4.2, A 40
