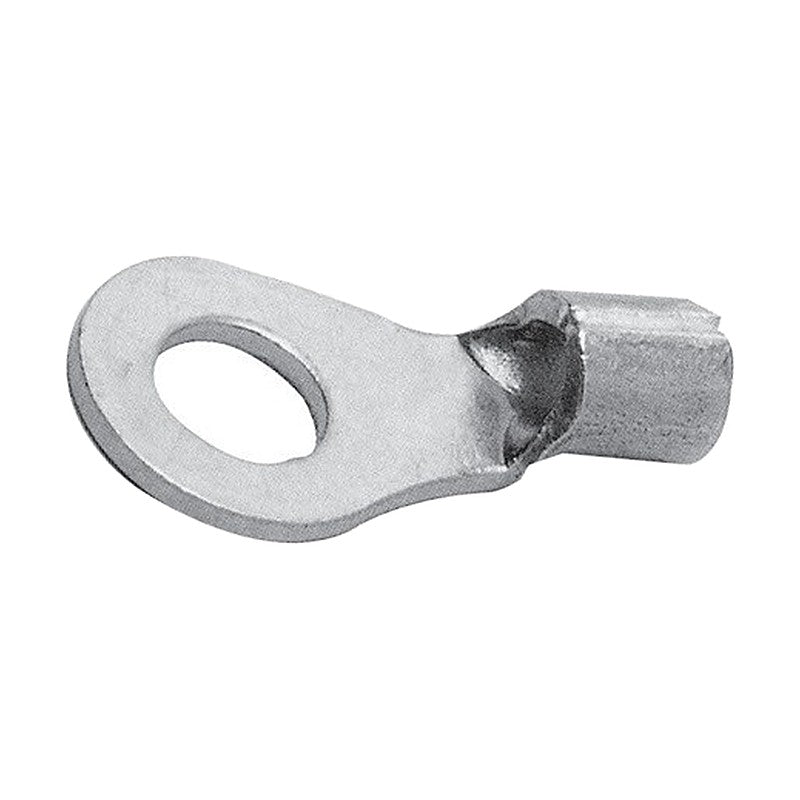

Jeoneo JOT Non-Insulated Ring Terminals, Electrolytic Copper

Jeoneo JOT Non-Insulated Ring Terminals, Electrolytic Copper

Non-insulated tin-plated electrolytic copper ring terminals (Type JOT(R)) for 0.75 to 500 mm² wire, with or without brazed seam.

Key features

  • Electrolytic copper, tin plated
  • Supplied with or without brazed seam

Specifications

Material Electrolytic copper
Surface Tin plated
JOT 1.0-4 Wire range: 26~22 AWG / 1.0 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 6.1, L 13.7, E 4.0, d 1.7, t 0.65
JOT 1.5-33 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.4, L 11.3, E 5.0, d 2.0, t 0.65
JOT 1.5-M3 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 14.0, E 5.0, d 2.0, t 0.65
JOT 1.5-44 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 6.1, L 13.8, E 5.0, d 2.0, t 0.65
JOT 1.5-M4 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 5.8, L 14.8, E 5.0, d 2.0, t 0.65
JOT 1.5-54 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.8, E 5.0, d 2.0, t 0.65
JOT 1.5-6 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 6 | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 20.8, E 5.0, d 2.0, t 0.65
JOT 1.5-8 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 8 | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 21.2, E 5.0, d 2.0, t 0.65
JOT 1.5-10 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 10 | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 22.5, E 5.0, d 2.0, t 0.65
JOT 1.5-12 Wire range: 20~16 AWG / 1.5 mm² | Stud size (mm): 12 | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 26.0, E 5.0, d 2.0, t 0.65
JOT 2.5-M3 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 3 | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 16.0, E 5.0, d 2.4, t 0.65
JOT 2.5-4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 6.5, L 15.0, E 5.0, d 2.4, t 0.65
JOT 2.5-M4 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 6.0, L 16.0, E 5.0, d 2.4, t 0.65
JOT 2.5-54 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.0, L 15.9, E 5.0, d 2.4, t 0.65
JOT 2.5-6 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 6 | Pack qty: 1,000 | Dimensions (mm): B 9.4, L 17.5, E 5.0, d 2.4, t 0.65
JOT 2.5-8 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 8 | Pack qty: 1,000 | Dimensions (mm): B 11.5, L 21.6, E 5.0, d 2.4, t 0.65
JOT 2.5-10 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 10 | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 22.5, E 5.0, d 2.4, t 0.65
JOT 2.5-12 Wire range: 16~14 AWG / 2.5 mm² | Stud size (mm): 12 | Pack qty: 1,000 | Dimensions (mm): B 17.0, L 22.8, E 5.0, d 2.4, t 0.65
JOT 4-M4 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 6.7, L 17.8, E 6.8, d 3.0, t 0.75
JOT 4-54 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 8.3, L 17.5, E 6.8, d 3.0, t 0.75
JOT 4-6 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 6 | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 23.0, E 6.8, d 3.0, t 0.8
JOT 4-8 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 8 | Pack qty: 1,000 | Dimensions (mm): B 11.4, L 23.0, E 6.8, d 3.0, t 0.8
JOT 4-10 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 10 | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 23.5, E 6.8, d 3.0, t 0.8
JOT 4-12 Wire range: 14~12 AWG / 4 mm² | Stud size (mm): 12 | Pack qty: 1,000 | Dimensions (mm): B 16.0, L 25.2, E 6.8, d 3.0, t 0.8
JOT 6-M4 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 4 | Pack qty: 1,000 | Dimensions (mm): B 7.0, L 18.0, E 7.0, d 3.4, t 0.8
JOT 6-54 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 5 | Pack qty: 1,000 | Dimensions (mm): B 9.0, L 19.0, E 7.0, d 3.4, t 0.8
JOT 6-6 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 6 | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 23.0, E 7.0, d 3.4, t 0.8
JOT 6-8 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 8 | Pack qty: 1,000 | Dimensions (mm): B 12.4, L 23.0, E 7.0, d 3.4, t 0.8
JOT 6-10 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 10 | Pack qty: 1,000 | Dimensions (mm): B 14.0, L 24.0, E 7.0, d 3.4, t 0.8
JOT 6-12 Wire range: 12~10 AWG / 6 mm² | Stud size (mm): 12 | Pack qty: 1,000 | Dimensions (mm): B 16.0, L 25.5, E 7.0, d 3.4, t 0.8
JOT 10-M4 Wire range: 8 AWG / 10 mm² | Stud size (mm): 4 | Pack qty: 500 | Dimensions (mm): B 9.0, L 24.0, E 8.5, d 4.8, t 0.9
JOT 10-M5 Wire range: 8 AWG / 10 mm² | Stud size (mm): 5 | Pack qty: 500 | Dimensions (mm): B 9.0, L 24.0, E 8.5, d 4.8, t 0.9
JOT 10-6 Wire range: 8 AWG / 10 mm² | Stud size (mm): 6 | Pack qty: 500 | Dimensions (mm): B 11.8, L 23.6, E 8.5, d 4.8, t 0.9
JOT 10-8 Wire range: 8 AWG / 10 mm² | Stud size (mm): 8 | Pack qty: 500 | Dimensions (mm): B 15.0, L 29.0, E 8.5, d 4.8, t 0.9
JOT 10-10 Wire range: 8 AWG / 10 mm² | Stud size (mm): 10 | Pack qty: 500 | Dimensions (mm): B 15.0, L 29.0, E 8.5, d 4.8, t 0.9
JOT 10-12 Wire range: 8 AWG / 10 mm² | Stud size (mm): 12 | Pack qty: 500 | Dimensions (mm): B 20.0, L 35.0, E 8.5, d 4.8, t 0.9
JOT 10-16 Wire range: 8 AWG / 10 mm² | Stud size (mm): 16 | Pack qty: 500 | Dimensions (mm): B 20.0, L 35.0, E 8.5, d 4.8, t 0.9
JOT 16-5 Wire range: 6 AWG / 16 mm² | Stud size (mm): 5 | Pack qty: 300 | Dimensions (mm): B 12.0, L 29.0, E 11.0, d 6.8, t 1.1
JOT 16-6 Wire range: 6 AWG / 16 mm² | Stud size (mm): 6 | Pack qty: 300 | Dimensions (mm): B 12.0, L 29.0, E 11.0, d 6.8, t 1.1
JOT 16-8 Wire range: 6 AWG / 16 mm² | Stud size (mm): 8 | Pack qty: 300 | Dimensions (mm): B 16.0, L 30.0, E 11.0, d 6.8, t 1.1
JOT 16-10 Wire range: 6 AWG / 16 mm² | Stud size (mm): 10 | Pack qty: 300 | Dimensions (mm): B 16.0, L 30.0, E 11.0, d 6.8, t 1.1
JOT 16-12 Wire range: 6 AWG / 16 mm² | Stud size (mm): 12 | Pack qty: 300 | Dimensions (mm): B 22.0, L 40.0, E 11.0, d 6.8, t 1.1
JOT 16-16 Wire range: 6 AWG / 16 mm² | Stud size (mm): 16 | Pack qty: 300 | Dimensions (mm): B 22.0, L 40.0, E 11.0, d 6.8, t 1.1
JOT 25-5 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 5 | Pack qty: 300 | Dimensions (mm): B 12.0, L 33.0, E 12.0, d 8.6, t 1.2
JOT 25-6 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 6 | Pack qty: 300 | Dimensions (mm): B 12.0, L 33.0, E 12.0, d 8.6, t 1.2
JOT 25-8 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 8 | Pack qty: 300 | Dimensions (mm): B 16.0, L 34.0, E 12.0, d 8.6, t 1.2
JOT 25-10 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 10 | Pack qty: 300 | Dimensions (mm): B 16.0, L 34.0, E 12.0, d 8.6, t 1.2
JOT 25-12 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 12 | Pack qty: 300 | Dimensions (mm): B 22.0, L 42.5, E 12.0, d 8.6, t 1.2
JOT 25-16 Wire range: 3~4 AWG / 25 mm² | Stud size (mm): 16 | Pack qty: 300 | Dimensions (mm): B 22.0, L 42.5, E 12.0, d 8.6, t 1.2
JOT 35-6 Wire range: 2 AWG / 35 mm² | Stud size (mm): 6 | Pack qty: 200 | Dimensions (mm): B 15.0, L 36.0, E 14.0, d 9.7, t 1.4
JOT 35-8 Wire range: 2 AWG / 35 mm² | Stud size (mm): 8 | Pack qty: 200 | Dimensions (mm): B 15.0, L 36.0, E 14.0, d 9.7, t 1.4
JOT 35-10 Wire range: 2 AWG / 35 mm² | Stud size (mm): 10 | Pack qty: 200 | Dimensions (mm): B 17.8, L 40.4, E 14.0, d 9.7, t 1.4
JOT 35-12 Wire range: 2 AWG / 35 mm² | Stud size (mm): 12 | Pack qty: 200 | Dimensions (mm): B 22.0, L 43.0, E 14.0, d 9.7, t 1.4
JOT 35-16 Wire range: 2 AWG / 35 mm² | Stud size (mm): 16 | Pack qty: 200 | Dimensions (mm): B 22.0, L 43.0, E 14.0, d 9.7, t 1.4
JOT 50-6 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 6 | Pack qty: 100 | Dimensions (mm): B 20.0, L 44.0, E 17.5, d 11.8, t 1.6
JOT 50-8 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 20.0, L 44.0, E 17.5, d 11.8, t 1.6
JOT 50-10 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 20.0, L 44.0, E 17.5, d 11.8, t 1.6
JOT 50-12 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 12 | Pack qty: 100 | Dimensions (mm): B 20.0, L 44.0, E 17.5, d 11.8, t 1.6
JOT 50-16 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 16 | Pack qty: 100 | Dimensions (mm): B 31.0, L 56.0, E 17.5, d 11.8, t 1.6
JOT 50-20 Wire range: 1~1/0 AWG / 50 mm² | Stud size (mm): 20 | Pack qty: 100 | Dimensions (mm): B 31.0, L 56.0, E 17.5, d 11.8, t 1.6
JOT 70-8 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 8 | Pack qty: 100 | Dimensions (mm): B 23.0, L 49.5, E 19.5, d 14.4, t 1.8
JOT 70-10 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 10 | Pack qty: 100 | Dimensions (mm): B 23.0, L 49.5, E 19.5, d 14.4, t 1.8
JOT 70-12 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 12 | Pack qty: 100 | Dimensions (mm): B 23.0, L 49.5, E 19.5, d 14.4, t 1.8
JOT 70-16 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 16 | Pack qty: 50 | Dimensions (mm): B 31.0, L 66.0, E 19.5, d 14.4, t 1.8
JOT 70-20 Wire range: 2/0 AWG / 70 mm² | Stud size (mm): 20 | Pack qty: 50 | Dimensions (mm): B 31.0, L 66.0, E 19.5, d 14.4, t 1.8
JOT 95-8 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 8 | Pack qty: 50 | Dimensions (mm): B 24.0, L 50.0, E 21.0, d 16.0, t 2.0
JOT 95-10 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 24.0, L 50.0, E 21.0, d 16.0, t 2.0
JOT 95-12 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 24.0, L 50.0, E 21.0, d 16.0, t 2.0
JOT 95-16 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 16 | Pack qty: 50 | Dimensions (mm): B 31.0, L 67.0, E 21.0, d 16.0, t 2.0
JOT 95-20 Wire range: 3/0~4/0 AWG / 95 mm² | Stud size (mm): 20 | Pack qty: 50 | Dimensions (mm): B 31.0, L 67.0, E 21.0, d 16.0, t 2.0
JOT 120-8 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 8 | Pack qty: 50 | Dimensions (mm): B 27.0, L 56.0, E 22.0, d 17.0, t 2.2
JOT 120-10 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 10 | Pack qty: 50 | Dimensions (mm): B 27.0, L 56.0, E 22.0, d 17.0, t 2.2
JOT 120-12 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 12 | Pack qty: 50 | Dimensions (mm): B 27.0, L 56.0, E 22.0, d 17.0, t 2.2
JOT 120-16 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 16 | Pack qty: 50 | Dimensions (mm): B 27.0, L 56.0, E 22.0, d 17.0, t 2.2
JOT 120-20 Wire range: 250Kcmil / 120 mm² | Stud size (mm): 20 | Pack qty: 50 | Dimensions (mm): B 27.0, L 56.0, E 22.0, d 17.0, t 2.2
JOT 150-8 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 8 | Pack qty: 30 | Dimensions (mm): B 36.0, L 66.0, E 27.5, d 20.2, t 2.4
JOT 150-10 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 10 | Pack qty: 30 | Dimensions (mm): B 36.0, L 66.0, E 27.5, d 20.2, t 2.4
JOT 150-12 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 36.0, L 66.0, E 27.5, d 20.2, t 2.4
JOT 150-16 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 36.0, L 66.0, E 27.5, d 20.2, t 2.4
JOT 150-20 Wire range: 300Kcmil / 150 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 36.0, L 66.0, E 27.5, d 20.2, t 2.4
JOT 185-10 Wire range: 350 Kcmil / 185 mm² | Stud size (mm): 10 | Pack qty: 30 | Dimensions (mm): B 36.0, L 70.0, E 31.0, d 22.1, t 2.7
JOT 185-12 Wire range: 350 Kcmil / 185 mm² | Stud size (mm): 12 | Pack qty: 30 | Dimensions (mm): B 36.0, L 70.0, E 31.0, d 22.1, t 2.7
JOT 185-16 Wire range: 350 Kcmil / 185 mm² | Stud size (mm): 16 | Pack qty: 30 | Dimensions (mm): B 36.0, L 70.0, E 31.0, d 22.1, t 2.7
JOT 185-20 Wire range: 350 Kcmil / 185 mm² | Stud size (mm): 20 | Pack qty: 30 | Dimensions (mm): B 36.0, L 70.0, E 31.0, d 22.1, t 2.7
JOT 240-10 Wire range: 500Kcmil / 240 mm² | Stud size (mm): 10 | Pack qty: 25 | Dimensions (mm): B 36.0, L 71.0, E 32.5, d 25.0, t 3.0
JOT 240-12 Wire range: 500Kcmil / 240 mm² | Stud size (mm): 12 | Pack qty: 25 | Dimensions (mm): B 36.0, L 71.0, E 32.5, d 25.0, t 3.0
JOT 240-16 Wire range: 500Kcmil / 240 mm² | Stud size (mm): 16 | Pack qty: 25 | Dimensions (mm): B 36.0, L 71.0, E 32.5, d 25.0, t 3.0
JOT 240-20 Wire range: 500Kcmil / 240 mm² | Stud size (mm): 20 | Pack qty: 25 | Dimensions (mm): B 36.0, L 71.0, E 32.5, d 25.0, t 3.0
JOT 300-10 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 10 | Pack qty: 16 | Dimensions (mm): B 51.0, L 88.0, E 38.0, d 27.6, t 3.7
JOT 300-12 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 12 | Pack qty: 16 | Dimensions (mm): B 51.0, L 88.0, E 38.0, d 27.6, t 3.7
JOT 300-16 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 16 | Pack qty: 16 | Dimensions (mm): B 51.0, L 88.0, E 38.0, d 27.6, t 3.7
JOT 300-20 Wire range: 600Kcmil / 300 mm² | Stud size (mm): 20 | Pack qty: 16 | Dimensions (mm): B 51.0, L 88.0, E 38.0, d 27.6, t 3.7
JOT 400-16 Wire range: 800Kcmil / 400 mm² | Stud size (mm): 16 | Pack qty: 10 | Dimensions (mm): B 51.0, L 108.0, E 36.0, d 30.0, t 4.0
JOT 400-20 Wire range: 800Kcmil / 400 mm² | Stud size (mm): 20 | Pack qty: 10 | Dimensions (mm): B 51.0, L 108.0, E 36.0, d 30.0, t 4.0
JOT 500-16 Wire range: 1000Kcmil / 500 mm² | Stud size (mm): 16 | Pack qty: 10 | Dimensions (mm): B 61.0, L 124.0, E 47.0, d 36.0, t 4.5
JOT 500-20 Wire range: 1000Kcmil / 500 mm² | Stud size (mm): 20 | Pack qty: 10 | Dimensions (mm): B 61.0, L 124.0, E 47.0, d 36.0, t 4.5
