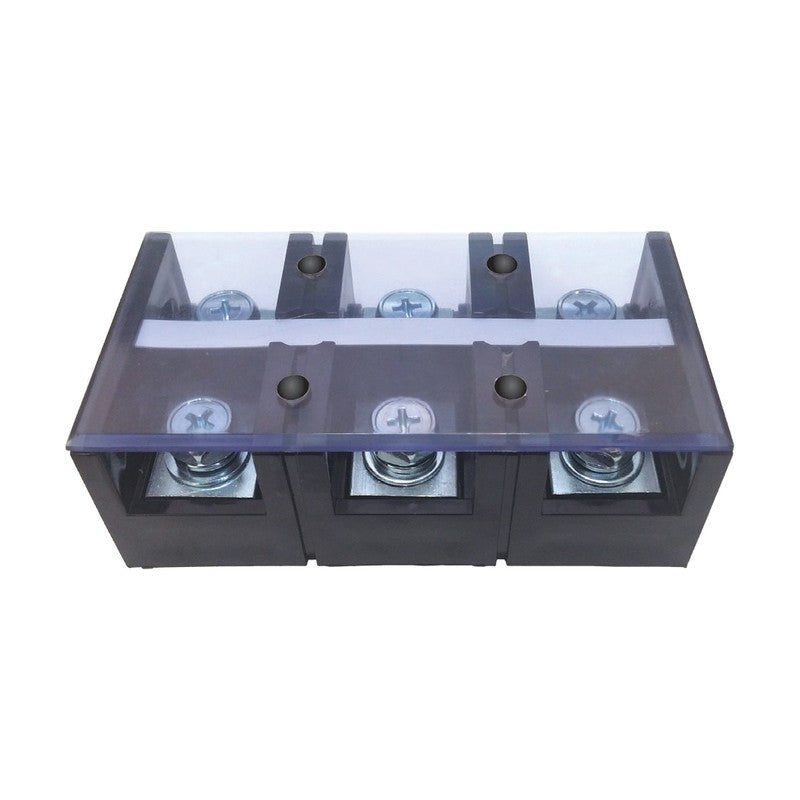

Jeoneo JOTB Fixed Terminal Blocks

Jeoneo JOTB Fixed Terminal Blocks

Fixed (one-piece) polycarbonate terminal blocks with cover, 10 A to 600 A, 3 to 20 poles, rated 600 V.

Key features

  • Body and cover in polycarbonate, UL94 V-0
  • Brass contacts, zinc-chromate plated
  • Withstanding voltage AC 2500 V; insulation resistance 100 MΩ or more

Specifications

Voltage rating 600 V
Body/cover Polycarbonate
Contact Brass, zinc-chromate plated
Flammability UL94 V-0
Withstanding voltage AC 2500 V
Insulation resistance ≥100 MΩ
Jeoneo JOTB Fixed Terminal Blocks
JOTB 10-10 Rating / poles: 10A-10P | Wire range (AWG): #22~#14 | Bolt size: M3 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 91, L2 6.5, C 8.2, L 100, W 26, H 18 | Torque: 5.0 in-lbs (5.8 kg·cm)
JOTB 20-3 Rating / poles: 20A-3P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 42, L2 8.5, C 10.5, L 50.5, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-4 Rating / poles: 20A-4P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 52.5, L2 8.5, C 10.5, L 61, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-6 Rating / poles: 20A-6P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 73, L2 8.5, C 10.5, L 82, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-10 Rating / poles: 20A-10P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 115.5, L2 8.5, C 10.5, L 123.5, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-12 Rating / poles: 20A-12P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 136, L2 8.5, C 10.5, L 145, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-15 Rating / poles: 20A-15P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 168, L2 8.5, C 10.5, L 177, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-20 Rating / poles: 20A-20P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 220, L2 8.5, C 10.5, L 230, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-3 Rating / poles: 30A-3P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 48, L2 10, C 12.8, L 56.5, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-4 Rating / poles: 30A-4P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 58.5, L2 10, C 12.8, L 69, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-6 Rating / poles: 30A-6P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 85, L2 10, C 12.8, L 94, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-10 Rating / poles: 30A-10P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 136, L2 10, C 12.8, L 144, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-12 Rating / poles: 30A-12P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 161, L2 10, C 12.8, L 170, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 45-10 Rating / poles: 45A-10P | Wire range (AWG): #18~#8 | Bolt size: M5 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 163.5, L2 12, C 15.2, L 172, W 38, H 27 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 60-3 Rating / poles: 60A-3P | Wire range (AWG): #18~#6 | Bolt size: M6 | Fixing bolt hole (mm): 5.5 | Pack qty (box): 20 | Dimensions (mm): L1 28, L2 18, C 28, L 82, W 40, H 34 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 60-4 Rating / poles: 60A-4P | Wire range (AWG): #18~#6 | Bolt size: M6 | Fixing bolt hole (mm): 5.5 | Pack qty (box): 20 | Dimensions (mm): L1 56, L2 18, C 28, L 108, W 40, H 34 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 100-3 Rating / poles: 100A-3P | Wire range (AWG): #14~#4 | Bolt size: M8 | Fixing bolt hole (mm): 6.5 | Pack qty (box): 10 | Dimensions (mm): L1 35, L2 24, C 36, L 104, W 55, H 41 | Torque: 63.7 in-lbs (73.5 kg·cm)
JOTB 100-4 Rating / poles: 100A-4P | Wire range (AWG): #14~#4 | Bolt size: M8 | Fixing bolt hole (mm): 6.5 | Pack qty (box): 10 | Dimensions (mm): L1 70, L2 24, C 36, L 137, W 55, H 41 | Torque: 63.7 in-lbs (73.5 kg·cm)
JOTB 150-3 Rating / poles: 150A-3P | Wire range (AWG): #10~1/0 | Bolt size: M8 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 38, L2 25, C 38, L 112, W 66, H 43 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 150-4 Rating / poles: 150A-4P | Wire range (AWG): #10~1/0 | Bolt size: M8 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 76, L2 25, C 38, L 149, W 66, H 43 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 200-3 Rating / poles: 200A-3P | Wire range (AWG): #10~3/0 | Bolt size: M9 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 45, L2 30.5, C 45, L 130, W 73, H 48 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 200-4 Rating / poles: 200A-4P | Wire range (AWG): #10~3/0 | Bolt size: M9 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 89, L2 30.5, C 45, L 174, W 73, H 48 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 300-3 Rating / poles: 300A-3P | Wire range (AWG): #10~350kcmil | Bolt size: M10 | Fixing bolt hole (mm): 7 | Pack qty (box): 5 | Dimensions (mm): L1 51.5, L2 34, C 52, L 151, W 80, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 300-4 Rating / poles: 300A-4P | Wire range (AWG): #10~350kcmil | Bolt size: M10 | Fixing bolt hole (mm): 7 | Pack qty (box): 5 | Dimensions (mm): L1 103, L2 34, C 52, L 203, W 80, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 400-3 Rating / poles: 400A-3P | Wire range (AWG): #10~600kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 55, L2 37, C 55, L 163, W 90, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 400-4 Rating / poles: 400A-4P | Wire range (AWG): #10~600kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 110, L2 37, C 55, L 218, W 90, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 600-3 Rating / poles: 600A-3P | Wire range (AWG): #10~1000kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 65.5, L2 46, C 65.5, L 194, W 97, H 63 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 600-4 Rating / poles: 600A-4P | Wire range (AWG): #10~1000kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 131.5, L2 46, C 65.5, L 259, W 97, H 63 | Torque: 132.0 in-lbs (152.2 kg·cm)
Terminal BlocksJeoneo
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOTB Fixed Terminal Blocks

Brand Jeoneo·Terminal Blocks

Available part numbers (28)

JOTB 10-10, JOTB 20-3, JOTB 20-4, JOTB 20-6, JOTB 20-10, JOTB 20-12, JOTB 20-15, JOTB 20-20, JOTB 30-3, JOTB 30-4 + 18 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOTB Fixed Terminal Blocks
0 selected
RFQ List (0)
Product codeSpec
JOTB 10-10Rating / poles: 10A-10P | Wire range (AWG): #22~#14 | Bolt size: M3 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 91, L2 6.5, C 8.2, L 100, W 26, H 18 | Torque: 5.0 in-lbs (5.8 kg·cm)
JOTB 20-3Rating / poles: 20A-3P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 42, L2 8.5, C 10.5, L 50.5, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-4Rating / poles: 20A-4P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 52.5, L2 8.5, C 10.5, L 61, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-6Rating / poles: 20A-6P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 73, L2 8.5, C 10.5, L 82, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-10Rating / poles: 20A-10P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 115.5, L2 8.5, C 10.5, L 123.5, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-12Rating / poles: 20A-12P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 136, L2 8.5, C 10.5, L 145, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-15Rating / poles: 20A-15P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 168, L2 8.5, C 10.5, L 177, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 20-20Rating / poles: 20A-20P | Wire range (AWG): #22~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 220, L2 8.5, C 10.5, L 230, W 30, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-3Rating / poles: 30A-3P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 48, L2 10, C 12.8, L 56.5, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-4Rating / poles: 30A-4P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 58.5, L2 10, C 12.8, L 69, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-6Rating / poles: 30A-6P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 85, L2 10, C 12.8, L 94, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-10Rating / poles: 30A-10P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 136, L2 10, C 12.8, L 144, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 30-12Rating / poles: 30A-12P | Wire range (AWG): #18~#10 | Bolt size: M4 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 161, L2 10, C 12.8, L 170, W 32, H 22 | Torque: 26.0 in-lbs (30.0 kg·cm)
JOTB 45-10Rating / poles: 45A-10P | Wire range (AWG): #18~#8 | Bolt size: M5 | Fixing bolt hole (mm): 4.5 | Pack qty (box): 20 | Dimensions (mm): L1 163.5, L2 12, C 15.2, L 172, W 38, H 27 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 60-3Rating / poles: 60A-3P | Wire range (AWG): #18~#6 | Bolt size: M6 | Fixing bolt hole (mm): 5.5 | Pack qty (box): 20 | Dimensions (mm): L1 28, L2 18, C 28, L 82, W 40, H 34 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 60-4Rating / poles: 60A-4P | Wire range (AWG): #18~#6 | Bolt size: M6 | Fixing bolt hole (mm): 5.5 | Pack qty (box): 20 | Dimensions (mm): L1 56, L2 18, C 28, L 108, W 40, H 34 | Torque: 35.0 in-lbs (40.3 kg·cm)
JOTB 100-3Rating / poles: 100A-3P | Wire range (AWG): #14~#4 | Bolt size: M8 | Fixing bolt hole (mm): 6.5 | Pack qty (box): 10 | Dimensions (mm): L1 35, L2 24, C 36, L 104, W 55, H 41 | Torque: 63.7 in-lbs (73.5 kg·cm)
JOTB 100-4Rating / poles: 100A-4P | Wire range (AWG): #14~#4 | Bolt size: M8 | Fixing bolt hole (mm): 6.5 | Pack qty (box): 10 | Dimensions (mm): L1 70, L2 24, C 36, L 137, W 55, H 41 | Torque: 63.7 in-lbs (73.5 kg·cm)
JOTB 150-3Rating / poles: 150A-3P | Wire range (AWG): #10~1/0 | Bolt size: M8 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 38, L2 25, C 38, L 112, W 66, H 43 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 150-4Rating / poles: 150A-4P | Wire range (AWG): #10~1/0 | Bolt size: M8 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 76, L2 25, C 38, L 149, W 66, H 43 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 200-3Rating / poles: 200A-3P | Wire range (AWG): #10~3/0 | Bolt size: M9 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 45, L2 30.5, C 45, L 130, W 73, H 48 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 200-4Rating / poles: 200A-4P | Wire range (AWG): #10~3/0 | Bolt size: M9 | Fixing bolt hole (mm): 7 | Pack qty (box): 10 | Dimensions (mm): L1 89, L2 30.5, C 45, L 174, W 73, H 48 | Torque: 88.0 in-lbs (101.4 kg·cm)
JOTB 300-3Rating / poles: 300A-3P | Wire range (AWG): #10~350kcmil | Bolt size: M10 | Fixing bolt hole (mm): 7 | Pack qty (box): 5 | Dimensions (mm): L1 51.5, L2 34, C 52, L 151, W 80, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 300-4Rating / poles: 300A-4P | Wire range (AWG): #10~350kcmil | Bolt size: M10 | Fixing bolt hole (mm): 7 | Pack qty (box): 5 | Dimensions (mm): L1 103, L2 34, C 52, L 203, W 80, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 400-3Rating / poles: 400A-3P | Wire range (AWG): #10~600kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 55, L2 37, C 55, L 163, W 90, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 400-4Rating / poles: 400A-4P | Wire range (AWG): #10~600kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 110, L2 37, C 55, L 218, W 90, H 53 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 600-3Rating / poles: 600A-3P | Wire range (AWG): #10~1000kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 65.5, L2 46, C 65.5, L 194, W 97, H 63 | Torque: 132.0 in-lbs (152.2 kg·cm)
JOTB 600-4Rating / poles: 600A-4P | Wire range (AWG): #10~1000kcmil | Bolt size: M12 | Fixing bolt hole (mm): 7 | Pack qty (box): 1 | Dimensions (mm): L1 131.5, L2 46, C 65.5, L 259, W 97, H 63 | Torque: 132.0 in-lbs (152.2 kg·cm)
