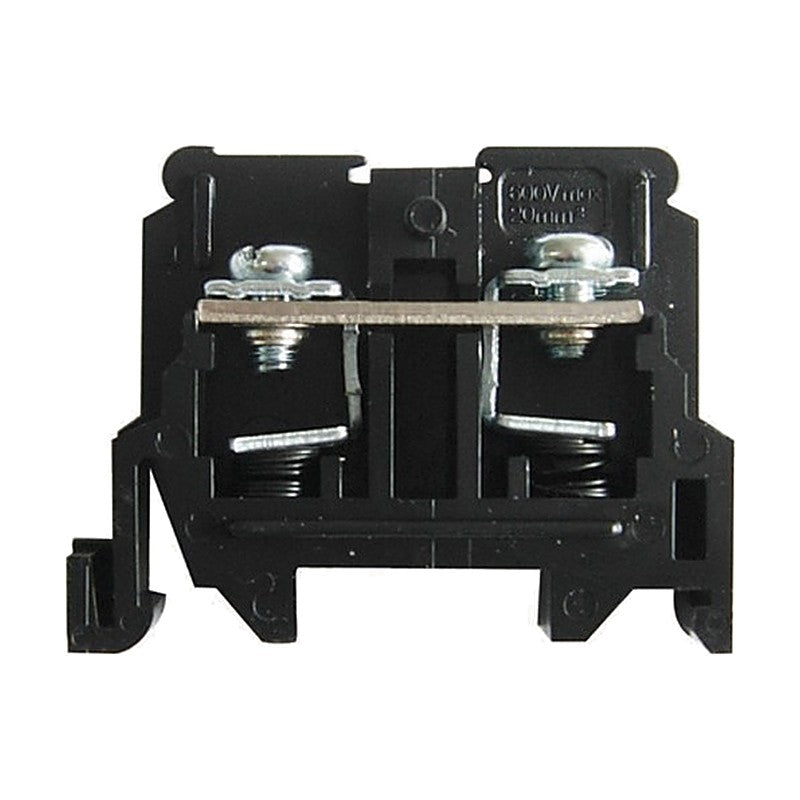

Jeoneo JOTN Modular Terminal Blocks

Jeoneo JOTN Modular Terminal Blocks

Modular rail-mounted terminal blocks (JOTN) rated 600 V from 15 A to 200 A, assembled on channel with separators, name plates, covers and stoppers.

Key features

  • Polycarbonate body, UL94 V-0
  • Nickel-plated brass guide, zinc-plated steel screws and support terminal
  • JOTN 200A is not UL certified

Specifications

Voltage rating 600 V
Body Polycarbonate
Screw Zinc-plated steel
Guide Nickel-plated brass
Spring Steel
Support terminal Zinc-plated steel
Flammability UL94 V-0
Jeoneo JOTN Modular Terminal Blocks
JOTN 15A Current: 15 A | Max. wire size: 2.5 mm² | Bolt size: M3.5 | Torque: 17.0 in-lbs (19.6 kg·cm) | Separator / name plate / cover: JTAN 15 / JTNN 1 / JTCN 1 | Pack qty (box): 200
JOTN 25A Current: 25 A | Max. wire size: 6 mm² | Bolt size: M4 | Torque: 26.0 in-lbs (30.0 kg·cm) | Separator / name plate / cover: JTAN 25 / JTNN 1 / JTCN 1 | Pack qty (box): 160
JOTN 35A Current: 35 A | Max. wire size: 10 mm² | Bolt size: M4 | Torque: 26.0 in-lbs (30.0 kg·cm) | Separator / name plate / cover: JTAN 35 / JTNN 1 / JTCN 1 | Pack qty (box): 140
JOTN 60A Current: 60 A | Max. wire size: 16 mm² | Bolt size: M6 | Torque: 35.0 in-lbs (40.3 kg·cm) | Separator / name plate / cover: JTAN 60 / JTNN 1 / JTCN 2 | Pack qty (box): 112
JOTN 100A Current: 100 A | Max. wire size: 35 mm² | Bolt size: M6 | Torque: 88.0 in-lbs (101.4 kg·cm) | Separator / name plate / cover: JTAN 100 / JTNN 1 / JTCN 2 | Pack qty (box): 72
JOTN 150A Current: 150 A | Max. wire size: 50 mm² | Bolt size: M8 | Torque: 132.0 in-lbs (152.2 kg·cm) | Separator / name plate / cover: - / JTNN 1 / JTCN 3 | Pack qty (box): 32
JOTN 200A Current: 200 A | Max. wire size: 95 mm² | Bolt size: M8 | Torque: 132.0 in-lbs (152.2 kg·cm) | Separator / name plate / cover: - / JTNN 1 / JTCN 3 | Pack qty (box): 24 | UL: Not UL certified
Terminal BlocksJeoneo
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JOTN Modular Terminal Blocks

Brand Jeoneo·Terminal Blocks

Available part numbers (7)

JOTN 15A, JOTN 25A, JOTN 35A, JOTN 60A, JOTN 100A, JOTN 150A, JOTN 200A

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JOTN Modular Terminal Blocks
0 selected
RFQ List (0)
Product codeSpec
JOTN 15ACurrent: 15 A | Max. wire size: 2.5 mm² | Bolt size: M3.5 | Torque: 17.0 in-lbs (19.6 kg·cm) | Separator / name plate / cover: JTAN 15 / JTNN 1 / JTCN 1 | Pack qty (box): 200
JOTN 25ACurrent: 25 A | Max. wire size: 6 mm² | Bolt size: M4 | Torque: 26.0 in-lbs (30.0 kg·cm) | Separator / name plate / cover: JTAN 25 / JTNN 1 / JTCN 1 | Pack qty (box): 160
JOTN 35ACurrent: 35 A | Max. wire size: 10 mm² | Bolt size: M4 | Torque: 26.0 in-lbs (30.0 kg·cm) | Separator / name plate / cover: JTAN 35 / JTNN 1 / JTCN 1 | Pack qty (box): 140
JOTN 60ACurrent: 60 A | Max. wire size: 16 mm² | Bolt size: M6 | Torque: 35.0 in-lbs (40.3 kg·cm) | Separator / name plate / cover: JTAN 60 / JTNN 1 / JTCN 2 | Pack qty (box): 112
JOTN 100ACurrent: 100 A | Max. wire size: 35 mm² | Bolt size: M6 | Torque: 88.0 in-lbs (101.4 kg·cm) | Separator / name plate / cover: JTAN 100 / JTNN 1 / JTCN 2 | Pack qty (box): 72
JOTN 150ACurrent: 150 A | Max. wire size: 50 mm² | Bolt size: M8 | Torque: 132.0 in-lbs (152.2 kg·cm) | Separator / name plate / cover: - / JTNN 1 / JTCN 3 | Pack qty (box): 32
JOTN 200ACurrent: 200 A | Max. wire size: 95 mm² | Bolt size: M8 | Torque: 132.0 in-lbs (152.2 kg·cm) | Separator / name plate / cover: - / JTNN 1 / JTCN 3 | Pack qty (box): 24 | UL: Not UL certified
