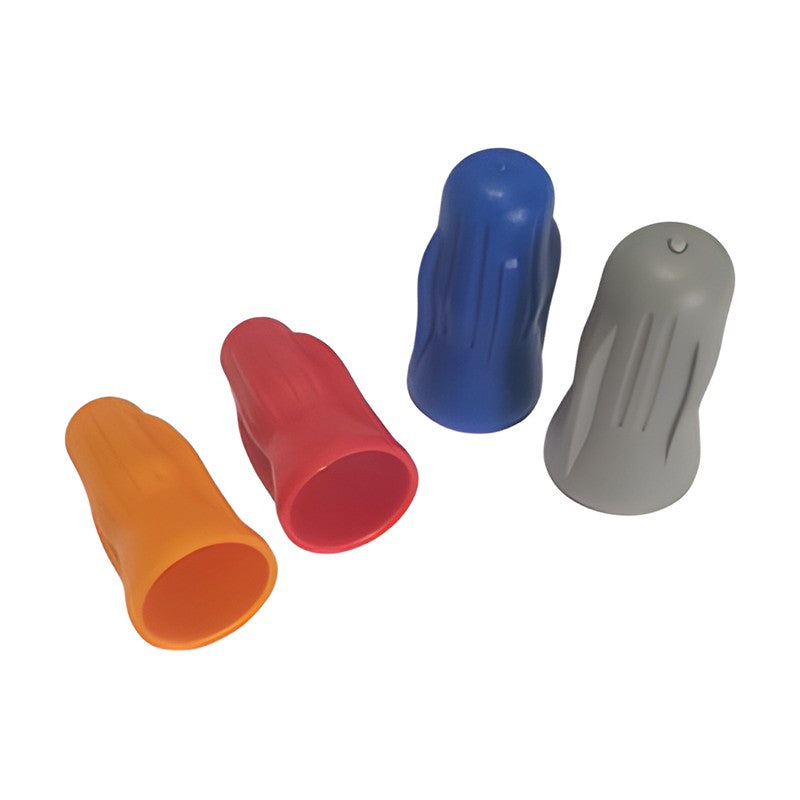

Jeoneo JOWC PVC Screw-On Wire Connectors
Jeoneo JOWC PVC Screw-On Wire Connectors
PVC screw-on (twist-on) wire connectors with steel spring for solid and stranded conductor combinations.
Key features
- Housing PVC, spring steel
- Temperature rating 105 °C
- Rated 600 V max. building wiring, 1,000 V max. signs or luminaires
- Flammability UL94 V-0
Specifications
| Housing | PVC |
|---|---|
| Spring | Steel |
| Temperature rating | 105 °C |
| Flammability | UL94 V-0 |
| Pack qty (bag / carton) | 100, 4,000 |
| JOWC 20 | Wire combinations (AWG): 2 to 4#14, 2 to 3#12, 1#12 w/1 to 2#14, 2#12 w/1#14, | Color: Yellow | |
| JOWC 35 | Wire combinations (AWG): 2 to 4#14, 2 to 3#12, 1#12 w/1 to 3 #14, 2#12 w/1 to 2#14,, 3#12 w/1#14 | Color: Red | |
| JOWC 55 | Wire combinations (AWG): 3 to 5#14, 2 to 4#12, 1#12 w/2 to 4#14, 2#12 w/1 to 3#14, 3#12 w/1#14 | Color: Blue | |
| JOWC 80 | Wire combinations (AWG): 3 to 7#14, 3 to 5#12 Sol., 3 or 4#12 Str., 2#12 w/2 to 3#14, 3#12 w/1 to 2#14, 4#12 w/1#14 | Color: Gray |
Wire ConnectorsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JOWC PVC Screw-On Wire Connectors
Available part numbers (4)
JOWC 20, JOWC 35, JOWC 55, JOWC 80
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Wire Connectors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JOWC 20 | Wire combinations (AWG): 2 to 4#14, 2 to 3#12, 1#12 w/1 to 2#14, 2#12 w/1#14, | Color: Yellow | ||
| JOWC 35 | Wire combinations (AWG): 2 to 4#14, 2 to 3#12, 1#12 w/1 to 3 #14, 2#12 w/1 to 2#14,, 3#12 w/1#14 | Color: Red | ||
| JOWC 55 | Wire combinations (AWG): 3 to 5#14, 2 to 4#12, 1#12 w/2 to 4#14, 2#12 w/1 to 3#14, 3#12 w/1#14 | Color: Blue | ||
| JOWC 80 | Wire combinations (AWG): 3 to 7#14, 3 to 5#12 Sol., 3 or 4#12 Str., 2#12 w/2 to 3#14, 3#12 w/1 to 2#14, 4#12 w/1#14 | Color: Gray |
