• Jeoneo JPGB Metallic Cable Glands, PG Thread
1 1

Jeoneo JPGB Metallic Cable Glands, PG Thread

Jeoneo JPGB Metallic Cable Glands, PG Thread

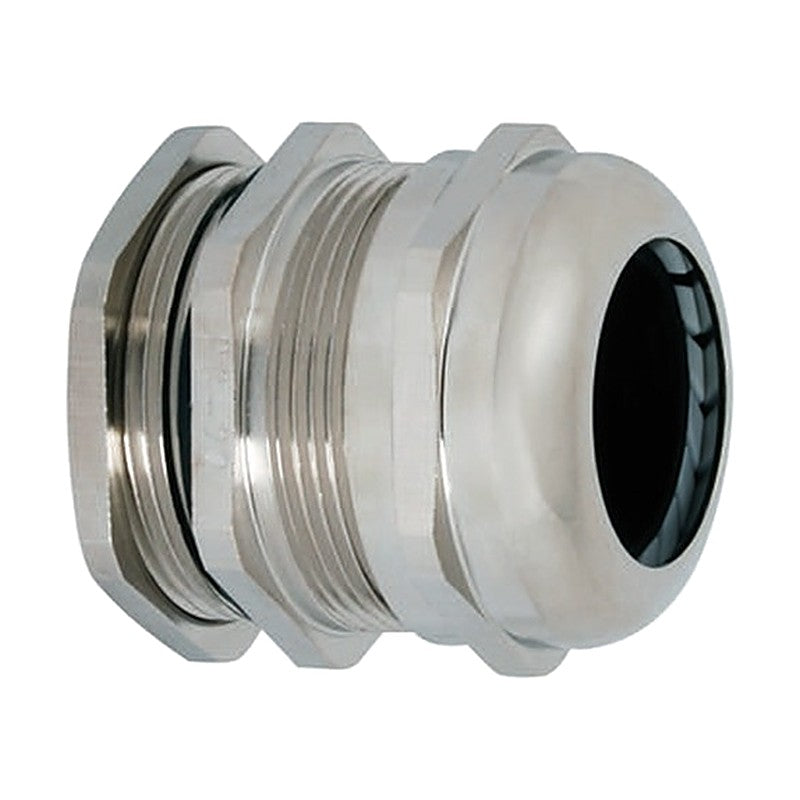

Nickel-plated brass cable glands with PG thread, NBR seals and nylon claw, IP68, for cables from 3 to 52 mm.

Key features

  • IP68 protection

Specifications

Material Nickel-plated brass body/nuts, NBR seal, nylon 66 claw
Working temperature -40 to 100 °C static (120 °C short term)
Protection IP68
Jeoneo JPGB Metallic Cable Glands, PG Thread
JPGB-7 Thread size: PG 7 | Cable range (mm): 3~6.5 | Thread length L1 (mm): 5 | Thread O.D. L2 (mm): 12.5 | Spanner size (mm): 14 | Installation torque (N·m): sealing nut 3.5, lock nut 4.0 | Pack qty: 100
JPGB-9 Thread size: PG 9 | Cable range (mm): 5~9 | Thread length L1 (mm): 6 | Thread O.D. L2 (mm): 15.2 | Spanner size (mm): 17 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
JPGB-11 Thread size: PG 11 | Cable range (mm): 6.5~11 | Thread length L1 (mm): 6 | Thread O.D. L2 (mm): 18.6 | Spanner size (mm): 20 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
JPGB-13.5 Thread size: PG 13.5 | Cable range (mm): 7~13 | Thread length L1 (mm): 6.5 | Thread O.D. L2 (mm): 20.4 | Spanner size (mm): 22 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 50
JPGB-16 Thread size: PG 16 | Cable range (mm): 9~14 | Thread length L1 (mm): 6.5 | Thread O.D. L2 (mm): 22.5 | Spanner size (mm): 24 | Installation torque (N·m): sealing nut 7.5, lock nut 5.0 | Pack qty: 50
JPGB-21 Thread size: PG 21 | Cable range (mm): 11~18 | Thread length L1 (mm): 7 | Thread O.D. L2 (mm): 28.3 | Spanner size (mm): 30 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 40
JPGB-29 Thread size: PG 29 | Cable range (mm): 18~26 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 37 | Spanner size (mm): 40 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
JPGB-36 Thread size: PG 36 | Cable range (mm): 24~33 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 47 | Spanner size (mm): 50 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 10
JPGB-42 Thread size: PG 42 | Cable range (mm): 30~39 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 54 | Spanner size (mm): 57 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 5
JPGB-48 Thread size: PG 48 | Cable range (mm): 34~45 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 59.3 | Spanner size (mm): 66 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 5
JPGB-63 Thread size: PG 63 | Cable range (mm): 42~52 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 70.0 | Spanner size (mm): 76 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 5
Cable GlandsJeoneo
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo JPGB Metallic Cable Glands, PG Thread

Brand Jeoneo·Cable Glands

Available part numbers (11)

JPGB-7, JPGB-9, JPGB-11, JPGB-13.5, JPGB-16, JPGB-21, JPGB-29, JPGB-36, JPGB-42, JPGB-48 + 1 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo JPGB Metallic Cable Glands, PG Thread
0 selected
RFQ List (0)
Product codeSpec
JPGB-7Thread size: PG 7 | Cable range (mm): 3~6.5 | Thread length L1 (mm): 5 | Thread O.D. L2 (mm): 12.5 | Spanner size (mm): 14 | Installation torque (N·m): sealing nut 3.5, lock nut 4.0 | Pack qty: 100
JPGB-9Thread size: PG 9 | Cable range (mm): 5~9 | Thread length L1 (mm): 6 | Thread O.D. L2 (mm): 15.2 | Spanner size (mm): 17 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
JPGB-11Thread size: PG 11 | Cable range (mm): 6.5~11 | Thread length L1 (mm): 6 | Thread O.D. L2 (mm): 18.6 | Spanner size (mm): 20 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 100
JPGB-13.5Thread size: PG 13.5 | Cable range (mm): 7~13 | Thread length L1 (mm): 6.5 | Thread O.D. L2 (mm): 20.4 | Spanner size (mm): 22 | Installation torque (N·m): sealing nut 6.0, lock nut 4.0 | Pack qty: 50
JPGB-16Thread size: PG 16 | Cable range (mm): 9~14 | Thread length L1 (mm): 6.5 | Thread O.D. L2 (mm): 22.5 | Spanner size (mm): 24 | Installation torque (N·m): sealing nut 7.5, lock nut 5.0 | Pack qty: 50
JPGB-21Thread size: PG 21 | Cable range (mm): 11~18 | Thread length L1 (mm): 7 | Thread O.D. L2 (mm): 28.3 | Spanner size (mm): 30 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 40
JPGB-29Thread size: PG 29 | Cable range (mm): 18~26 | Thread length L1 (mm): 8 | Thread O.D. L2 (mm): 37 | Spanner size (mm): 40 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 20
JPGB-36Thread size: PG 36 | Cable range (mm): 24~33 | Thread length L1 (mm): 9 | Thread O.D. L2 (mm): 47 | Spanner size (mm): 50 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 10
JPGB-42Thread size: PG 42 | Cable range (mm): 30~39 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 54 | Spanner size (mm): 57 | Installation torque (N·m): sealing nut 10.0, lock nut 7.0 | Pack qty: 5
JPGB-48Thread size: PG 48 | Cable range (mm): 34~45 | Thread length L1 (mm): 10 | Thread O.D. L2 (mm): 59.3 | Spanner size (mm): 66 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 5
JPGB-63Thread size: PG 63 | Cable range (mm): 42~52 | Thread length L1 (mm): 15 | Thread O.D. L2 (mm): 70.0 | Spanner size (mm): 76 | Installation torque (N·m): sealing nut 12.5, lock nut 7.0 | Pack qty: 5
